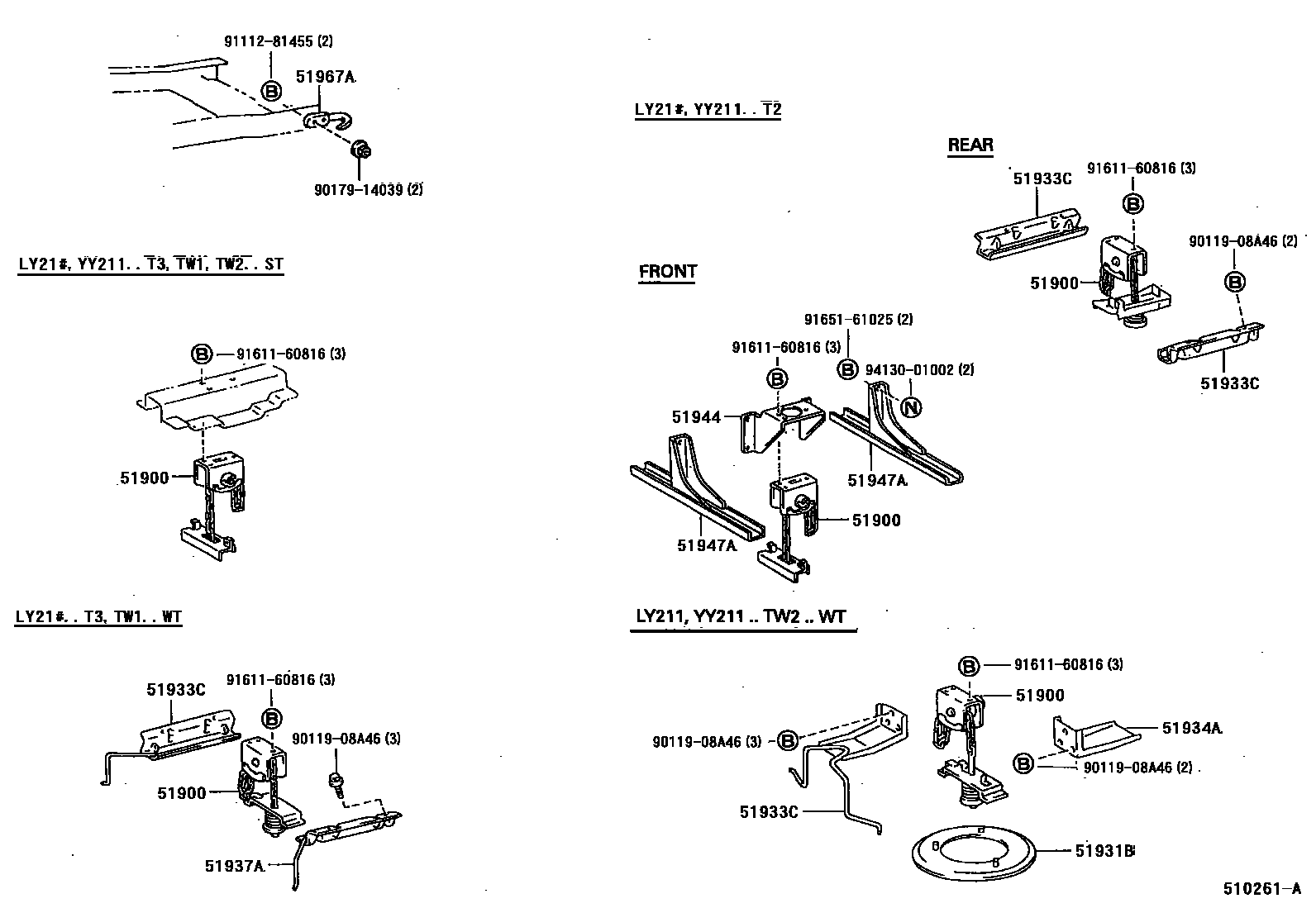

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-25060iLY21#,YY211..T2199505

FR

main51900-25080iLY211,YY211..WT..125199505-199905

main51900-35170iLY21#..WT..EUR199505

RR

51931BPLATE, SPARE WHEEL CARRIER BASE

main51931-25030iLY211,YY211..WT..125199505-199905

51933CSTOPPER, SPARE WHEEL

main51903-25010iLY211,YY211..WT..125199505-199905

main51903-25020iLY21#..WT..EUR199505

main51933-25050iLY21#,YY211..T2199505

51934ASTOPPER, SPARE WHEEL, NO.2

main51934-25020iLY211,YY211..WT..125199505-199905

51937AGUIDE, SPARE WHEEL SUPPORT

main51904-25010iLY21#..WT..EUR199505

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-25050iLY21#,YY211..T2199505

51947APLATE, SPARE WHEEL CARRIER HINGE

main51947-25010iLY21#,YY211..T2199505

51967AHOOK SUB-ASSY, REAR

main51961-36020iLY21#,YY211199505

9011908A46

main90119-08A46

9017914039

main90179-14039

9111281455

main91112-81455

9161160816

main91611-60816

9165161025

main91651-61025

9413001002

main94130-01002

14 parts on this diagram · 1 diagram in section
