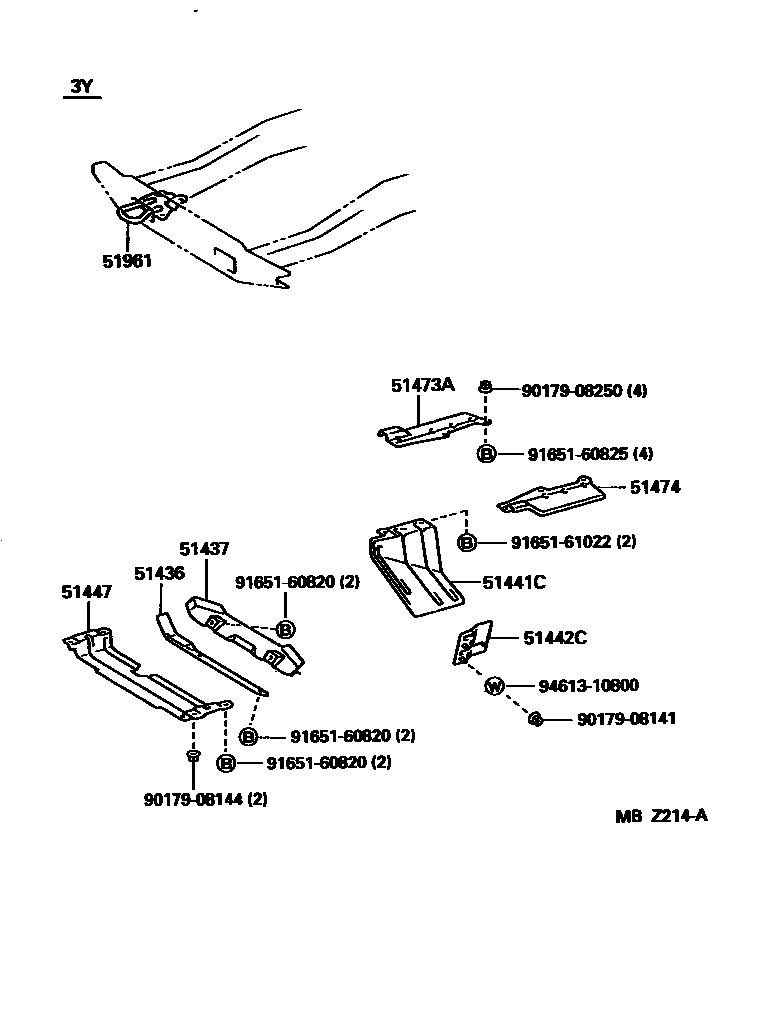

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51436PROTECTOR, ENGINE FRONT SUPPORT

main51436-25010iLY21#,YY211199505

51437BRACKET, ENGINE FRONT SUPPORT, LOWER RH

main51437-25010iLY21#,YY211199505-199905

sub51437-25011

main51437-25011iLY21#,YY211199905

51441CCOVER, ENGINE UNDER, RH

main51406-25040iLY21#..ARL,EUR199505-199905

sub51406-25041

main51406-25041iLY21#..ARL,EUR199905

main51441-25130iYY211199505

51442CCOVER, ENGINE UNDER, LH

main51407-25040iLY211..GEN199505-199907

main51407-25050iLY21#199505-199907

main51442-25050iYY211199505

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25090iLY21#,YY211199505

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-25010iLY21#,YY211199505

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-25010iLY21#,YY211199505

51961HOOK, NO.1

main51961-25030iLY21#,YY211199505

9017908141

main90179-08141

9017908144

main90179-08144

9017908250

main90179-08250

9165160820

main91651-60820

9165160825

main91651-60825

9165161022

main91651-61022

9461310800

main94613-10800

15 parts on this diagram · 2 diagrams in section
