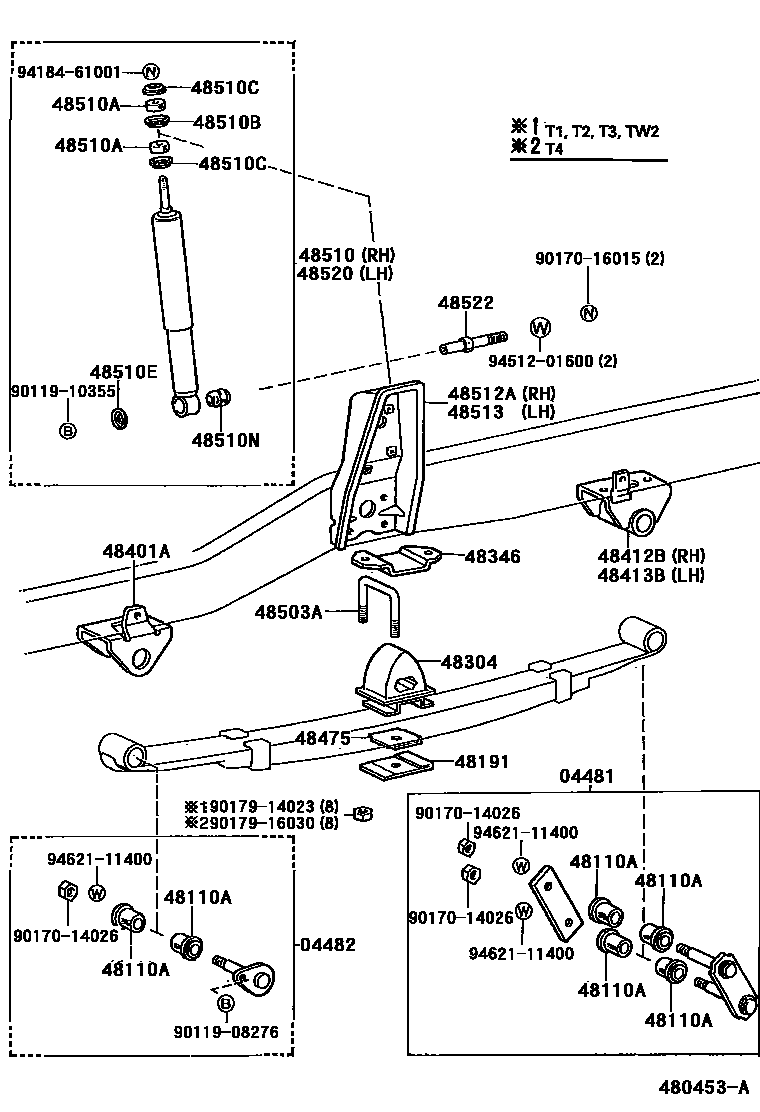

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

04481SHACKLE KIT, FRONT SPRING

main04481-25050iLY21#,YY211199505

04482PIN KIT, FRONT SPRING

main04482-25020iLY21#,YY211199505

48110SPRING ASSY, FRONT, RH

main48110-25520iLY21#..ST..EUR;YY211..ST..125199505

5-LEAF

sub48110-2E020

main48110-25560iYY211..RHD;YY211..LHD..15T;LY21#..ARL,GEN,SA199505

5-LEAF

sub48110-2E020

main48110-25601iLY21#..WT..EUR199708

5-LEAF

sub48110-25591

main48110-25870iLY211..WT..IV199505-199708

2-LEAF

sub48110-25880

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iLY21#,YY211199505

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-35020iLY21#,YY211199505

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36021iLY21#,YY211199505

48346STOPPER, BUMPER, FRONT

main48346-25091iLY21#..ST..15T..EUR;LY21#,YY211..15T..(ARL,GEN,SA)199505

main48346-25141iLY21#..WT..EUR199505

main48346-25161iLY211,YY211..125199505

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-25051iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main48411-25160iLY21#..WT..EUR199505

48412BBRACKET, SPRING, NO.2 RH

main48403-25010iLY21#,YY211199507

main48433-25060iLY211,YY211199505-199507

sub48403-25010

48413BBRACKET, SPRING, NO.2 LH

main48043-25010iLY21#,YY211199507

main48434-25050iLY211,YY211199505-199507

sub48043-25010

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iLY21#,YY211199505

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-14045iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

L=95

main90117-14047iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

L=90

main90117-16020iLY21#..WT..EUR199505

L=95

main90117-16032iLY21#..WT..EUR199505

L=85

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29735iLY211..ST..EUR;LY211,YY211..ARL,GEN199505-199607

sub48511-29736

sub90119-10355

sub90170-16015

sub90948-02002

sub90948-02017

sub90948-03004

main48511-29736iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199607

main48511-29755iLY211..WT..IV199505-199607

sub48511-29756

sub90119-10355

sub90170-16015

sub90948-02002

sub90948-02017

sub90948-03004

main48511-29756iLY211..WT..IV199607-199708

main48511-80053iLY21#..WT..EUR199708

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iLY21#,YY211199505

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iLY21#,YY211199505

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLY21#,YY211199505

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLY21#,YY211199505

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-16010iLY21#,YY211199505

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48512-25080iLY21#,YY211199505

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48512-25080iLY21#,YY211199505

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29735iLY211..ST..EUR;LY211,YY211..ARL,GEN199505-199607

sub48511-29736

sub90119-10355

sub90170-16015

sub90948-02002

sub90948-02017

sub90948-03004

main48511-29736iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199607

main48511-29755iLY211..WT..IV199505-199607

sub48511-29756

sub90119-10355

sub90170-16015

sub90948-02002

sub90948-02017

sub90948-03004

main48511-29756iLY211..WT..IV199607-199708

main48511-80053iLY21#..WT..EUR199708

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25020iLY21#,YY211199505

9011908276

main90119-08276

9011910355

main90119-10355

9017014026

main90170-14026

9017016015

main90170-16015

9017914023

main90179-14023

9017916030

main90179-16030

9418461001

main94184-61001

9451201600

main94512-01600

9462111400

main94621-11400

31 parts on this diagram · 5 diagrams in section
