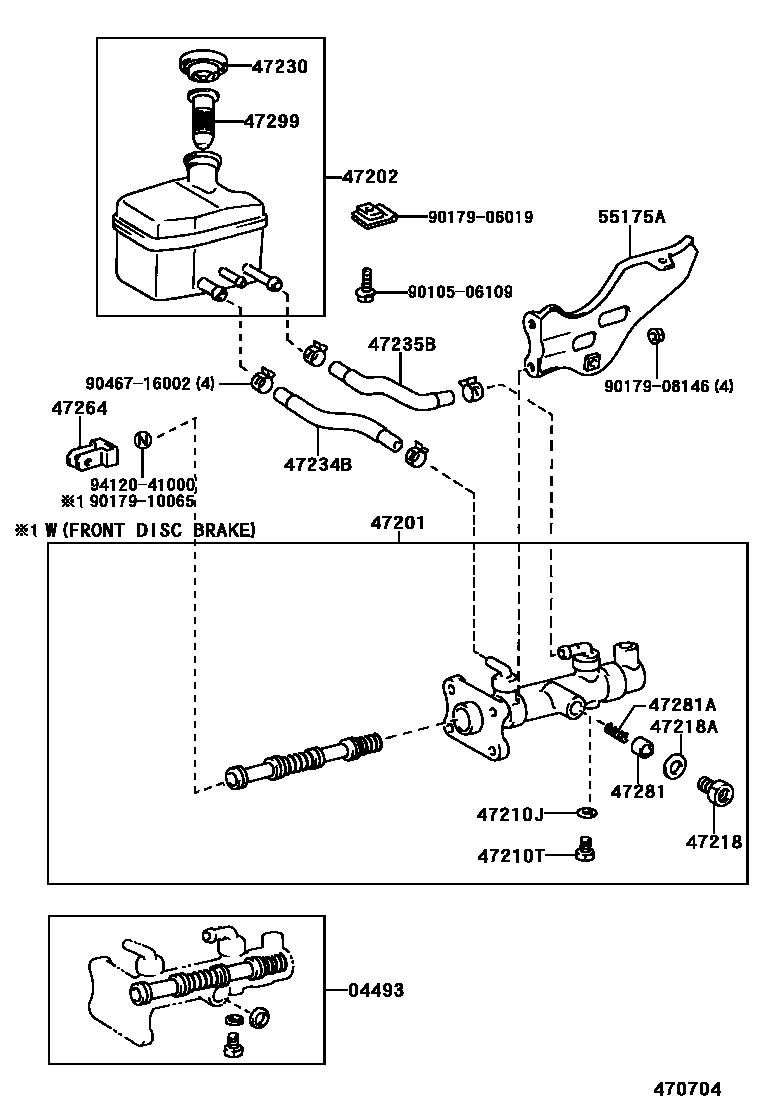

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-25080iLY212;LY211,YY211..WT;LY211..ST..(ARL,EUR)199505

W(FRONT DISC BRAKE)

main04493-25090iLY211,YY211..ST..GEN199505

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25200iLY211..ARL;LY21#,YY211..RHD..WT199505

W(FRONT DISC BRAKE)

main47201-25210iLY21#..EUR199505

W(FRONT DISC BRAKE)

main47201-25220iLY211,YY211..LHD..GEN199505

main47201-25230iLY211,YY211..RHD..ST..GEN199505

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37020iLY21#,YY211..RHD199505

main47220-37040iLY21#,YY211..LHD199505

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLY21#,YY211199505

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLY21#,YY211199505

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-30040iLY21#,YY211199505

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iLY21#,YY211199505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iLY21#,YY211199505

47234BTUBE, RESERVOIR, NO.1

main47234-37060iLY21#,YY211..RHD199505

main47234-37070iLY21#,YY211..LHD199505

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37040iLY21#,YY211..RHD199505

main47235-37060iLY21#,YY211..LHD199505

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22020iLY21#,YY211..GEN199505

main47264-50010iLY21#..ARL,EUR,SA199505

W(FRONT DISC BRAKE)

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iLY21#,YY211199505

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90501-05012iLY21#,YY211199505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iLY21#,YY211199505

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-37010iLY21#..ARL,EUR,SA199505

W(FRONT DISC BRAKE)

main55175-37030iLY21#,YY211..GEN199505

9010506109

main90105-06109

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9046716002

main90467-16002

9412041000

main94120-41000

21 parts on this diagram · 1 diagram in section
