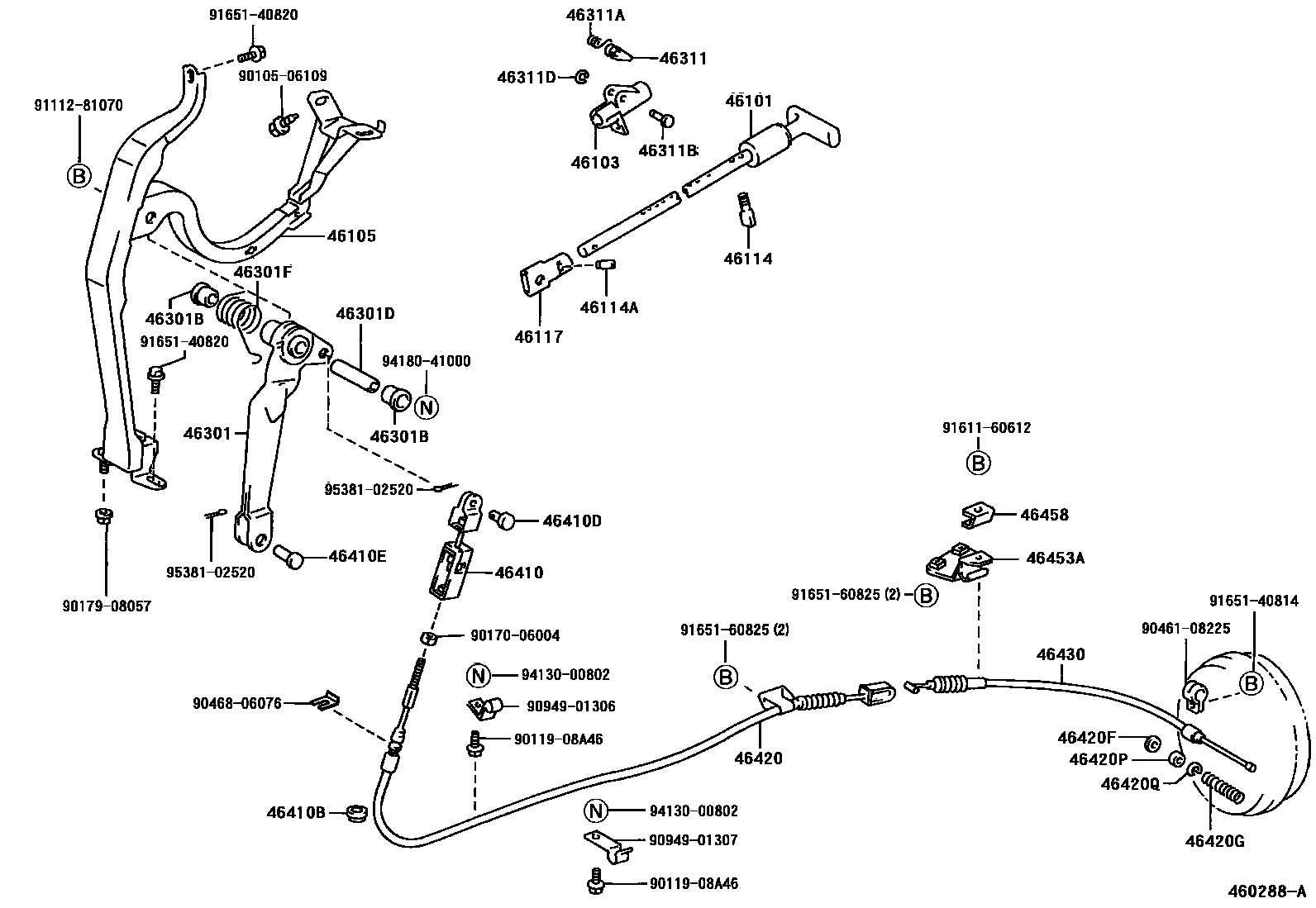

PARKING BRAKE & CABLE
46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL
46114PIN, PARKING BRAKE PLUNGER
46114APIN, PARKING BRAKE PLUNGER
46117SLEEVE, PARKING BRAKE PLUNGER
46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301BBUSH(FOR INTERMEDIATE LEVER)
46301DCOLLAR(FOR INTERMEDIATE LEVER)
46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46311PAWL, PARKING BRAKE
46311ASPRING(FOR PARKING BRAKE PAWL)
46311BPIN, PARKING BRAKE PAWL PIVOT
46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)
46410CABLE ASSY, PARKING BRAKE, NO.1
46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)
46410DPIN(FOR PARKING BRAKE FRONT CABLE)
46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
46420FSEAL, DUST(FOR PARKING BRAKE CABLE)
46420GSPRING(FOR PARKING CABLE INNER WIRE SET)
46420PSPACER, PARKING BRAKE
46420QRING, E(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46453ABRACKET, CABLE SUPPORT, NO.3
46458RETAINER, CABLE
9010506109
main90105-06109
9011908A46
main90119-08A46
9017006004
main90170-06004
9017908057
main90179-08057
9046108225
main90461-08225
9046806076
main90468-06076
9094901306
main90949-01306
9094901307
main90949-01307
9111281070
main91112-81070
9161160612
main91611-60612
9165140814
main91651-40814
9165140820
main91651-40820
9165160825
main91651-60825
9413000802
main94130-00802
9418041000
main94180-41000
9538102520
main95381-02520
42 parts on this diagram · 4 diagrams in section
