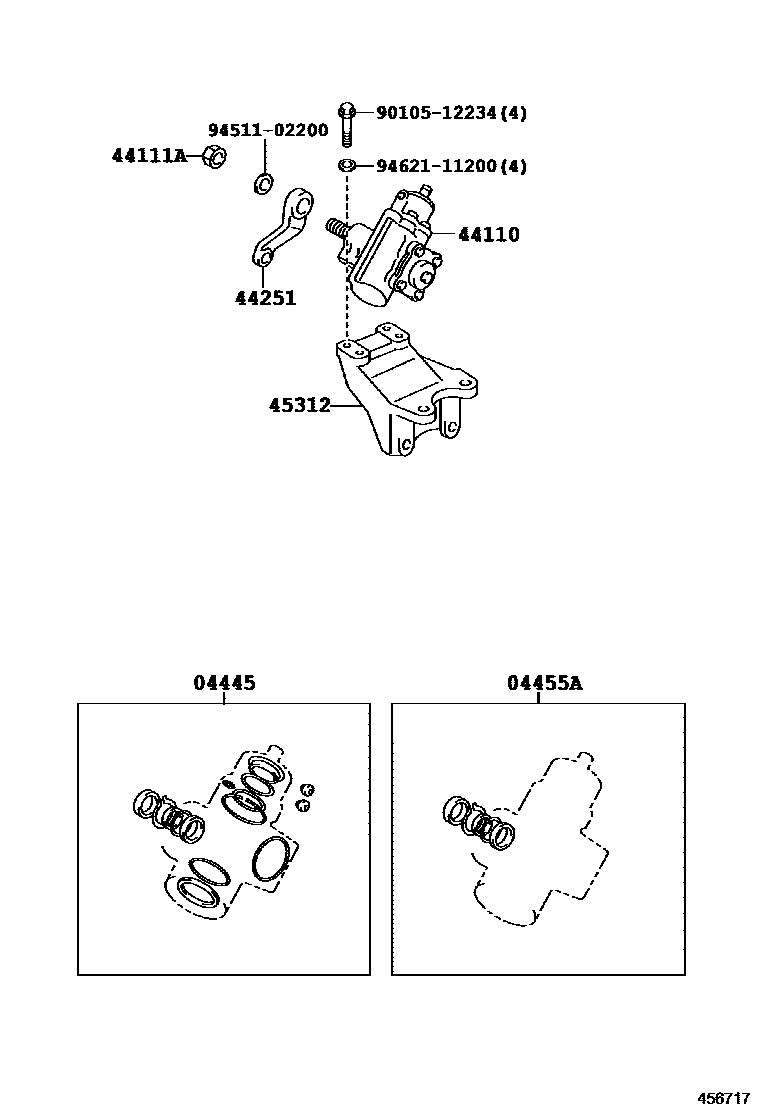

FRONT STEERING GEAR & LINK

0001 1W(POWER STEERING) 0003 1W(POWER STEERING) 0005 1 0007 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-25060iLY212;LY211..EUR;LY211,YY211..RHD..GEN199505-199708

04455AGASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

main04455-25040iLY211,YY211..RHD..GEN199505-199708

44110GEAR ASSY, POWER STEERING

main44110-25040iLY21#,YY211..RHD..(GEN,SA)199505

main44110-25060iLY21#..EUR199708

44111SHAFT, CROSS

main44111-25010iLY211,YY211..RHD..GEN199505-199708

44111ANUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

main90170-22058iLY21#,YY211199505

44251ARM, PITMAN

main45411-25191iLY21#,YY211..RHD..WT199505

main45411-25201iLY211,YY211..RHD..ST199505

main45411-25211iLY211,YY211..LHD199505-199708

main45411-25221iLY21#,YY211..RHD..WT199505

W(POWER STEERING)

main45411-25231iLY211,YY211..RHD..ST..GEN199505

W(POWER STEERING)

main45411-25240iLY21#..EUR199708

45312BRACKET, STEERING GEAR HOUSING

main45312-25170iLY21#,YY211..RHD199505

main45312-25180iLY21#,YY211..LHD199505

9010512234

main90105-12234

9451102200

main94511-02200

9462111200

main94621-11200

10 parts on this diagram · 4 diagrams in section
