POWER STEERING TUBE

0001 1 0002 1

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLY211..RHD..GEN199505-199708

main44318-28012iYY211..RHD199505-200002

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLY211..RHD..GEN199505-199708

main44319-28013iYY211..RHD199505-200002

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25030iLY21#..RHD..(GEN,SA)199505

sub44348-25031

main44348-25050iLY21#..EUR199708

44410TUBE ASSY, PRESSURE FEED

main44410-25050iYY211..RHD199505-200002

main44410-25060iLY21#..RHD..(GEN,SA)199505

main44410-25120iLY21#..EUR199708-199905

sub44410-25121

main44410-25121iLY212..EUR199905

44411HOSE, PRESSURE FEED

main44411-25050iLY21#..RHD..(GEN,SA)199505

main44411-25070iLY21#..EUR199708

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iLY211,YY211..RHD..GEN199505-199708

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168iLY212;LY211..EUR;LY211,YY211..RHD..GEN199505-199708

44412HOSE, RETURN

main44412-25040iLY21#..RHD..(GEN,SA)199505

44423FBOLT, UNION

main90401-17002iLY211,YY211..RHD..GEN199505-199801

sub96341-11703

main96341-11703iLY212;LY211..EUR;LY211,YY211..RHD..GEN199801

sub90401-17005

44423GGASKET, UNION BOLT

main90430-17002iLY212;LY211..EUR;LY211,YY211..RHD..GEN199505-199708

44443BRACKET, PUMP

main44443-25010iLY211..EUR;LY211..RHD..GEN199505-199610

main44443-28021iYY211..RHD199505-200002

44446STRUT, ADJUSTING

main44446-30070iLY211..RHD..GEN199505-199708

9010510042

main90105-10042

9010510152

main90105-10152

9010512109

main90105-12109

9011910049

main90119-10049

9046716008

main90467-16008

9046721005

main90467-21005

9161160816

main91611-60816

9161161025

main91611-61025

9165160820

main91651-60820

9413000802

main94130-00802

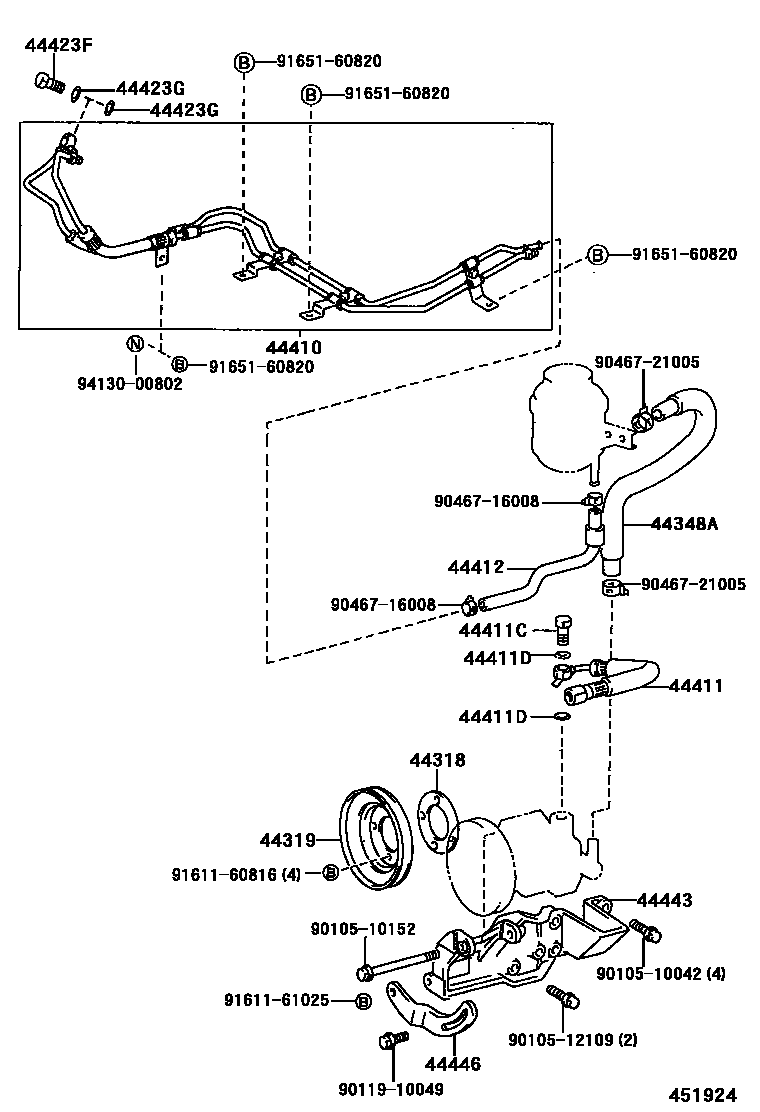

22 parts on this diagram · 2 diagrams in section
