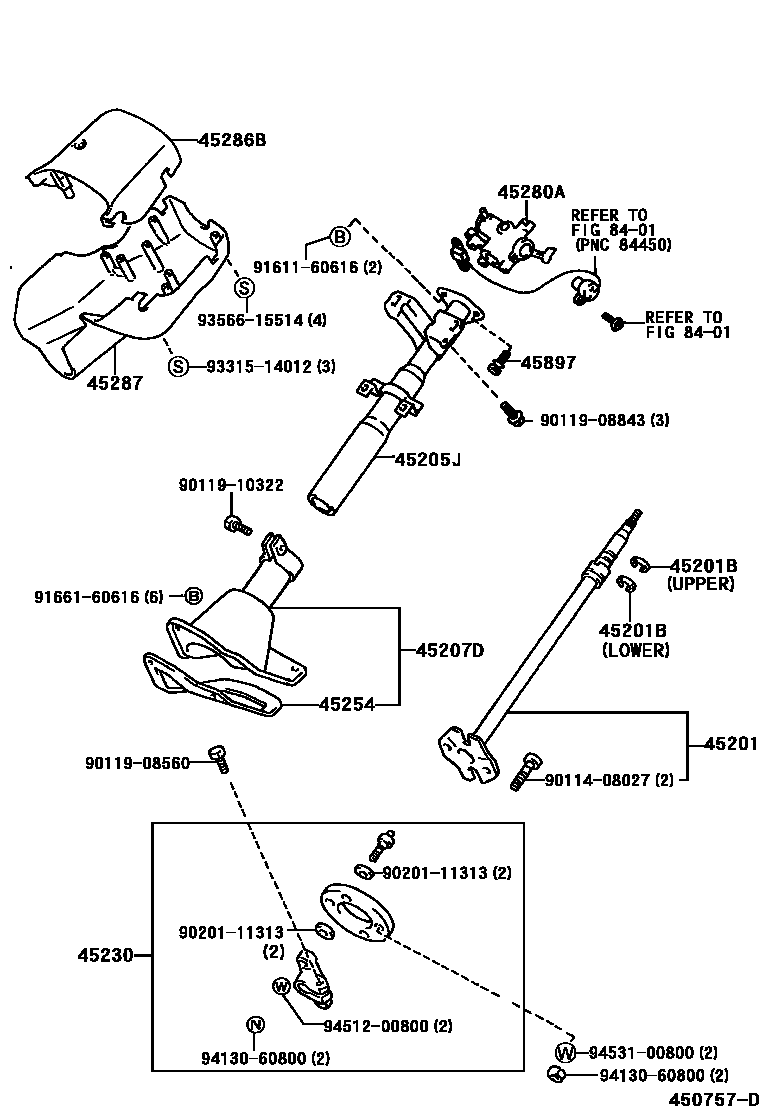

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,UPPER
T=1.20,LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45207DCOVER SUB-ASSY, MAIN SHAFT JOINT
45230COUPLING ASSY, FLEXIBLE
45254SHIELD, STEERING COLUMN HOLE
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
BLUISH GRAY,TRIM1#
45897BOLT, STEERING LOCK SET
8401
9011408027
main90114-08027
9011908560
main90119-08560
9011908843
main90119-08843
9011910322
main90119-10322
9020111313
main90201-11313
9161160616
main91611-60616
9166160616
main91661-60616
9331514012
main93315-14012
9356615514
main93566-15514
9413060800
main94130-60800
9451200800
main94512-00800
9453100800
main94531-00800
23 parts on this diagram · 2 diagrams in section
