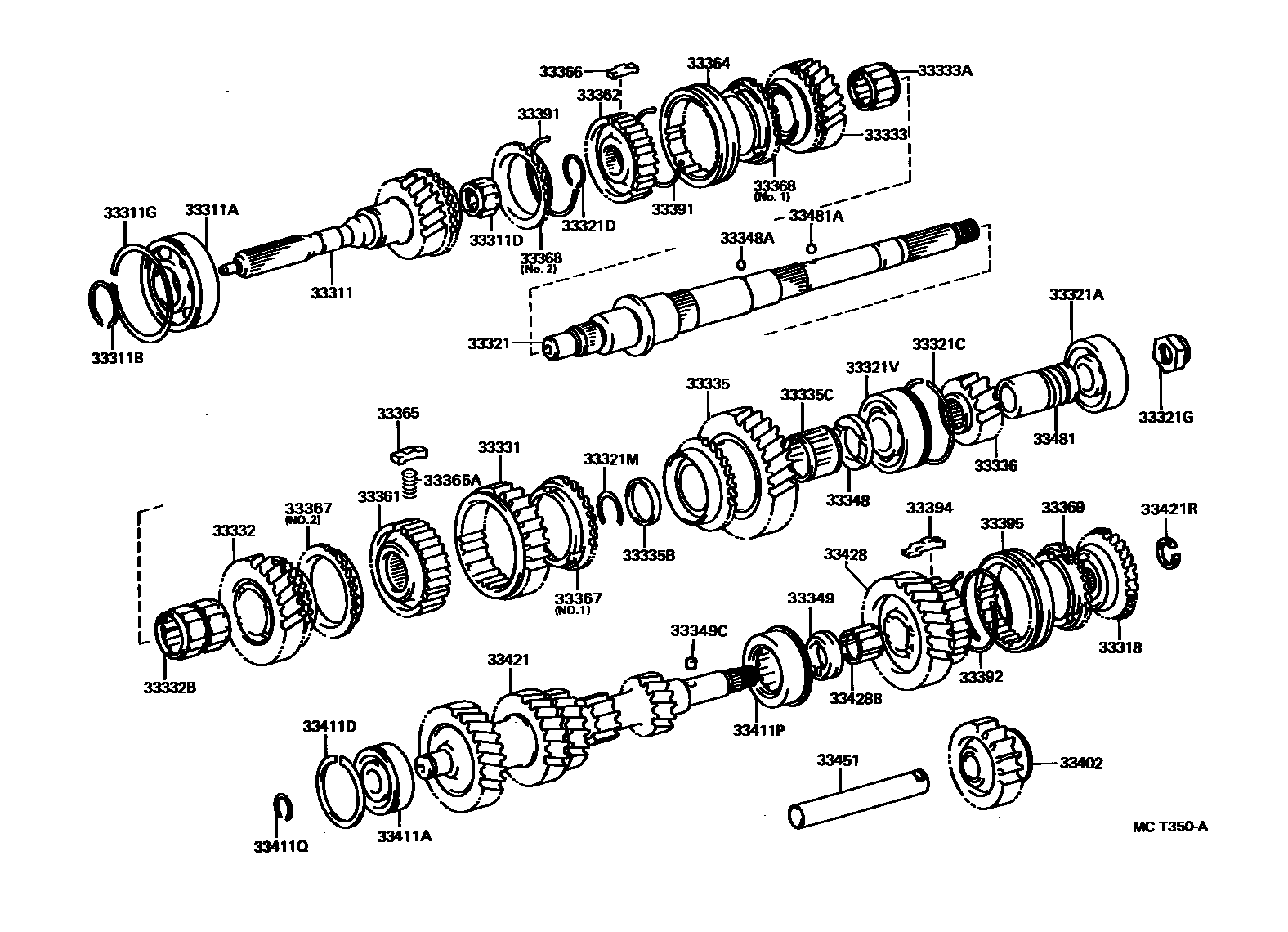

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
sub33321-25050
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A
T=2.35,MARK B
T=2.40,MARK C
T=2.45,MARK D
T=2.50,MARK E
T=2.55,MARK F
T=2.60,MARK G
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
sub90364-47014
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335BSPACER(FOR 1ST GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
sub90364-39016
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349WASHER, 5TH GEAR THRUST
sub33346-71010
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
sub33361-71010
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
sub33365-35060
33365ASPRING, COMPRESSION
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
NO.2
NO.1
33368RING, SYNCHRONIZER, NO.2
NO.1
NO.2
33369RING, SYNCHRONIZER, NO.3
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85,MARK A
T=2.90,MARK B
T=2.95,MARK C
T=3.00,MARK D
T=3.05,MARK E
T=3.10,MARK F
T=3.15,MARK G
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=9,MARK 9X33-35
N=10,MARK 10X34-36
N=10,MARK 10X31-33
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
51 parts on this diagram · 1 diagram in section
