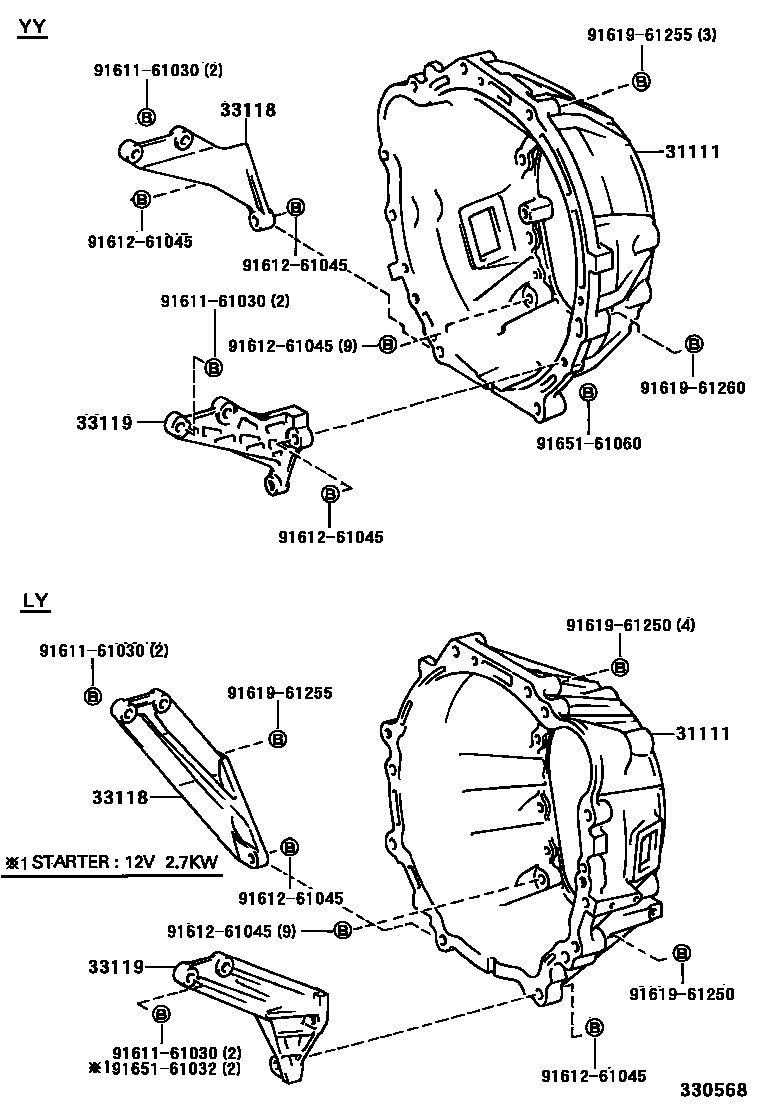

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R451,R452,R453 0002 1R451,R452,R453

31111HOUSING, CLUTCH

main31111-25030iLY21#199505-200110

main31111-25040iYY211199505-200107

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY21#..ARL,GEN,SA199505

main33118-25040iLY211..EUR199505-199805

sub33118-25050

main33118-25050iLY212..EUR199805

main33118-36031iYY211199505

33119PLATE, STIFFENER, LH(MTM)

main33119-25050iLY211..EUR199505-199805

sub33119-25051

main33119-25051iLY212..EUR199805

main33119-25060iLY21#..ARL,GEN,SA199805

main33119-26010iLY211..ARL,GEN199505-199805

sub33119-25060

main33119-36030iYY211199505

9161161030

main91611-61030

9161261045

main91612-61045

9161961250

main91619-61250

9161961255

main91619-61255

9161961260

main91619-61260

9165161032

main91651-61032

9165161060

main91651-61060

10 parts on this diagram · 2 diagrams in section
