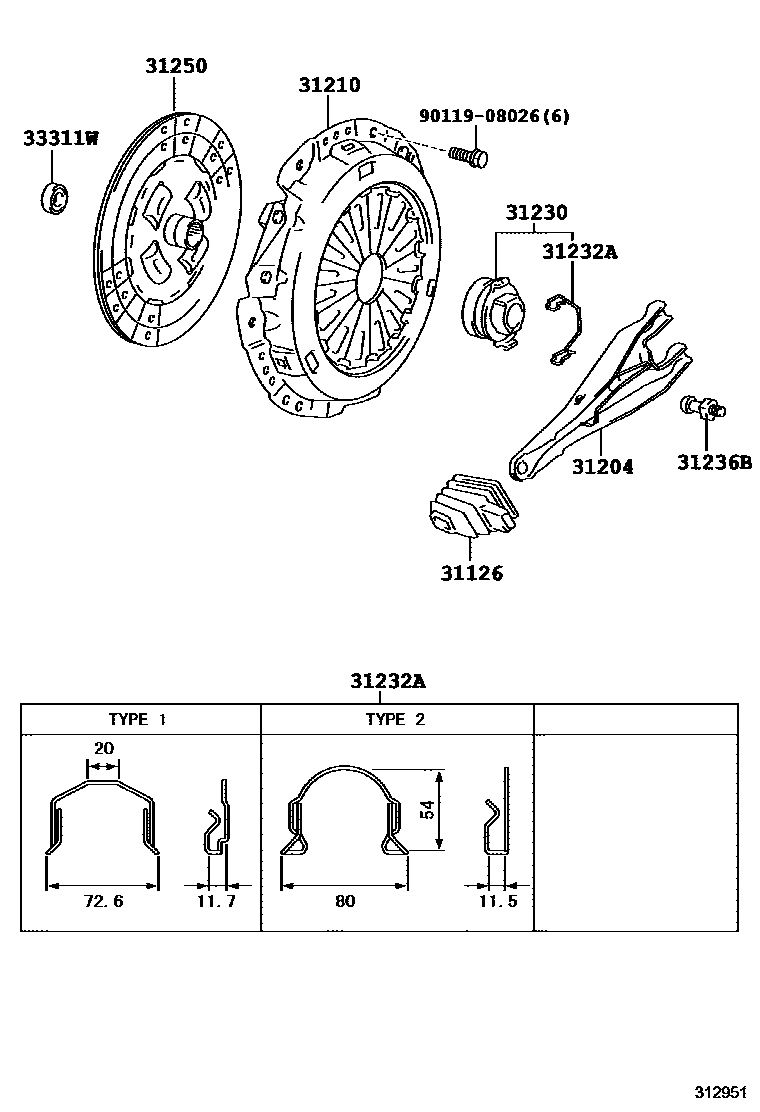

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-34010iLY21#,YY211199505-200110

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iLY21#,YY211199505-200110

31210COVER ASSY, CLUTCH

main31210-35090iYY211199505

sub31210-22100

main31210-35121iLY21#199505-200102

sub31210-35122

main31210-35122iLY21#200102

sub31210-26160

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLY21#199505-200110

sub31230-35061

main31230-35070iYY211199505-200107

sub31230-35071

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLY21#,YY211199505-200110

TYPE 1

main31232-35030iLY21#,YY211199505-200110

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-35030iLY21#,YY211199505-200110

31250DISC ASSY, CLUTCH

main31250-20240iYY211199604-199702

sub31250-20241

main31250-20241iYY211199702

sub31250-20242

main31250-25122iYY211199505-199604

sub31250-20240

main31250-26180iLY211199505-199612

sub31250-26181

main31250-26181iLY21#199612-200012

sub31250-26182

main31250-26182iLY21#200012

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLY21#,YY211199505

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
