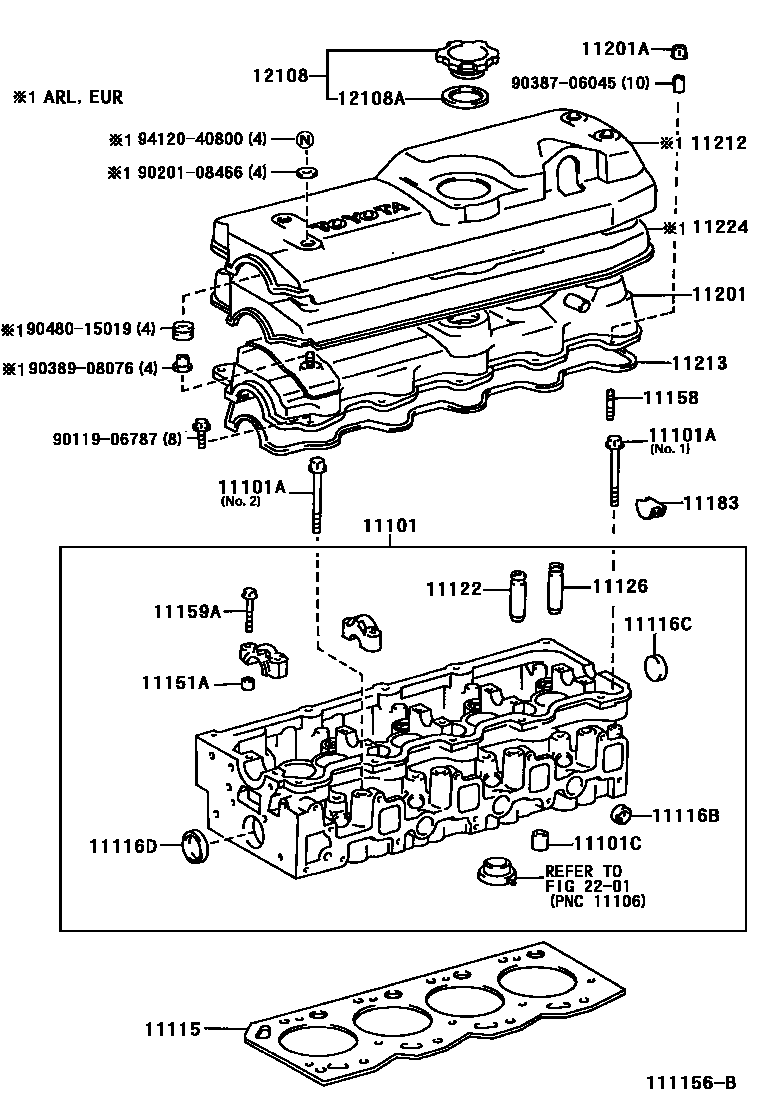

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1
NO.2
11101CTUBE(FOR CYLINDER HEAD)
11115GASKET, CYLINDER HEAD
MARK B
MARK D
MARK F
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
S=9 & 9,L=25
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11224SILENCER, CYLINDER HEAD COVER
2201
9011906787
main90119-06787
9020108466
main90201-08466
9038706045
main90387-06045
9038908076
main90389-08076
9048015019
main90480-15019
9412040800
main94120-40800
27 parts on this diagram · 2 diagrams in section
