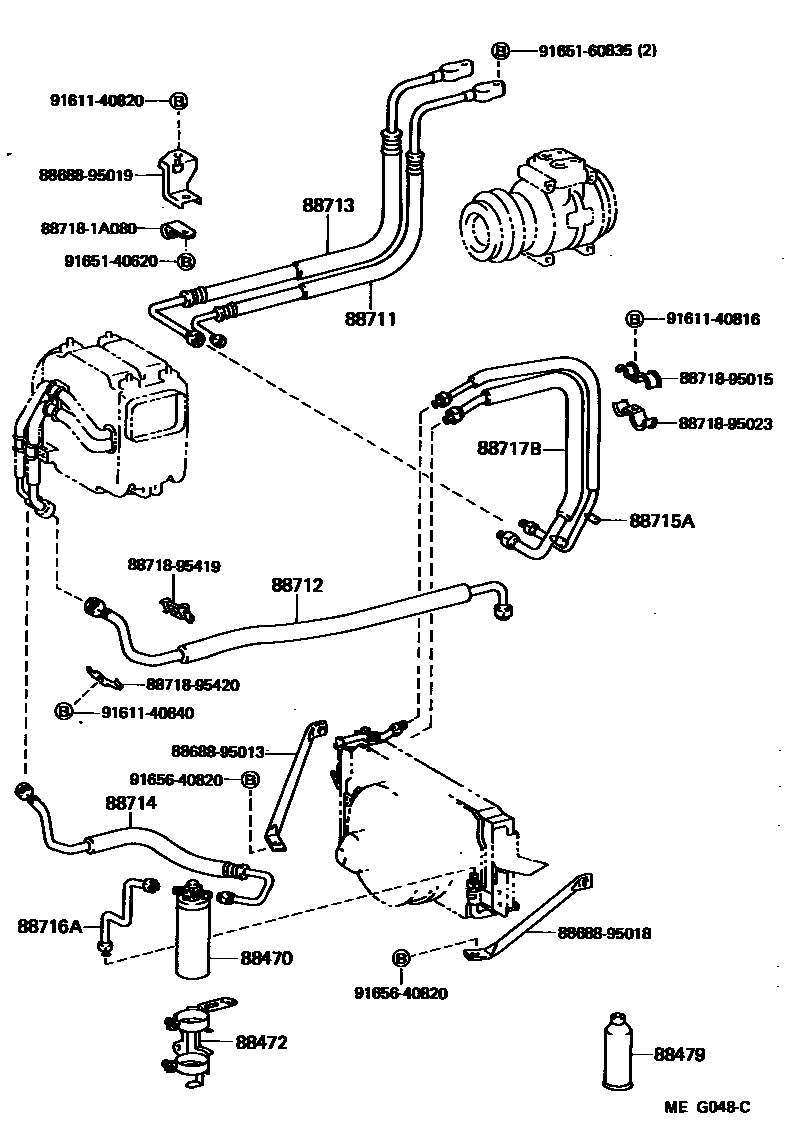

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1MAKER OPTION 0004 1DEALER OPTION 0005 1MAKER OPTION

88470RECEIVER & DRYER ASSY, COOLER

main88471-95401iLY60,YY5#,60..ST198508-198708

MAKER OPTION

main88471-95700iYY5#,6#..GEN198508-198708

DEALER OPTION

sub88471-95401

88472BRACKET, RECEIVER TANK, NO.1

main88472-95010iLY60,YY5#,6#..ARL,GEN198508-198708

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iLY60,YY5#,6#..ARL,GEN198508-198708

400G

sub90986-02004

sub90986-02005

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-95012iYY61..LHD..GEN198508-198708

MAKER OPTION

main88711-95013iLY60..ST198508-198708

MAKER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-95015iLY60,YY5#,6#..LHD..GEN198508-198708

main88712-95017iLY60,YY6#..RHD198508-198708

sub88712-25120

88713HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88712-95018iYY61..LHD..GEN198508-198708

MAKER OPTION

main88712-95019iLY60..ST198508-198708

MAKER OPTION

sub88712-25110

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-95012iLY60,YY6#..RHD198508-198708

main88721-95013iLY60,YY5#,6#..LHD..GEN198508-198708

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-95010iLY60,YY5#,6#..ARL,GEN198508-198703

sub88715-95011

main88715-95011iLY60,YY52,6#..ARL,GEN198703-198708

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-95014iLY60,YY5#,6#..ARL,GEN198508-198708

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-95013iLY60,YY5#,6#..LHD..GEN198508-198708

main88717-95014iLY60,YY6#..RHD198508-198708

8868895013BRACKET, COOLER DIAPHRAGM

main88688-95013

8868895018BRACKET, COOLER DIAPHRAGM

main88688-95018

8868895019BRACKET, COOLER DIAPHRAGM

main88688-95019

887181A080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A080

8871895015PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95015

8871895023PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95023

8871895419PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95419

8871895420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95420

9161140816

main91611-40816

9161140820

main91611-40820

9161140840

main91611-40840

9165140620

main91651-40620

9165160835

main91651-60835

9165640820

main91656-40820

24 parts on this diagram · 5 diagrams in section
