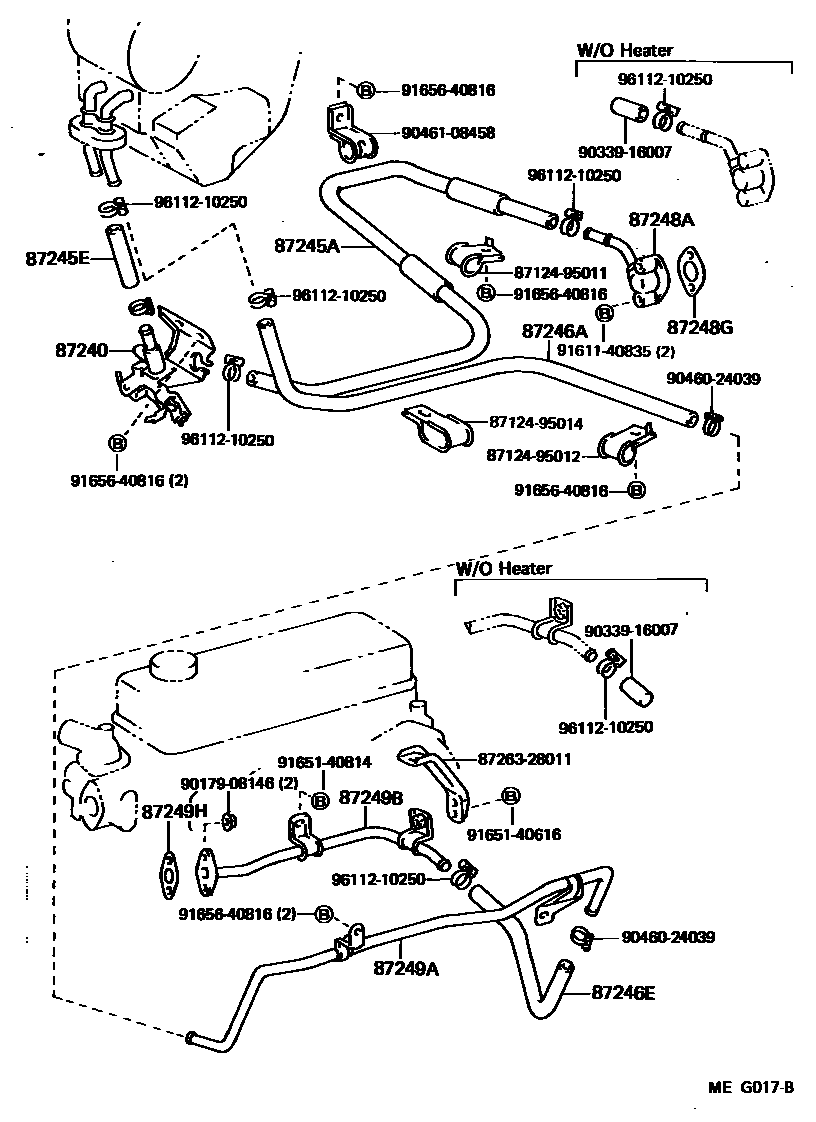

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87240VALVE ASSY, HEATER WATER

main87240-95405iLY60,YY6#..RHD198508-198708

sub87240-95407

main87240-95406iLY60,YY5#,6#..LHD198508-198708

87245AHOSE, HEATER WATER, INLET A

main87245-95039iLY60198508-198708

main87245-95045iYY5#,6#198508-198708

main99556-30980iYY5#,6#..TW198508-198708

*H,L=900,W/RR HEATER

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30100iLY60,YY5#,6#198508-198708

*H,L=60

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iLY60,YY5#,6#..LHD198508-198708

*H,L=820

sub99556-31000

main99556-30980iLY60,YY5#,6#..LHD198508-198708

*H,L=760

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95051iYY5#,6#198508-198708

main87245-95053iLY60198508-198708

main99556-30300iLY60..TW..GEN198508-198708

*H,L=270,W/RR HEATER

87248APIPE, HEATER WATER INLET, A

main87208-28010iYY5#,6#198508-198708

87248GGASKET, WATER INLET PIPE

main11493-71010iYY5#,6#198508-198708

sub11493-71011

87249APIPE, HEATER WATER OUTLET, A

main87208-95011iYY5#,6#198508-198708

sub87208-95018

87249BPIPE, HEATER WATER OUTLET, B

main87208-28021iYY5#,6#198508-198708

87249HGASKET, WATER OUTLET PIPE

main17175-72010iYY5#,6#198508-198708

sub17175-72011

8712495011CLAMP, HEATER

main87124-95011

8712495012CLAMP, HEATER

main87124-95012

8712495014CLAMP, HEATER

main87124-95014

8726328011BRACKET, HEATER WATER PIPE, NO.1

main87263-28011

9017908146

main90179-08146

9033916007

main90339-16007

9046024039

main90460-24039

9046108458

main90461-08458

9161140835

main91611-40835

9165140616

main91651-40616

9165140814

main91651-40814

9165640816

main91656-40816

9611210250

main96112-10250

23 parts on this diagram · 4 diagrams in section
