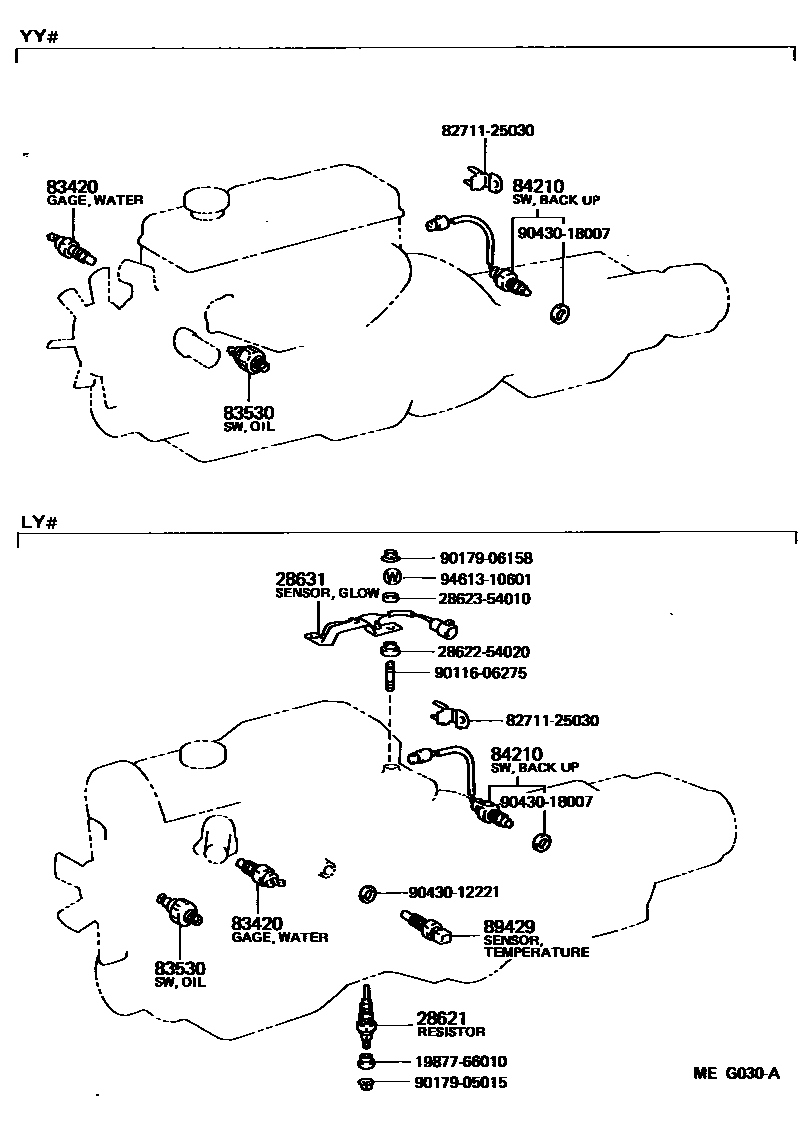

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LY60..ARL,EUR198508-198708

sub28621-64011

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LY60..ARL,EUR198508-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLY60,YY5#,6#198508-198708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYY5#,6#198508-198708

sub83530-28030

main83530-30060iLY60198508-198708

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iLY60,YY5#,6#198508-198708

89429SENSOR, OIL TEMPERATURE

main89422-30020iLY60..ARL,EUR198508-198708

sub89422-12010

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25030

9011606275

main90116-06275

9017905015

main90179-05015

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9461310601

main94613-10601

16 parts on this diagram · 4 diagrams in section
