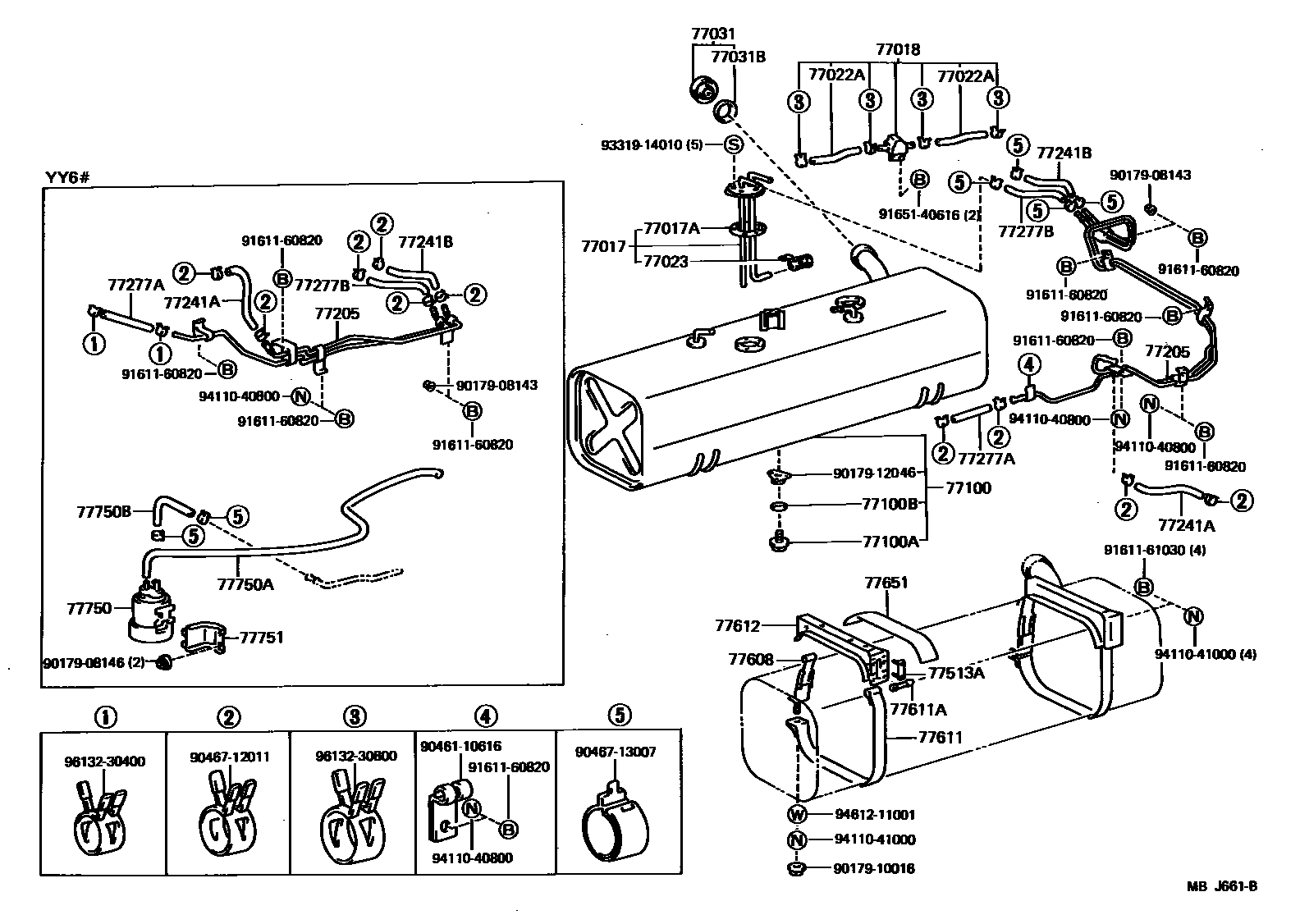

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-25050iLY60..TW¥5,100198508-198708

main77017-25060iYY6#..TW¥4,370198508-198708

main77017-25070iYY5#¥4,370198508-198708

main77017-25090iLY60..T2,T3¥4,910198508-198708

main77017-25110iYY6#..T2,T3¥4,370198508-198708

77017AGASKET, FUEL TANK VENT

main77169-14020iLY60,YY5#,6#¥330198508-198708

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iLY60,YY5#,6#..ARL,GEN¥2,620198508-198708

main77018-26140iLY60,YY61..EUR¥3,710198508-198708

sub77018-37140¥2,830

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06030iLY60,YY61..EUR¥590198508-198708

L=300

sub95333-06030¥580

main95332-08020iLY60,YY61..EUR¥460198508-198708

L=200(*H,L=160)

sub95333-08020¥320

main95332-08020iLY60,YY5#,6#..ARL,GEN¥460198508-198708

L=200(*H,L=170)

sub95333-08020¥320

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYY5#,6#¥1,020198508-198708

main77023-32010iLY60¥900198508-198708

77031CAP ASSY, FUEL TANK

main77310-55080iLY60¥2,320198508-198708

sub77310-60100¥1,530

main77310-60051iYY5#,6#¥1,680198508-198708

sub77310-60090¥1,110

77031BGASKET (FOR FUEL TANK CAP)

main77316-27010iLY60,YY5#,6#¥670198508-198708

77100TANK ASSY, FUEL

main77001-25230iLY60,YY6#..T2,T3¥40,200198508-198708

sub77001-25270¥37,800

main77001-25240iYY5#¥40,300198508-198708

main77001-25250iLY60,YY6#..TW¥40,300198508-198708

main77001-25270iLY60,YY61..EUR¥37,800198608-198708

77100APLUG(FOR FUEL TANK)

main90105-12116iLY60,YY6#..T2,T3¥110198508-198708

main90341-20003iLY60,YY5#,6#..TW¥380198508-198708

sub90341-20004¥360

77100BGASKET(FOR FUEL TANK)

main90430-12245iLY60,YY6#..T2,T3¥160198508-198708

main90430-20006iLY60,YY5#,6#..TW¥210198508-198708

77205TUBE SUB-ASSY, FUEL MAIN

main77205-25020iLY60..ARL,GEN¥9,200198508-198607

sub77205-25060¥9,300

main77205-25050iYY5#,6#¥7,900198508-198708

main77205-25060iLY60..EUR¥9,300198508-198708

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77259-25040iYY5#,6#¥1,120198508-198708

main95332-08020iLY60..TW¥460198508-198708

L=200(*H,L=150)

sub95333-08020¥320

main95332-08040iLY60..T3¥860198508-198708

L=400(*H,L=340)

sub95333-08040¥840

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iYY5#,6#¥350198508-198702

L=200

sub95333-06020¥480

main95332-08020iLY60¥460198508-198708

L=200

sub95333-08020¥320

main95333-06020iYY52,6#¥480198702-198708

L=200

sub95337-06020¥570

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-11004iYY5#,6#¥1,120198508-198708

L=280

main95332-06030iLY60¥590198508-198708

L=300(*H,L=240)

sub95333-06030¥580

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iYY5#,6#¥520198508-198702

L=200

sub95333-04020¥510

main95332-06020iLY60¥350198508-198708

L=200

sub95333-06020¥480

main95333-04020iYY52,6#¥510198702-198708

L=200

77513ARETAINER, TANK BRACKET

main77513-25020iLY60,YY6#¥1,740198508-198708

sub77503-25010¥1,740

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77603-28010iLY60,YY6#..T2,T3¥2,160198508-198708

77611BAND, FUEL TANK

main77601-26050iLY60,YY6#..T2,T3¥2,060198508-198708

main77601-27011iLY60,YY5#,6#..TW¥2,210198508-198708

77611APIN (FOR FUEL TANK BAND)

main77629-25010iLY60,YY5#,6#¥280198508-198708

77612BRACKET SUB-ASSY, FUEL TANK

main77501-25060iYY5#¥6,000198508-198708

RR

sub77501-25062¥6,000

main77501-25070iYY5#¥6,000198508-198708

FR

sub77501-25071¥6,000

main77501-28011iLY60,YY6#..T2,T3¥5,500198508-198708

sub77501-25091¥3,490

77651PACKING, FUEL TANK BRACKET

main77651-26040iLY60,YY6#..T2,T3¥480198508-198708

main77651-27110iLY60,YY5#,6#..TW¥740198508-198708

77750CANISTER ASSY, CHARCOAL

main77740-26060iYY5#,6#¥8,100198508-198708

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main90445-08169iYY5#,6#¥1,090198508-198708

L=1050

sub90999-92006¥2,010

77750BHOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)

main90445-14136iYY5#,6#¥540198508-198708

L=150

77751BRACKET, CHARCOAL CANISTER BASE

main77705-26021iYY5#,6#¥1,340198508-198708

sub77705-26022¥1,340

9017908143

main90179-08143¥110

9017908146

main90179-08146¥180

9017910016

main90179-10016¥130

9017912046

main90179-12046

9046110616

main90461-10616¥180

9046712011

main90467-12011¥180

9046713007

main90467-13007¥180

9161160820

main91611-60820¥200

9161161030

main91611-61030¥240

9165140616

main91651-40616¥60

9331914010

main93319-14010¥70

9411040800

main94110-40800¥120

9411041000

main94110-41000¥160

9461211001

main94612-11001¥60

9613230400

main96132-30400¥200

9613230800

main96132-30800¥200

41 parts on this diagram · 3 diagrams in section
