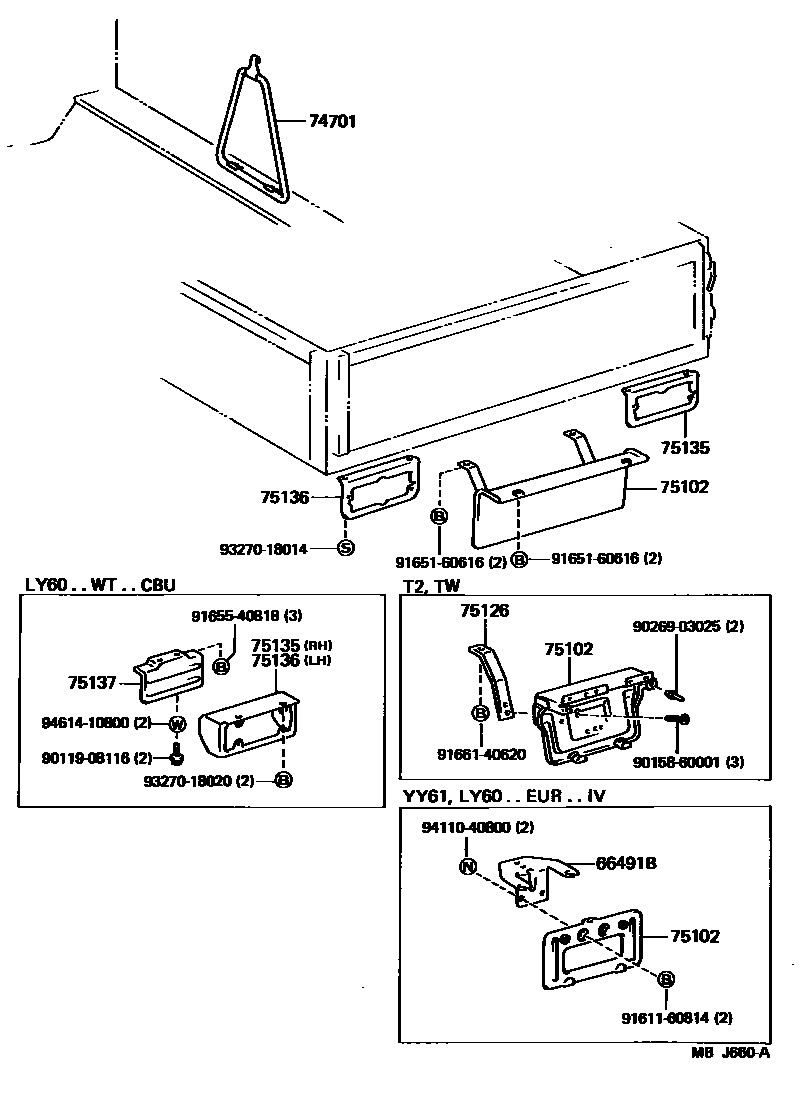

TOOL BOX & LICENSE PLATE BRACKET

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iLY60,YY61..EUR..IV198508-198708

74701CLAMP SUB-ASSY, TOOL BAG

main58705-95A01iLY60,YY5#,6#198508-198708

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95019iLY60,YY61..WT..GEN198508-198708

sub66490-25030

main66490-95022iLY60,YY5#,6#..TW198508-198708

main66490-95023iLY60,YY6#..T3..GEN198508-198708

main66490-95024iLY60,YY61..EUR..CBU198508-198708

main75102-25020iLY60,YY61..EUR..IV198508-198708

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95017iLY60,YY5#,6#..TW198508-198708

sub66407-25050

main66407-95020iLY60,YY61..WT..GEN198508-198708

75135BRACKET, COMBINATION REAR LAMP, RH

main75135-95412iLY60,YY61..EUR198508-198708

main75135-95A02iLY60,YY6#..(T2,T3)..GEN198508-198708

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main75135-95412iLY60,YY61..EUR198508-198708

main75135-95A02iLY60,YY6#..(T2,T3)..GEN198508-198708

sub75136-25010

75137BRACKET, LICENSE PLATE LAMP

main75137-95400iLY60,YY61..EUR198508-198708

9011908116

main90119-08116

9015860001

main90158-60001

9026903025

main90269-03025

9161160814

main91611-60814

9165160616

main91651-60616

9165540818

main91655-40818

9166140620

main91661-40620

9327018014

main93270-18014

9327018020

main93270-18020

9411040800

main94110-40800

9461410800

main94614-10800

18 parts on this diagram · 1 diagram in section
