LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95403iLY60,YY5#,6#..ARL,GEN198508-198708

sub69051-95404

main69051-95404iLY60,YY61..EUR198508-198708

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95403iLY60,YY5#,6#..ARL,GEN198508-198708

sub69052-95404

main69052-95404iLY60,YY61..EUR198508-198708

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89102iLY60..ARL,GEN198508-198708

sub69058-25010

main69058-95400iYY5#,6#..GEN198508-198708

sub69058-60071

main69058-95403iLY60..EUR198508-198708

main69058-95404iYY61..EUR198608-198708

sub69058-60021

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95407iLY60..ARL198508-198708

sub69057-95410

main69057-95408iLY60..GEN198508-198708

main69057-95410iLY60,YY61..EUR198508-198708

69503CYLINDER SET, LOCK

main69503-95435iLY60..GEN198508-198708

main69503-95436iLY60..GEN198508-198708

W/FUEL LOCK

main69503-95438iLY60..ARL198508-198708

main69503-95439iLY60..ARL198508-198708

W/FUEL LOCK

main69503-95444iYY5#,6#..GEN198508-198708

W/FUEL LOCK

main69503-95448iLY60,YY61..EUR198508-198708

sub69503-95449

main69503-95449iLY60..EUR198508-198708

W/FUEL LOCK

main69503-95450iYY61..EUR198608-198708

W/FUEL LOCK

sub69503-95451

69503AKEY, BLANK

main90999-00066iLY60,YY5#,6#..ARL,GEN198508-198708

MASTER KEY

sub90999-00085

main90999-00086iLY60,YY61..EUR198508-198708

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iLY60,YY5#,6#198508-198708

69685PAD, LOCK CYLINDER

main69513-32010iLY60,YY5#,6#198508-198708

7751

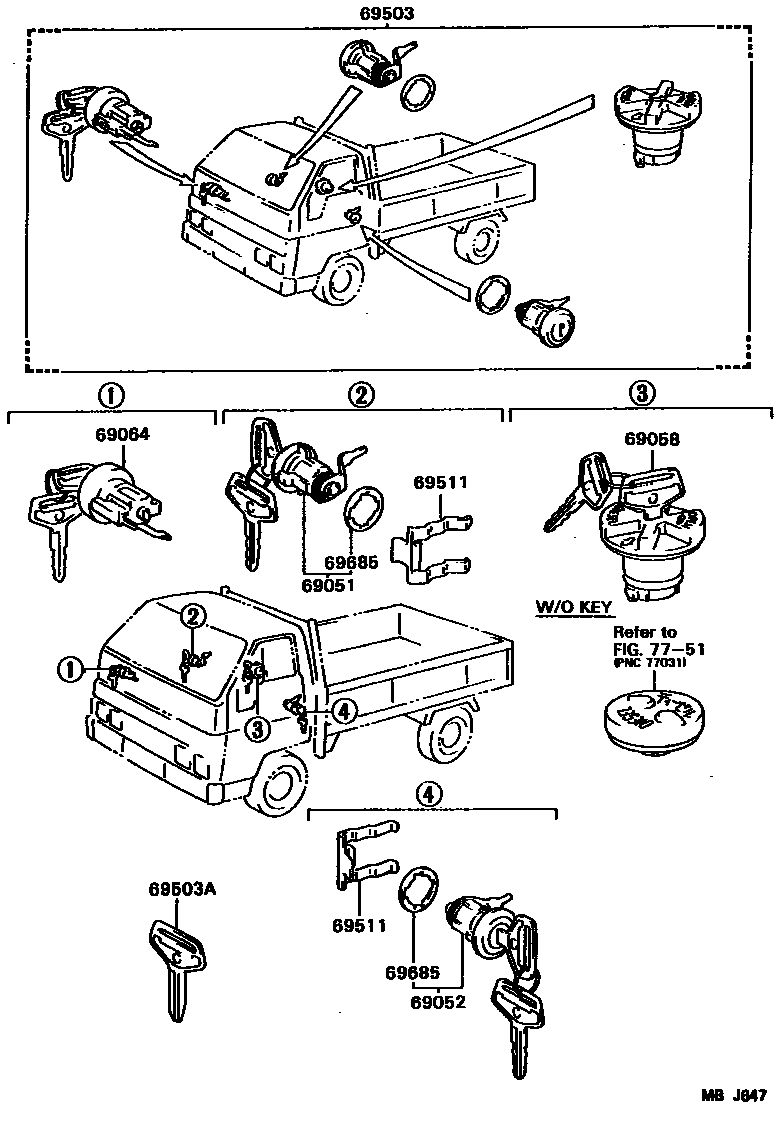

9 parts on this diagram · 1 diagram in section
