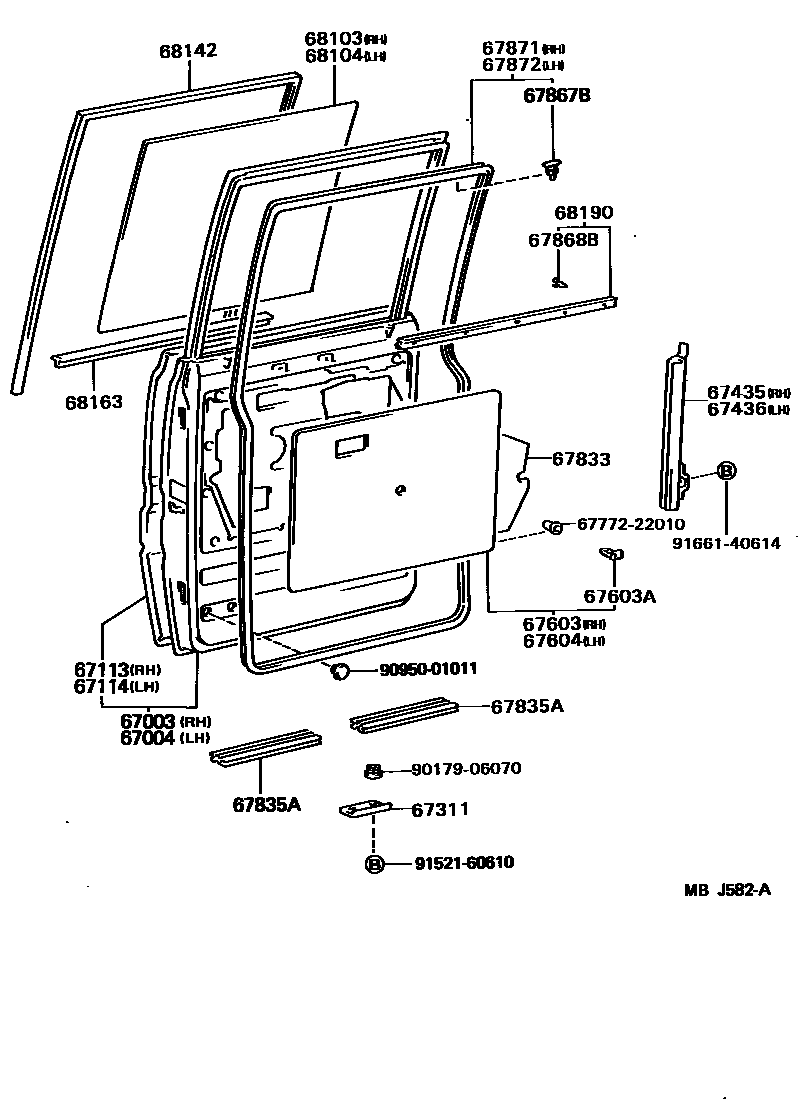

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67311BRACKET, REAR DOOR LOWER HOLE
67435FRAME, REAR DOOR WINDOW LOWER, RH
67436FRAME, REAR DOOR WINDOW, LOWER LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
GRAY,GRAY
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
GRAY,GRAY
67833COVER, REAR DOOR SERVICE HOLE
67835ACOVER, REAR DOOR HOLE, LOWER
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
LH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9017906070
main90179-06070
9095001011
main90950-01011
9152160610
main91521-60610
9166140614
main91661-40614
26 parts on this diagram · 1 diagram in section
