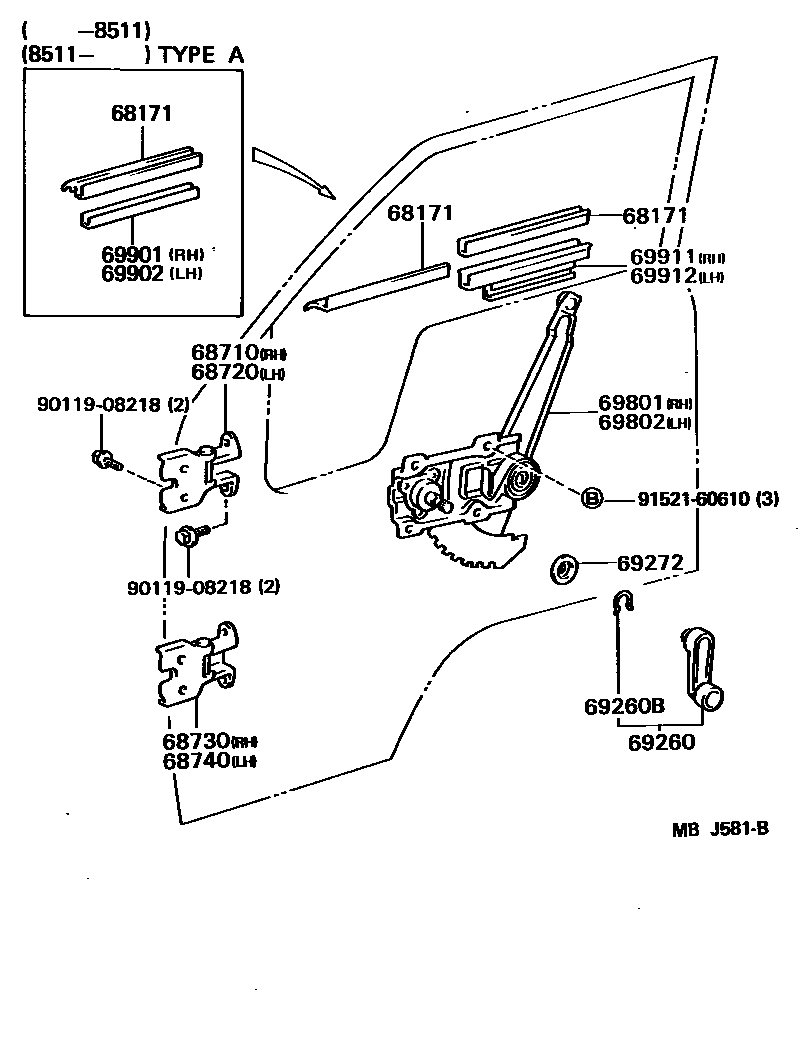

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68219-95400iLY60,YY5#,6#198508-198708

RR

main68221-95400iYY61..GEN;LY60,YY51,60198508-198511

FR

main68221-95400iLY60,YY51,6#198511-198708

FR,TYPE A

main68221-95401iLY60,YY5#,6#198511-198708

FR

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702iLY60,YY5#,6#198508-198708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702iLY60,YY5#,6#198508-198708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702iLY60,YY5#,6#198508-198708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702iLY60,YY5#,6#198508-198708

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-33iLY60,YY5#,6#198508-198708

SHADOW GRAY,SHADOW GRAY

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLY60,YY5#,6#198508-198708

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010-08iLY60,YY5#,6#198508-198708

NATURAL,NATURAL WHITE

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95404iLY60,YY5#,6#198508-198708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95406iLY60,YY5#,6#198508-198708

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69912-95400iYY61..GEN;LY60,YY51,60198508-198511

main69912-95400iLY60,YY51,6#198511-198708

TYPE A

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69912-95400iYY61..GEN;LY60,YY51,60198508-198511

main69912-95400iLY60,YY51,6#198511-198708

TYPE A

69911CHANNEL, FRONT DOOR GLASS, REAR RH

main69901-95403iLY60,YY5#,6#198508-198708

69912CHANNEL, FRONT DOOR GLASS, REAR LH

main69901-95403iLY60,YY5#,6#198508-198708

9011908218

main90119-08218

9152160610

main91521-60610

16 parts on this diagram · 1 diagram in section
