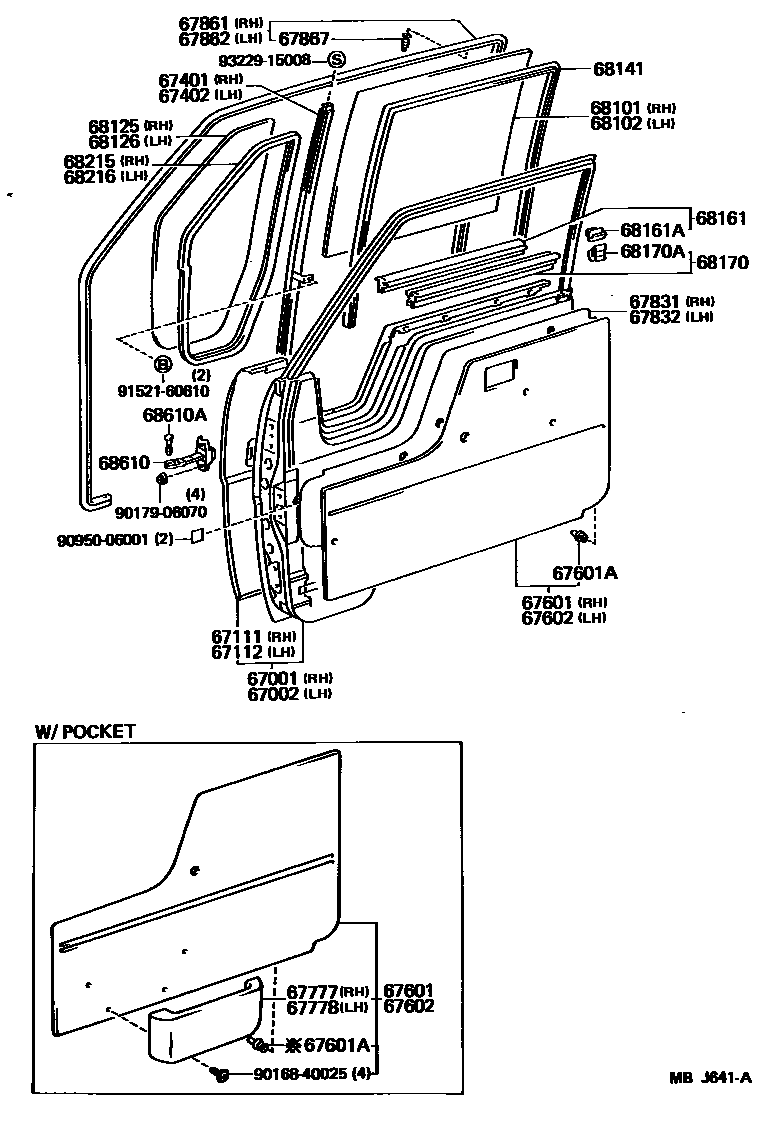

FRONT DOOR PANEL & GLASS
67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
W/POCKET,SHADOW GRAY,SHADOW GRAY
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67777POCKET, FRONT DOOR TRIM, RH
67778POCKET, FRONT DOOR TRIM, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
sub67861-37010
67862WEATHERSTRIP, FRONT DOOR, LH
sub67862-37010
67867CLIP, DOOR WEATHERSTRIP
LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.0,*TEM,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0,*TEM,T=4.0
68125GLASS, FRONT DOOR FIX WINDOW, RH
*TEM,T=3.5
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141RUN, FRONT DOOR GLASS
sub68141-95407
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
sub68617-90A01
9016840025
main90168-40025
9017906070
main90179-06070
9095006001
main90950-06001
9152160610
main91521-60610
9322915008
main93229-15008
34 parts on this diagram · 1 diagram in section
