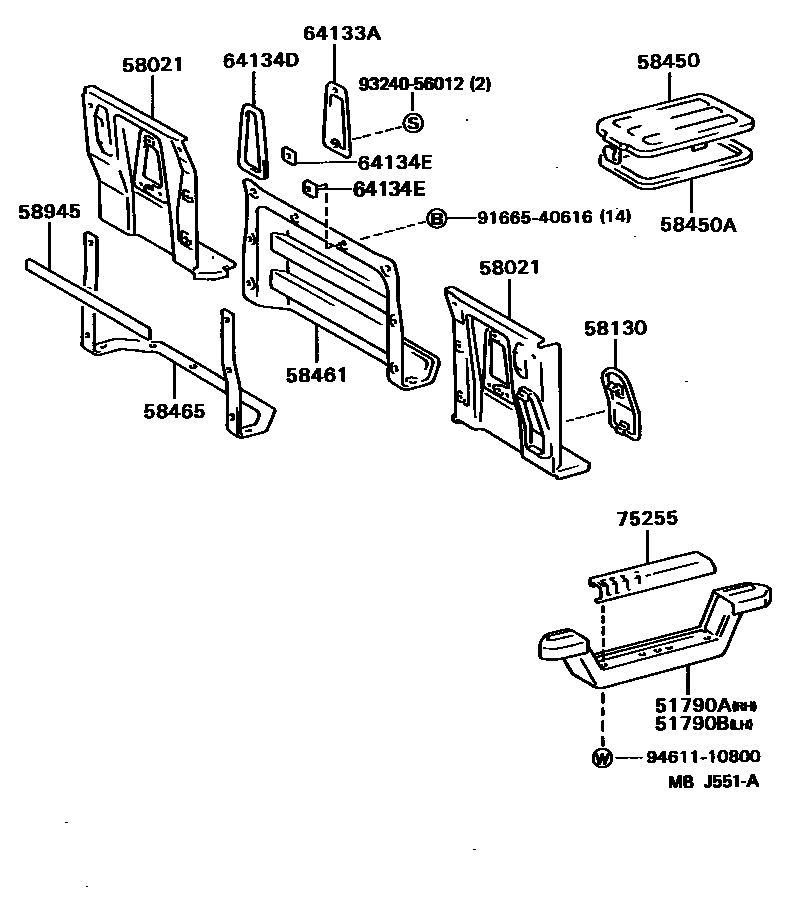

REAR FLOOR PANEL & REAR FLOOR MEMBER

51790APLATE SUB-ASSY, REAR STEP, RH

main58309-95400iLY60,YY5#,6#..TW198508-198708

51790BPLATE SUB-ASSY, REAR STEP, LH

main58309-95400iLY60,YY5#,6#..TW198508-198708

58021PANEL SUB-ASSY, HEADER

main58021-95A65iLY60..ARL..CBU198508-198708

RH

main58022-95A09iLY60..ARL..CBU198508-198708

LH

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iLY60,YY5#,6#..TW198508-198708

58450COVER ASSY, BATTERY SERVICE HOLE

main65305-95A03iLY60,YY51,60..TW198508-198708

58450APACKING, BATTERY SERVICE HOLE COVER

main65352-95A02iLY60,YY51,60..TW198508-198708

58461COVER, TRANSMISSION SERVICE HOLE

main58207-92604iLY60,YY5#,6#..TW..GEN198508-198708

main58207-92605iLY60..ARL..CBU198508-198708

sub58207-37020

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-92601iLY60,YY5#,6#..TW198508-198708

58945PACKING, TRANSMISSION SERVICE HOLE COVER

main58265-92601iLY60,YY5#,6#..TW198508-198708

64133ACOVER, HEADER PANEL

main64133-95400iLY60,YY5#,6#..TW198508-198708

64134DPACKING, HEADER PANEL COVER

main64134-95400iLY60,YY5#,6#..TW198508-198708

64134ESEAL, HEADER PANEL COVER

main64138-95400iLY60,YY51..TW198508-198708

75255COVER, STEP PLATE REAR, NO.1

main75253-95402iLY60,YY5#,6#..TW198508-198708

9166540616

main91665-40616

9324056012

main93240-56012

9461110800

main94611-10800

16 parts on this diagram · 1 diagram in section
