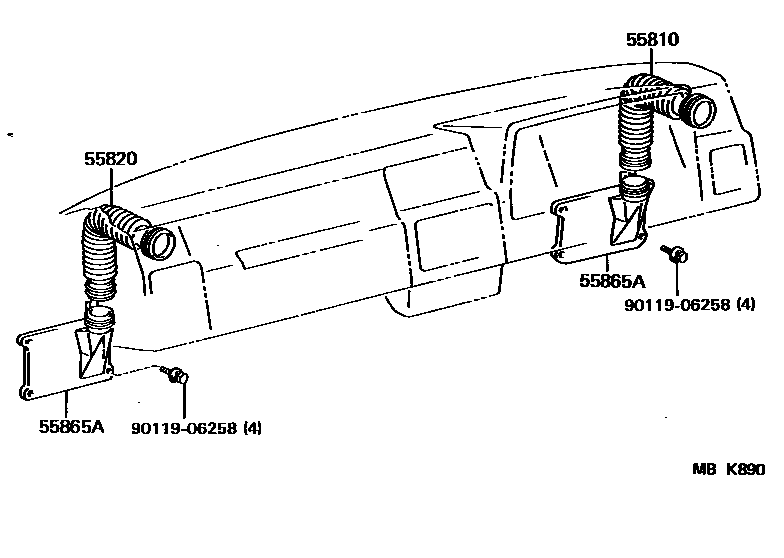

FRONT VENTILATOR

0001 1 0002 1 0003 1

55810DUCT ASSY, SIDE VENTILATOR, RH

main55863-95405iLY60,YY5#,6#..EUR,GEN198508-198708

55820DUCT ASSY, SIDE VENTILATOR, LH

main55863-95405iLY60,YY5#,6#..EUR,GEN198508-198708

55865ABOX, INSTRUMENT VENTILATOR

main55084-95400iLY60,YY5#,6#..EUR,GEN198508-198708

main55084-95400iLY60,YY6#..RHD..GEN198608-198708

W/FOOT VENTILATOR,RH

main55084-95400iLY60,YY6#..RHD..GEN198608-198708

W/FOOT VENTILATOR,LH

main55810-95403iLY60,YY52,6#..LHD..GEN198608-198708

W/FOOT VENTILATOR,RH

main55810-95403iLY60,YY52,6#..LHD..GEN198608-198708

W/FOOT VENTILATOR,LH

9011906258

main90119-06258

4 parts on this diagram · 3 diagrams in section
