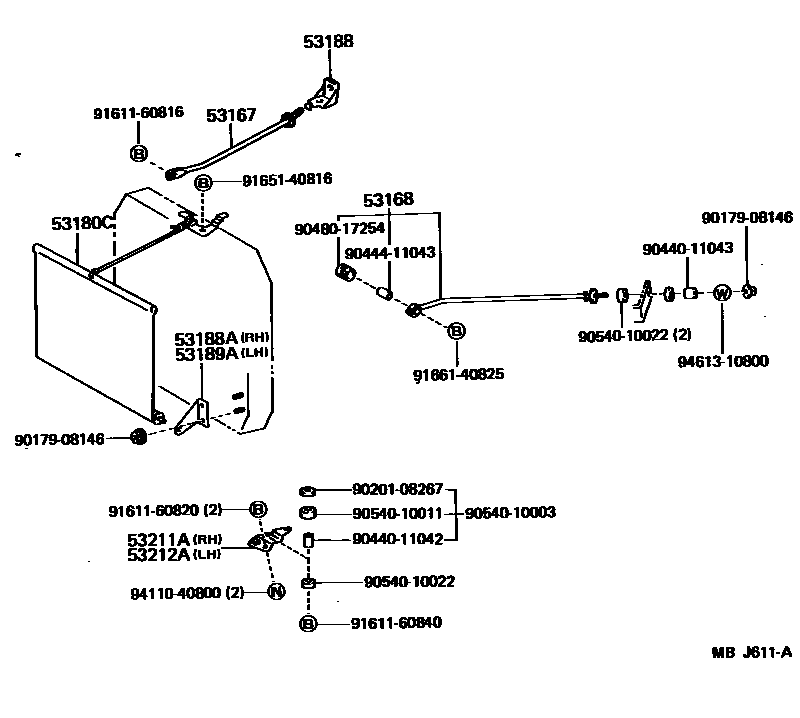

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main53167-25130iLY60,YY5#,6#198508-198708

53168ROD, RADIATOR BRACE, LH

main53018-25010iLY60,YY5#,6#198508-198708

sub53018-25011

53180CSHUTTER ASSY, RADIATOR

main53180-95011iLY60..EUR198508-198708

sub53180-95014

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-25020iLY60,YY5#,6#198508-198708

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main87543-95011iLY60..EUR198508-198708

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main87544-95011iLY60..EUR198508-198708

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-25010iLY60,YY5#,6#198508-198708

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-25010iLY60,YY5#,6#198508-198708

9017908146

main90179-08146

9020108267

main90201-08267

9044011042

main90440-11042

9044011043

main90440-11043

9044411043

main90444-11043

9048017254

main90480-17254

9054010003

main90540-10003

9054010011

main90540-10011

9054010022

main90540-10022

9161160816

main91611-60816

9161160820

main91611-60820

9161160840

main91611-60840

9165140816

main91651-40816

9166140825

main91661-40825

9411040800

main94110-40800

9461310800

main94613-10800

24 parts on this diagram · 1 diagram in section
