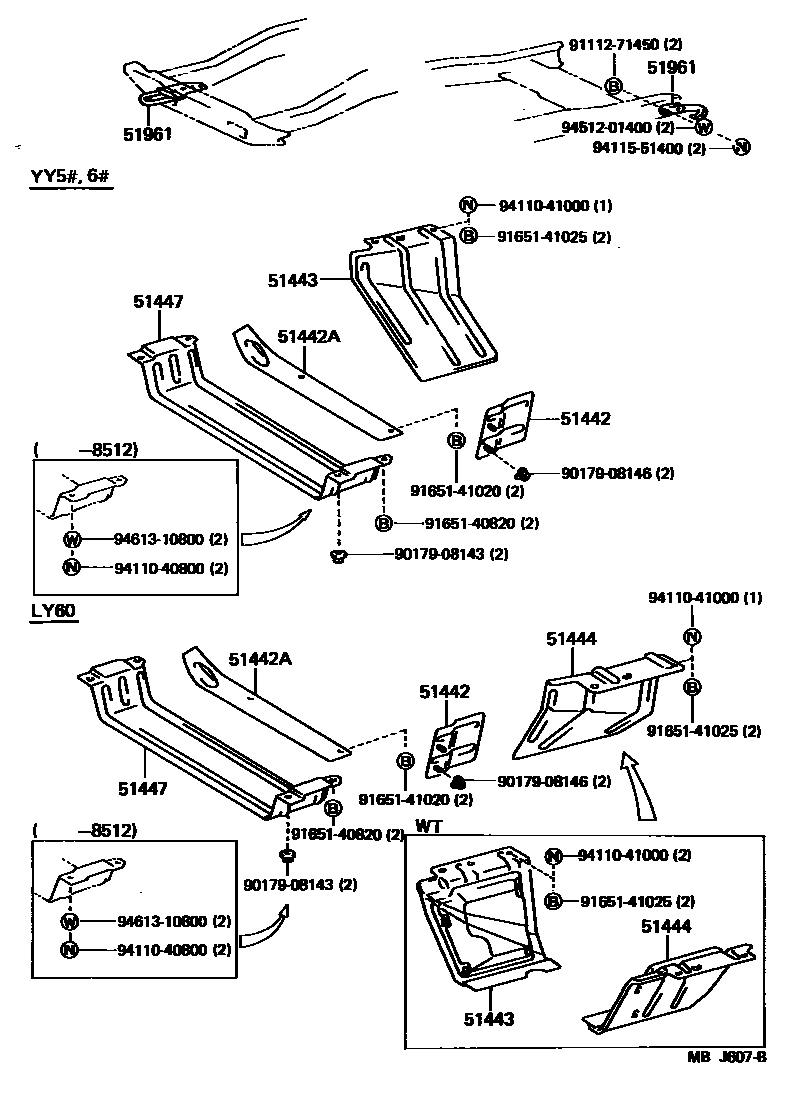

SUSPENSION CROSSMEMBER & UNDER COVER

51442COVER, ENGINE UNDER, NO.2

main51442-25050iLY60,YY5#,6#198508-198708

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51441-25160iLY60,YY5#,6#198508-198708

51443COVER, ENGINE UNDER, REAR RH

main51408-25010iLY60..WT198508-198708

main51441-25130iYY5#,6#198508-198708

51444COVER, ENGINE UNDER, REAR LH

main51409-25010iLY60..WT198508-198708

main51442-25010iLY60..ST198508-198708

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25070iLY60,YY5#,6#198508-198708

51961HOOK, NO.1

main51961-25020iLY60,YY5#,6#198508-198708

FR

main51961-36010iLY60,YY5#,6#198508-198708

RR

9017908143

main90179-08143

9017908146

main90179-08146

9111271450

main91112-71450

9165140820

main91651-40820

9165141020

main91651-41020

9165141025

main91651-41025

9411040800

main94110-40800

9411041000

main94110-41000

9411551400

main94115-51400

9451201400

main94512-01400

9461310800

main94613-10800

17 parts on this diagram · 1 diagram in section
