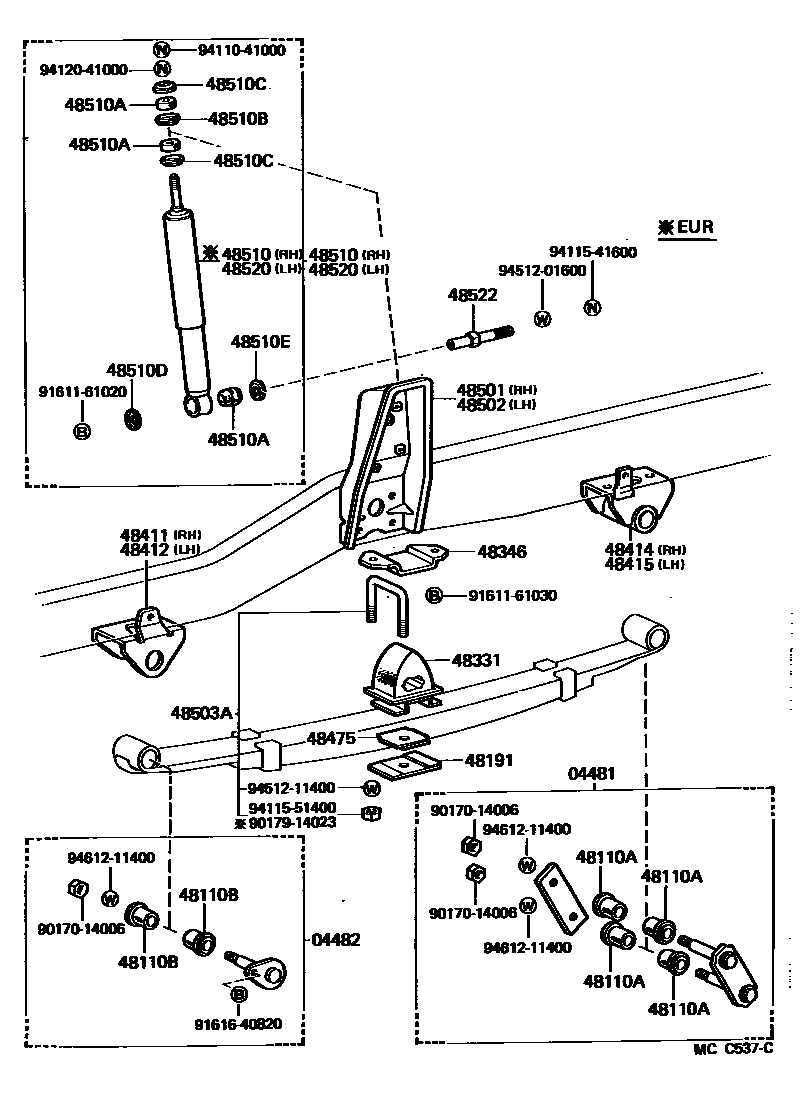

FRONT SPRING & SHOCK ABSORBER
04481SHACKLE KIT, FRONT SPRING
sub04481-25050
04482PIN KIT, FRONT SPRING
sub04482-25020
48110SPRING ASSY, FRONT, RH
48110ABUSH(FOR FRONT SPRING SHACKLE)
48110BBUSH(FOR FRONT SPRING PIN)
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48331BUMPER, FRONT SPRING, NO.1
48414BRACKET, FRONT SPRING(FOR REAR RH)
48415BRACKET, FRONT SPRING(FOR REAR LH)
48475PLATE, DISTANCE(FOR FRONT)
48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
L=95,L=95
L=90,L=90
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48511-29505
48510ACUSHION, FRONT SHOCK ABSORBER
LWR
UPR
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48511-29505
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
9017014006
main90170-14006
9017914023
main90179-14023
9161161020
main91611-61020
9161161030
main91611-61030
9161640820
main91616-40820
9411041000
main94110-41000
9411541600
main94115-41600
9411551400
main94115-51400
9412041000
main94120-41000
9451201600
main94512-01600
9451211400
main94512-11400
9461211400
main94612-11400
36 parts on this diagram · 2 diagrams in section
