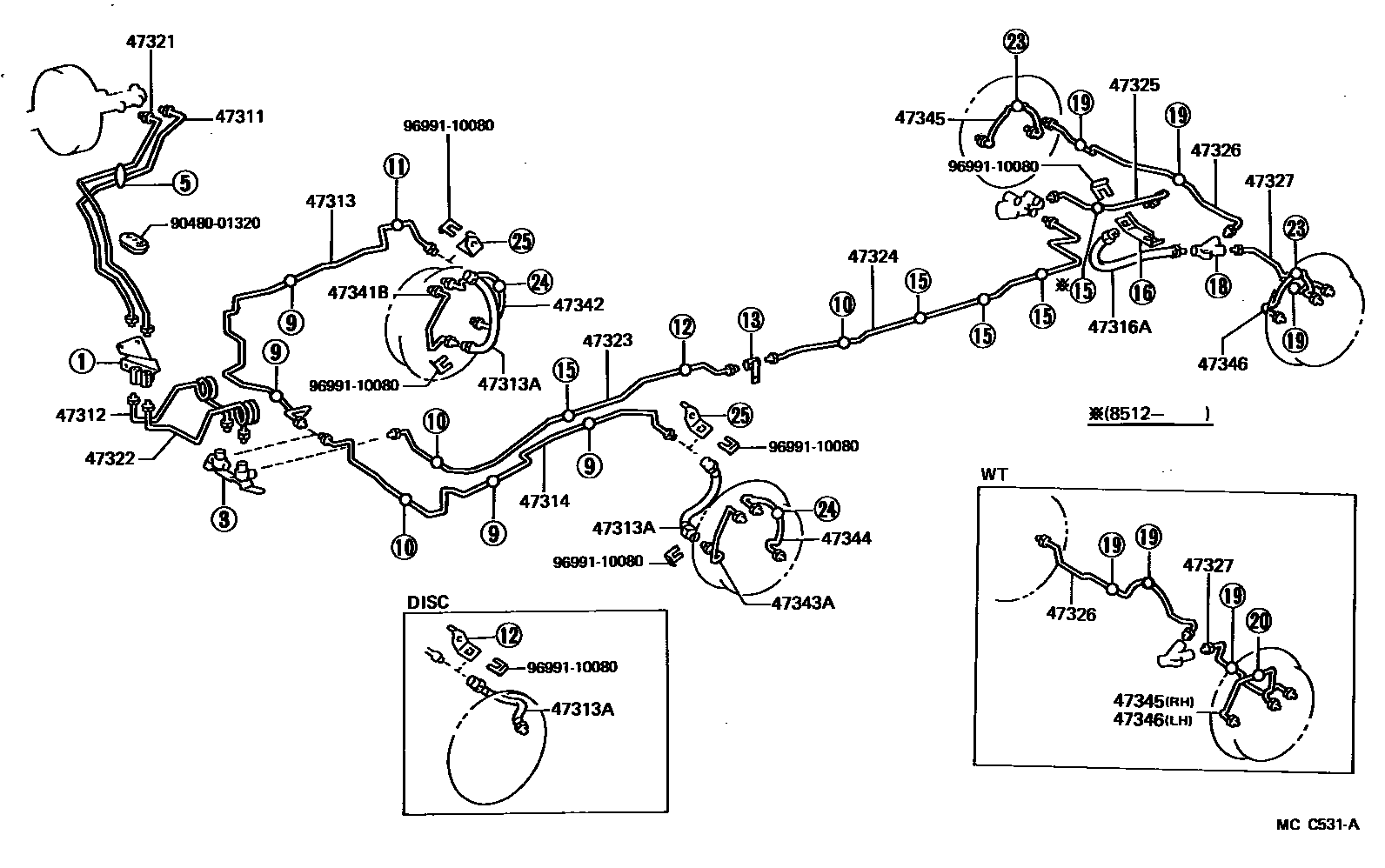

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-25170iLY60,YY5#,6#..LHD..GEN198508-198708

main47311-25180iLY60,YY6#..RHD..GEN198508-198708

main47311-25190iLY60,YY5#,6#..LHD198508-198708

W/10.5INCHES BOOSTER

main47311-25200iLY60,YY6#..RHD..ST198508-198708

W/10.5INCHES BOOSTER

47312TUBE, FRONT BRAKE, NO.2

main47312-25090iLY60,YY6#..RHD198508-198708

main47312-25100iLY60,YY5#,6#..LHD198508-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-25110iLY60,YY5#,6#198508-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02513iLY60,YY61..EUR198608-198708

sub90947-02749

main96940-34005iLY60,YY5#,6#..ARL,GEN198508-198708

W/DISC

main96950-33405iLY60..EUR198508-198608

main96950-34005iLY60,YY5#,6#..GEN198508-198708

W/DRAM

47314TUBE, FRONT BRAKE, NO.4

main47314-25140iLY60,YY5#,6#198508-198708

47316TUBE, FRONT BRAKE, NO.6

main47316-25110iLY60,YY61..ARL,EUR198508-198708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33705iLY60,YY5#,6#..ARL,GEN198508-198708

sub90947-02646

main96940-33905iLY60,YY61..EUR198508-198708

sub90947-02647

47321TUBE, REAR BRAKE, NO.1

main47321-25030iLY60,YY5#,6#..LHD..GEN198508-198708

main47321-25040iLY60,YY6#..RHD..GEN198508-198708

main47321-25050iLY60,YY5#,6#..LHD198508-198708

W/10.5INCHES BOOSTER

main47321-25060iLY60,YY6#..RHD..ST198508-198708

W/10.5INCHES BOOSTER

47322TUBE, REAR BRAKE, NO.2

main47322-25070iLY60,YY6#..RHD198508-198708

main47322-25080iLY60,YY5#,6#..LHD198508-198708

47323TUBE, REAR BRAKE, NO.3

main47323-25110iLY60,YY5#,6#198508-198708

47324TUBE, REAR BRAKE, NO.4

main47324-25230iLY60,YY61..WT..GEN198508-198708

main47324-25240iYY61..GEN;LY60,YY60..T3,TW198508-198602

sub47324-25241

main47324-25241iLY60,YY6#..T3,TW198602-198708

main47324-25250iYY5#198508-198708

47325TUBE, REAR BRAKE, NO.5

main47325-25190iLY60,YY61..WT..GEN198508-198708

main47325-25200iLY60,YY61..EUR198508-198708

main47325-25210iLY60,YY5#,6#..ST198508-198708

47326TUBE, REAR BRAKE, NO.6

main47326-25160iLY60,YY5#,6#..ST198508-198708

main47326-25190iYY61..WT..GEN198508-198708

main47326-25200iLY60,YY61..EUR198508-198708

47327TUBE, REAR BRAKE, NO.7

main47327-25120iLY60..WT..GEN198508-198708

main47327-25150iYY61..WT..GEN198508-198708

main47327-25160iLY60,YY61..EUR198508-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-25020iLY60,YY5#,6#..ST..GEN198508-198708

main47341-36080iLY60..EUR198508-198608

sub47341-36081

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-25020iLY60,YY5#,6#..ST..GEN198508-198708

sub47342-25021

main47342-36060iLY60..EUR198508-198608

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-25010iLY60,YY5#,6#..ST..GEN198508-198708

main47343-36080iLY60..EUR198508-198608

sub47343-36081

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-25020iLY60,YY5#,6#..ST..GEN198508-198708

sub47344-25021

main47344-36060iLY60..EUR198508-198608

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36060iLY60,YY61..EUR198508-198708

main47345-25030iLY60,YY5#,6#..ST198508-198708

main47345-25040iLY60,YY61..WT..GEN198508-198708

47346TUBE, WHEEL CYLINDER, REAR LH

main47344-36060iLY60,YY61..EUR198508-198708

main47345-25030iLY60,YY5#,6#..ST198508-198708

main47346-25020iLY60,YY61..WT..GEN198508-198708

9048001320

main90480-01320

9699110080

main96991-10080

22 parts on this diagram · 6 diagrams in section
