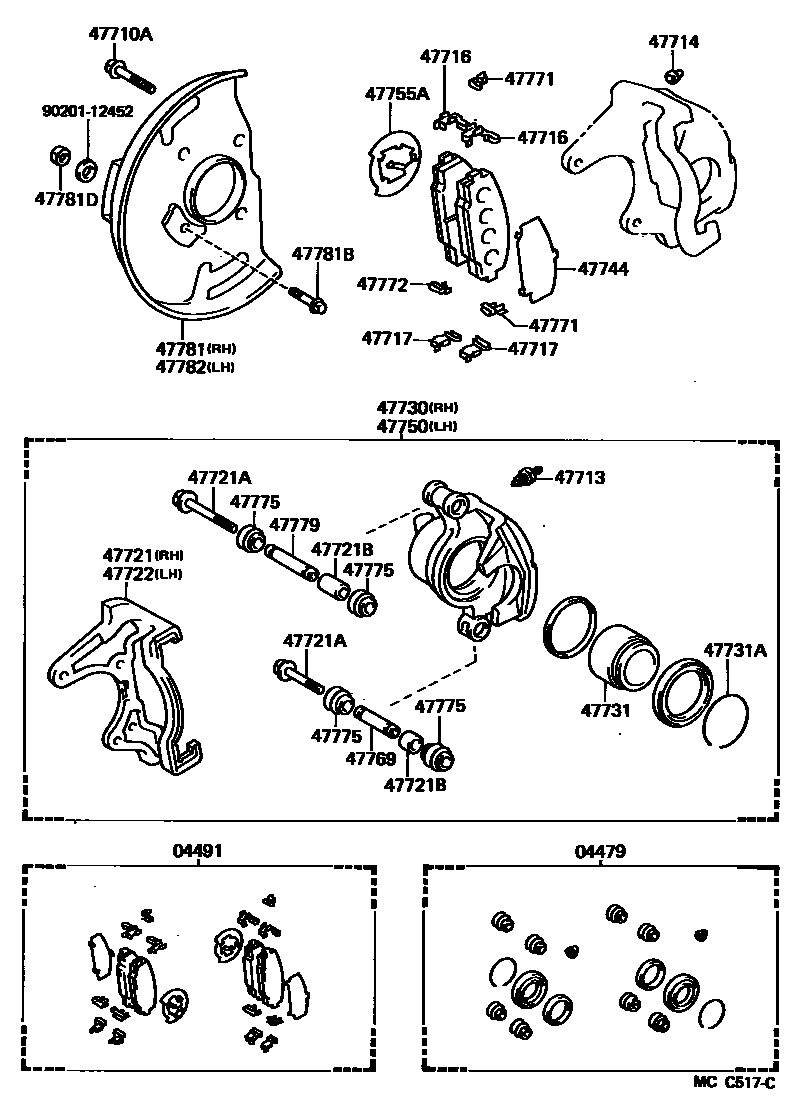

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iYY51,6#..GEN198508-198708

04491PAD KIT, DISC BRAKE, FRONT

main04491-25010iLY60,YY5#,6#..ARL,GEN198508-198708

sub04465-25010

main04491-25020iLY60,YY61..EUR198608-198708

sub04491-25030

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90109-12027iLY60,YY61..EUR198608-198708

*12-1.25PX30-18

main90119-12096iLY60,YY5#,6#..ARL,GEN198508-198708

*12-1.25PX42.5-32

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLY60,YY51,6#..ARL,GEN198508-198708

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLY60,YY51,6#..ARL,GEN198508-198708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25010iLY60,YY51,6#..ARL,GEN198508-198610

sub47716-25011

main47716-25011iLY60,YY52,6#198610-198708

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25010iLY60,YY51,6#..ARL,GEN198508-198610

sub47717-25011

main47717-25011iLY60,YY52,6#198610-198708

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main47721-25020iLY60,YY61..EUR198608-198708

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10388iLY60,YY5#,6#..ARL,GEN198508-198708

*10-1.25PX65.5-30,*10-1.25PX65.5-30

sub90119-10014

main90119-10389iLY60,YY5#,6#..ARL,GEN198508-198708

*10-1.25PX95.5-30,*10-1.25PX95.5-30

sub90119-10249

main90119-10451iLY60,YY61..EUR198608-198708

*10-1.25PX65.5-30

main90119-10452iLY60,YY61..EUR198608-198708

*10-1.25PX95.5-30

sub90119-10249

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iLY60,YY51,6#..ARL,GEN198508-198708

L=6

main90387-16005iLY60,YY51,6#..ARL,GEN198508-198708

L=36

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main47722-25020iLY60,YY61..EUR198608-198708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25010iLY60,YY5#,6#..ARL,GEN198508-198708

sub47730-25011

main47730-25020iLY60,YY61..EUR198608-198708

47731PISTON, FRONT DISC BRAKE

main47731-25010iLY60,YY51,6#..ARL,GEN198508-198708

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001iLY60,YY51,6#..ARL,GEN198508-198708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main47744-25020iLY60,YY61..EUR198608-198708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25010iLY60,YY5#,6#..ARL,GEN198508-198708

sub47750-25011

main47750-25020iLY60,YY61..EUR198608-198708

47755AINSULATOR, DISC BRAKE HEAT

main47755-25010iLY60,YY51,6#..ARL,GEN198508-198708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iLY60,YY51,6#..ARL,GEN198508-198708

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-25010iLY60,YY51,6#..ARL,GEN198508-198708

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-25010iLY60,YY51,6#..ARL,GEN198508-198708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010iLY60,YY51,6#..ARL,GEN198508-198708

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLY60,YY51,6#..ARL,GEN198508-198708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main47703-25020iLY60,YY61..EUR198608-198708

47781BBOLT(FOR DUST COVER SETTING)

main90101-12155iLY60,YY61..EUR198608-198708

*12-1.25PX29.5-17.5

main90119-12096iLY60,YY5#,6#..ARL,GEN198508-198708

*12-1.25PX42.5-32

47781DNUT(FOR DUST COVER SETTING)

main94115-71200iLY60,YY51,6#..ARL,GEN198508-198708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main47704-25020iLY60,YY61..EUR198608-198708

9020112452

main90201-12452
