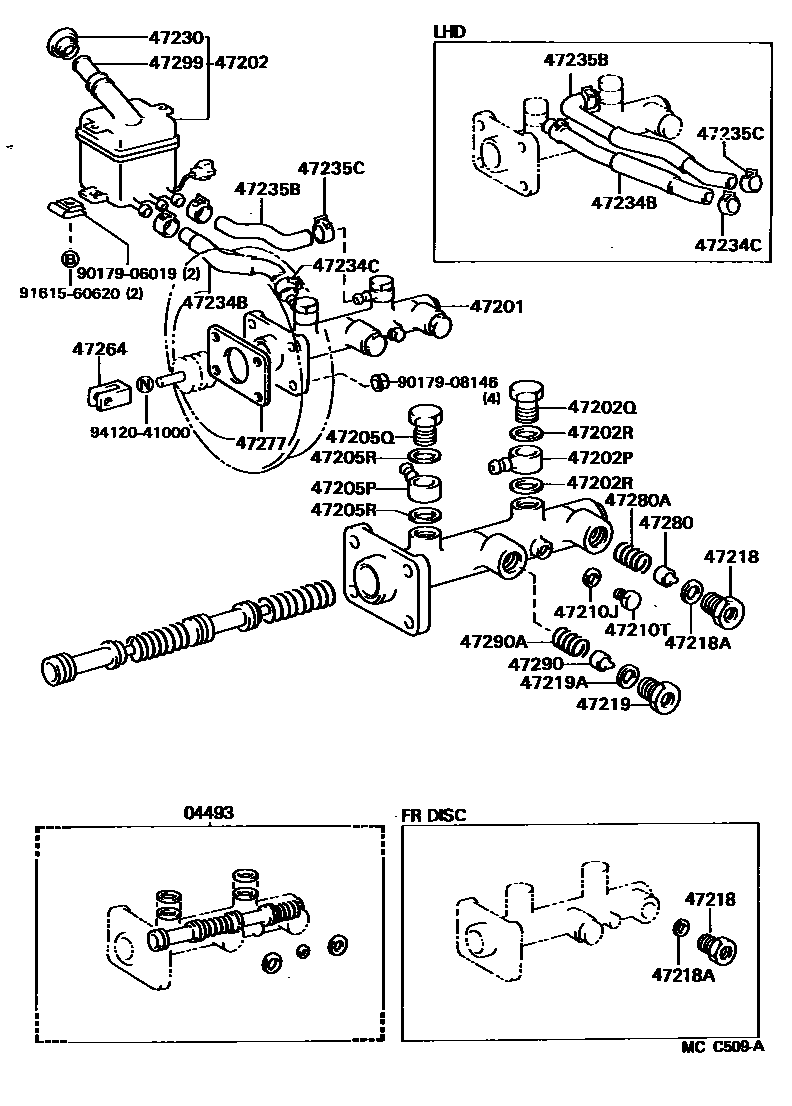

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-25040iLY60,YY5#,6#..ARL,GEN198508-198708

FR DISC

main04493-25050iLY60,YY5#,6#..ST..GEN198508-198708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25070iLY60,YY6#..RHD198508-198708

FR DISC

sub47201-25120

main47201-25080iLY60,YY6#..RHD..ST..GEN198508-198708

sub47201-25130

main47201-25090iLY60,YY51,60..LHD..GEN198508-198708

FR DISC

sub47201-25140

main47201-25100iLY60,YY5#,6#..LHD..GEN198508-198708

sub47201-25150

main47201-25110iLY60..EUR198508-198608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-36040iLY60,YY5#,6#198508-198708

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iLY60,YY5#,6#198508-198708

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iLY60,YY5#,6#198508-198708

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iLY60,YY5#,6#198508-198708

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-13137iLY60,YY5#,6#198508-198708

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iLY60,YY5#,6#198508-198708

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iLY60,YY5#,6#198508-198708

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLY60,YY5#,6#198508-198708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLY60,YY5#,6#198508-198708

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-25020iLY60,YY52,6#..LHD198508-198708

FR DISC

main47218-30030iLY60..EUR198508-198708

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iLY60,YY5#,6#198508-198708

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-30030iLY60,YY5#,6#198508-198708

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-11001iLY60,YY5#,6#198508-198708

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iLY60,YY5#,6#198508-198708

47234BTUBE, RESERVOIR, NO.1

main47234-36100iLY60,YY6#..RHD198508-198708

main47234-36110iLY60,YY5#,6#..LHD198508-198708

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90467-16002iLY60,YY5#,6#198508-198708

sub96134-51500

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-36100iLY60,YY6#..RHD198508-198708

main47235-36110iLY60,YY5#,6#..LHD198508-198708

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main90467-16002iLY60,YY5#,6#198508-198708

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22020iLY60,YY5#,6#198508-198708

47277SPACER, MASTER CYLINDER

main47277-36010iLY60,YY5#,6#198508-198708

W/10.5INCHES BOOSTER

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iLY60..EUR198508-198708

47280ASPRING, COMPRESSION

main90504-05003iLY60..EUR198508-198708

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47281-30020iLY60,YY5#,6#198508-198708

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05003iLY60,YY5#,6#198508-198708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iLY60,YY5#,6#198508-198708

9017906019

main90179-06019

9017908146

main90179-08146

9161560620

main91615-60620

9412041000

main94120-41000

31 parts on this diagram · 1 diagram in section
