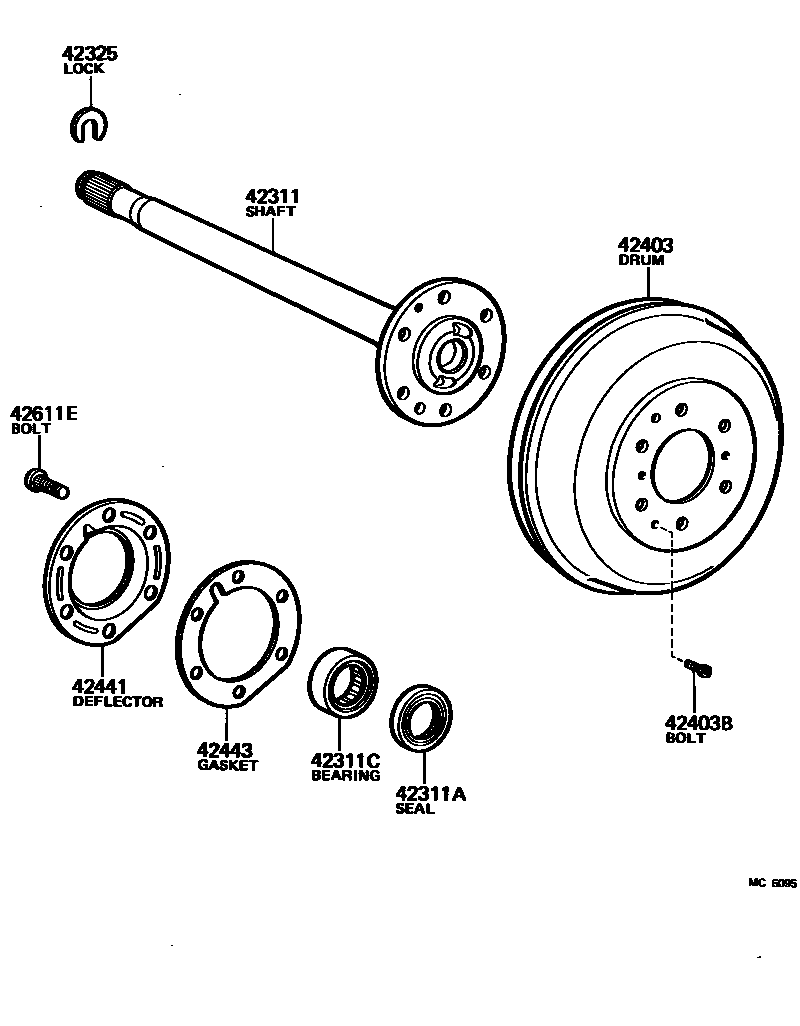

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311SHAFT, REAR AXLE

main42311-25060iLY60,YY5#,6#..ST198508-198708

sub42311-25061

main42311-25070iLY60,YY61..WT..GEN198508-198708

sub42311-25071

sub90310-36003

main42311-36160iLY60,YY61..EUR198508-198708

sub42311-36161

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-35001iLY60,YY61..WT..GEN198508-198708

main90310-38033iLY60,YY61..EUR198508-198708

main90311-47001iLY60,YY5#,6#..ST198508-198708

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013iLY60,YY5#,6#..ST198508-198708

42325LOCK, REAR AXLE SHAFT

main42325-55010iLY60,YY5#,6#..ST198508-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25040iLY60,YY5#,6#..ST198508-198708

main42431-26060iLY60,YY61..WT..GEN198508-198708

main42431-36100iLY60,YY61..EUR198508-198708

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iLY60,YY5#,6#..ST198508-198708

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25020iLY60,YY61..WT..GEN198508-198708

main42441-25030iLY60,YY5#,6#..ST198508-198708

main42441-36050iLY60,YY61..EUR198508-198708

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-25010iLY60,YY5#,6#..ST198508-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02030iLY60,YY5#,6#..ST198508-198708

sub90942-02077

main90942-02041iLY60,YY61..WT..GEN198508-198708

RH

sub90942-02110

main90942-02042iLY60,YY61..WT..GEN198508-198708

LH

sub90942-02111

main90942-02050iLY60,YY61..EUR198508-198708

RH

main90942-02051iLY60,YY61..EUR198508-198708

LH

9 parts on this diagram · 3 diagrams in section
