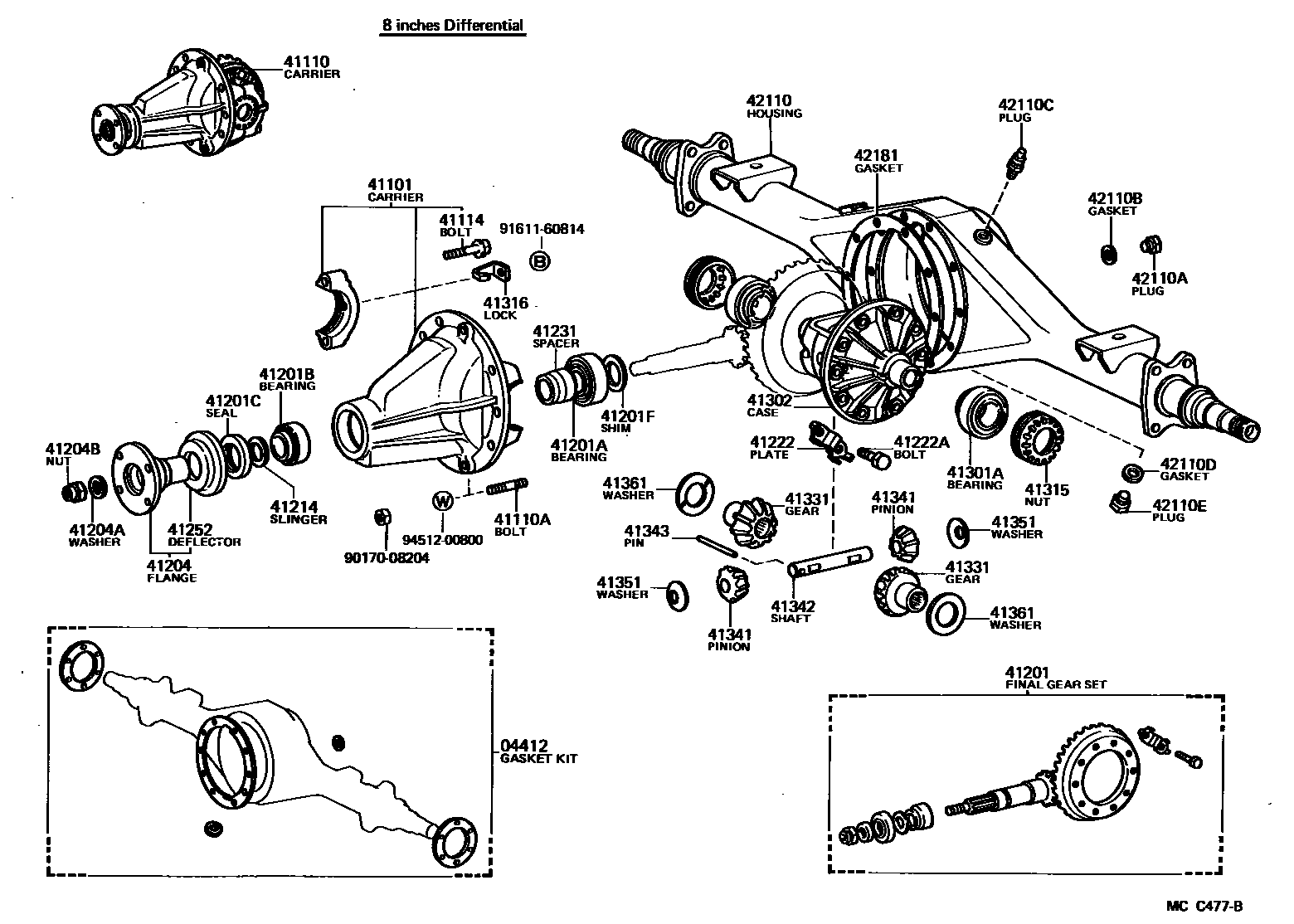

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:7=5.857
sub41110-36381
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
L=36,L=36
L=44,L=44
S=16 & 12.5,L=40.5,L=40.5,S=16&12.5
S=18 & 12.5,L=53.5,L=53.5,S=18&12.5
S=15 & 12.5,L=35.5,L=35.5,S=15&12.5
S=19 & 12.5,L=43.5,L=43.5,S=19&12.5
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-29436
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
OD=47,T=1.70,T=1.7
OD=47,T=1.73,T=1.73
OD=47,T=1.76,T=1.76
OD=47,T=1.79,T=1.79
OD=47,T=1.82,T=1.82
OD=47,T=1.85,T=1.85
OD=47,T=1.88,T=1.88
OD=47,T=1.91,T=1.91
OD=47,T=1.94,T=1.94
OD=47,T=1.97,T=1.97
OD=47,T=2.00,T=2
OD=47,T=2.03,T=2.03
OD=47,T=2.06,T=2.06
OD=47,T=2.09,T=2.09
OD=47,T=2.12,T=2.12
OD=47,T=2.15,T=2.15
OD=47,T=2.18,T=2.18
OD=47,T=2.21,T=2.21
OD=47,T=2.24,MARK 01,T=2.24
OD=47,T=2.27,MARK 02,T=2.27
OD=47,T=2.30,MARK 03,T=2.30
OD=47,T=2.33,MARK 04,T=2.33
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOLBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6,T=1.6
T=1.7,T=1.7
T=1.8,T=1.8
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
9017008204
main90170-08204
9161160814
main91611-60814
9451200800
main94512-00800
38 parts on this diagram · 3 diagrams in section
