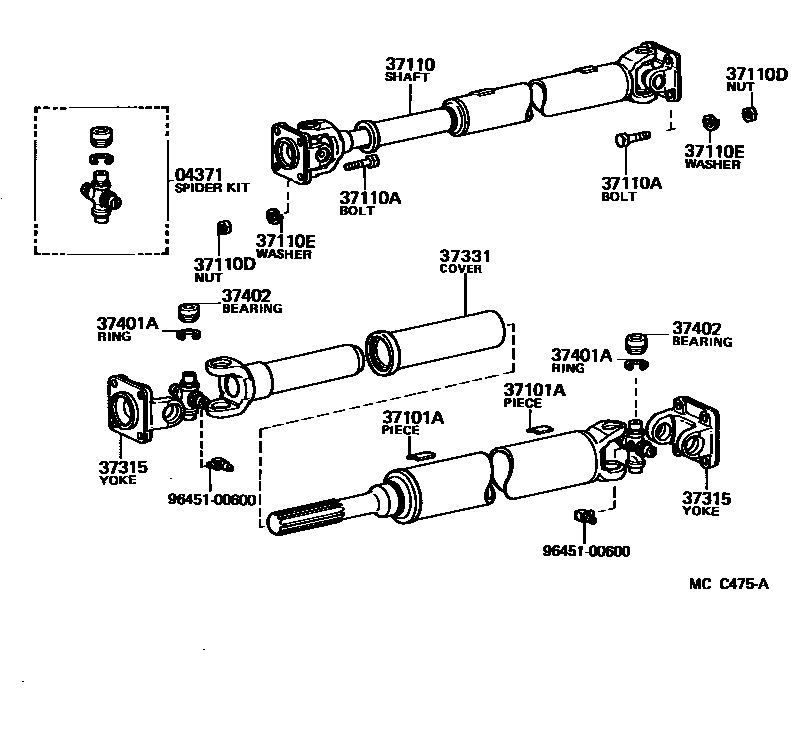

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-35030iLY60,YY5#,6#..ARL,GEN198508-198708

sub04371-35031

main04371-36030iLY60,YY61..EUR198508-198708

sub04371-60210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iLY60,YY5#,6#198508-198708

10G,L=20.7,10G,RR

main90937-01136iLY60,YY51,6#198508-198608

20G,L=41.4,20G,RR

main90937-01147iLY60,YY5#,6#198508-198708

2G,T=2.0,2G,RR

main90937-01148iLY60,YY5#,6#198508-198708

4G,T=2.0,4G,RR

main90937-01149iLY60,YY5#,6#198508-198708

6G,L=12.4,6G,RR

main90937-01150iLY60,YY5#,6#198508-198708

8G,L=16.6,8G,RR

main90937-01151iLY60,YY5#,6#198508-198708

12G,L=24.9,12G,RR

main90937-01152iLY60,YY5#,6#198508-198708

14G,L=29.0,14G,RR

main90937-01153iLY60,YY51,6#198508-198608

16G,L=33.2,16G,RR

main90937-01154iLY60,YY51,6#198508-198608

18G,L=37.3,18G,RR

main90937-01155iLY60,YY51,6#198508-198608

22G,L=45.6,22G,RR

main90937-01156iLY60,YY51,6#198508-198608

24G,L=49.7,24G,RR

main90937-01157iLY60,YY51,6#198508-198608

26G,L=53.9,26G,RR

main90937-01158iLY60,YY51,6#198508-198608

28G,L=58.1,28G,RR

main90937-01184iLY60,YY5#,6#..ARL,GEN198508-198708

4G,T=1.6,4G,FR

main90937-01191iLY60,YY5#,6#..ARL,GEN198508-198708

8G,T=1.6,8G,FR

main90937-01192iLY60,YY5#,6#..ARL,GEN198508-198708

12G,T=4.5,12G,FR

main90937-01193iLY60,YY5#,6#..ARL,GEN198508-198708

16G,T=4.5,16G,FR

main90937-01194iLY60,YY5#,6#..ARL,GEN198508-198708

20G,T=4.5,20G,FR

main90937-01198iLY60,YY51,6#198508-198608

24G,T=4.5,L=25.1,24G,FR

main90937-01199iLY60,YY51,6#198508-198608

28G,T=6,L=22.7,28G,FR

main90937-01200iLY60,YY51,6#198508-198608

32G,T=6,L=24.3,32G,FR

37110SHAFT ASSY, PROPELLER

main37110-25330iYY5#198508-198708

main37110-25340iLY60..ARL,GEN198508-198708

main37110-25350iLY60..EUR198508-198708

main37110-25360iYY6#..GEN198508-198708

main37110-25370iYY61..EUR198608-198708

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iLY60,YY5#,6#..ARL,GEN198508-198708

*10-1.00PX27-13

main90105-11013iLY60,YY61..EUR198508-198708

*11-1.00PX28-16

37110DNUT (FOR PROPELLER SHAFT)

main90179-10059iLY60,YY5#,6#..ARL,GEN198508-198708

main90179-11005iLY60,YY61..EUR198508-198708

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013iLY60,YY61..EUR198508-198708

main90204-10002iLY60,YY5#,6#..ARL,GEN198508-198708

sub90560-10H00

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iLY60,YY5#,6#..ARL,GEN198508-198708

main37315-36020iLY60,YY61..EUR198508-198708

sub37315-60090

37331COVER, SLIDING SHAFT DUST

main37305-35020iLY60,YY5#,6#..ARL,GEN198508-198708

main37305-36020iLY60,YY61..EUR198508-198708

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26233iLY60,YY5#,6#..ARL,GEN198508-198708

T=1.50,OD=32.4,T=1.50

main90520-26234iLY60,YY5#,6#..ARL,GEN198508-198708

T=1.55,T=1.55

main90520-26235iLY60,YY5#,6#..ARL,GEN198508-198708

T=1.60,T=1.60

main90520-29024iLY60,YY61..EUR198508-198708

T=2.00,NO MARK

main90520-29025iLY60,YY61..EUR198508-198708

T=2.03,BROWN

main90520-29026iLY60,YY61..EUR198508-198708

T=2.06,BLUE

main90520-29027iLY60,YY61..EUR198508-198708

T=2.09,NO MARK

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-30010iLY60,YY5#,6#..ARL,GEN198508-198708

sub37402-30011

sub90520-26044

main37402-30020iLY60,YY5#,6#..ARL,GEN198508-198708

RED PAINTED

sub37402-30021

sub90520-26044

main37402-36080iLY60,YY61..EUR198508-198708

9645100600

main96451-00600

11 parts on this diagram · 2 diagrams in section
