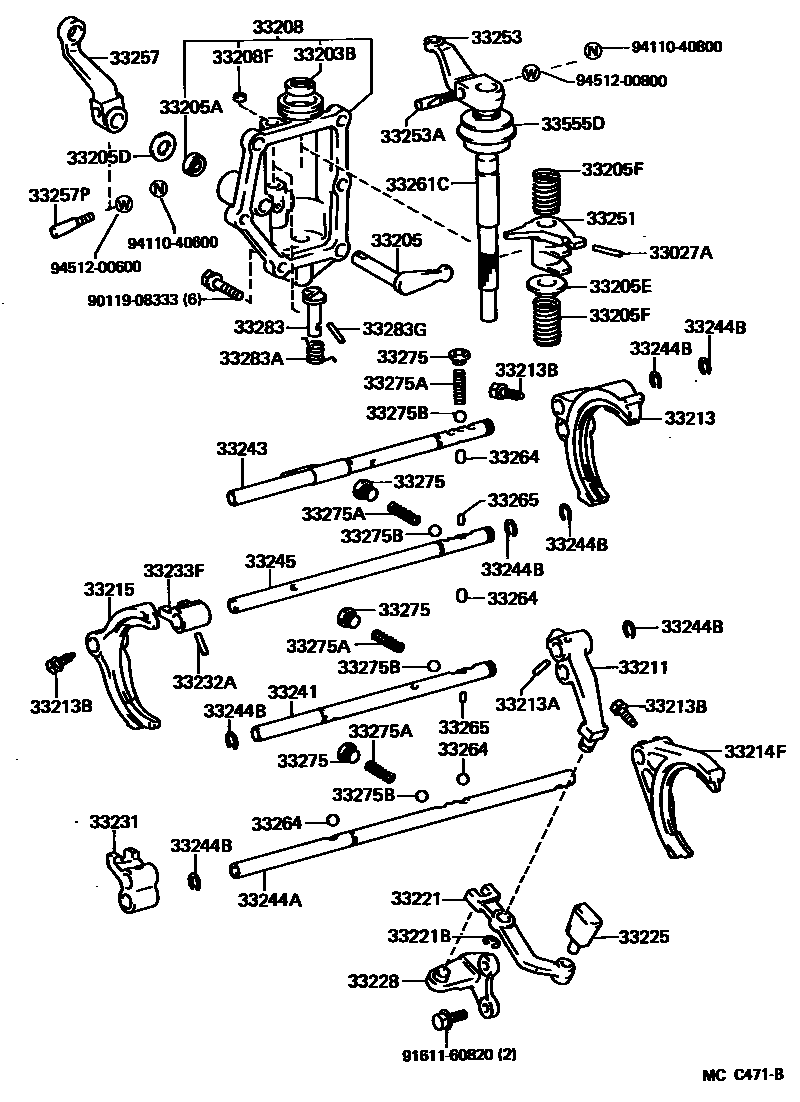

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33205ESEAT(FOR SELECT RETURN SPRING)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
UPR
LWR
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
sub33212-25011
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33214FFORK, 5TH SHIFT
33215FORK, 3RD & 4TH SHIFT
sub33213-25021
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33231HEAD, REVERSE SHIFT
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33244ASHAFT, 5TH SHIFT FORK
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245SHAFT, 3RD & 4TH SHIFT FORK
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
OD=9.52,STEEL,BALL
L=13.6,OD=9.5,PIN
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
L=11.5,OD=4.8
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=34.5
33275BBALL, SHAFT DETENT
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33555DBOOT, SHIFT LEVER
9011908333
main90119-08333
9161160820
main91611-60820
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
48 parts on this diagram · 1 diagram in section
