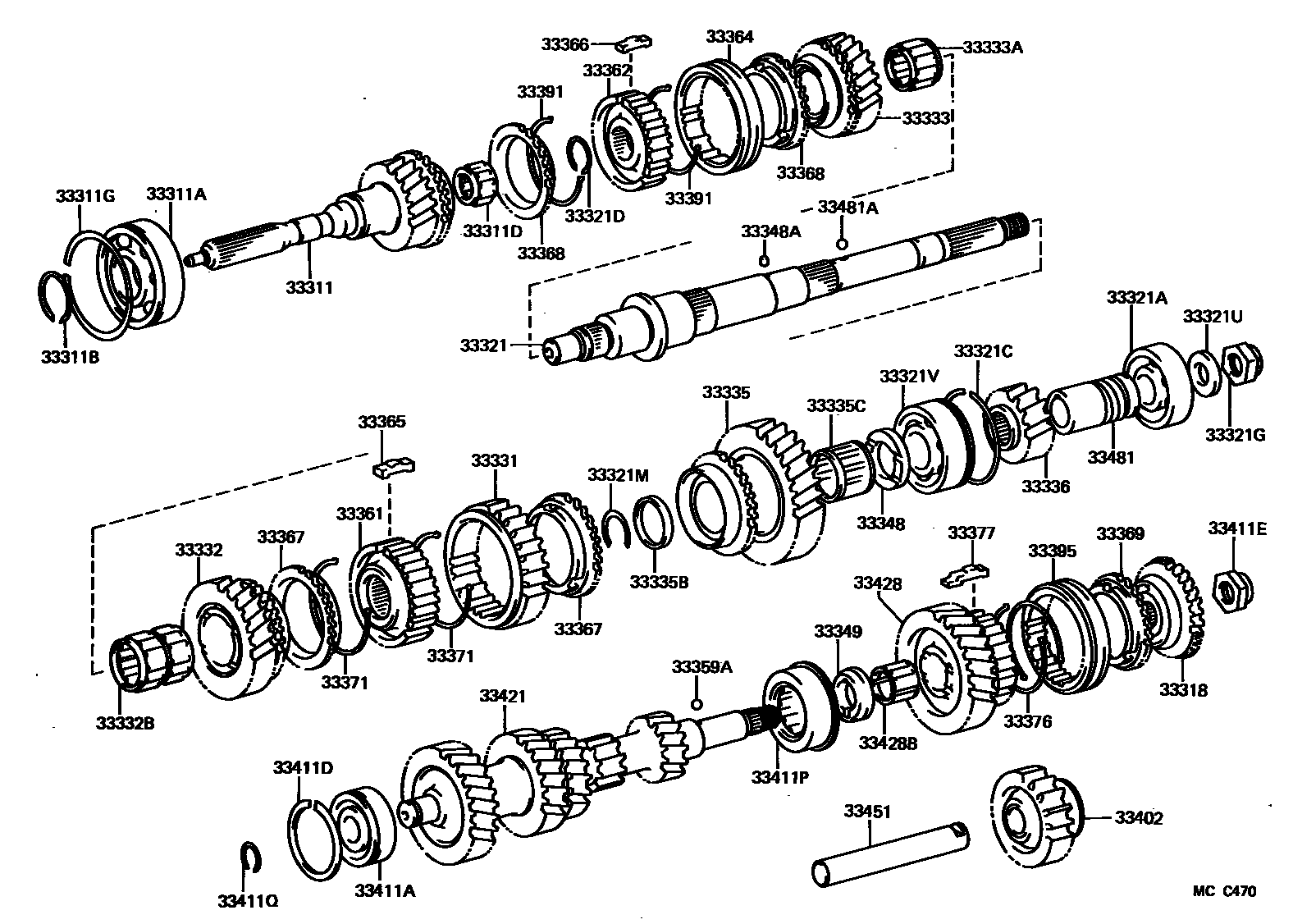

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A,T=2.1
T=2.15,MARK B,T=2.15
T=2.20,MARK C,T=2.2
T=2.25,MARK D,T=2.25
T=2.30,MARK E,T=2.3
T=2.35,MARK F,T=2.35
T=2.40,MARK G,T=2.4
33311DBEARING, INPUT SHAFT
sub90364-25012
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
sub33321-25050
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A,T=1.8
T=1.85,MARK B,T=1.85
T=1.90,MARK C,T=1.9
T=1.95,MARK D,T=1.95
T=2.00,MARK E,T=2.0
T=2.05,MARK F,T=2.05
T=2.10,MARK G,T=2.1
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A,T=2.3
T=2.35,MARK B,T=2.35
T=2.40,MARK C,T=2.4
T=2.45,MARK D,T=2.45
T=2.50,MARK E,T=2.5
T=2.55,MARK F,T=2.55
T=2.60,MARK G,T=2.6
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
sub90364-47014
33333GEAR, 3RD
sub33034-60110
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
sub33032-35041
33335BSPACER(FOR 1ST GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
sub90364-39016
33336GEAR, 5TH
sub33336-25021
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349WASHER, 5TH GEAR THRUST
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
sub33361-60020
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
sub33364-60030
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-60030
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=62
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.50-2.55,T=2.1
T=2.00,MARK A,T=2.0
T=2.05,MARK B,T=2.05
T=2.15,MARK D,T=2.15
T=2.20,MARK E,T=2.2
33421GEAR, COUNTER
sub33421-25031
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
sub33421-25041
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=9,MARK 9X33-35
N=10,MARK 10X34-36
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
52 parts on this diagram · 1 diagram in section
