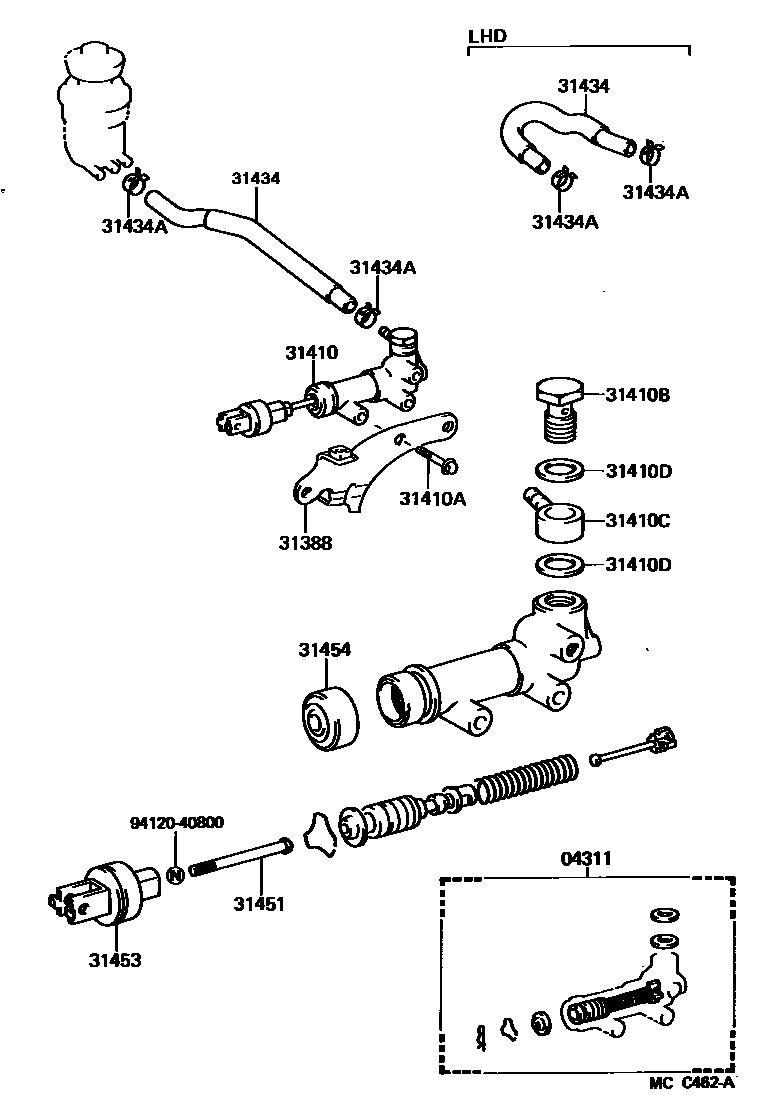

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-26030iLY60,YY5#,6#198508-198704

sub04311-26032

main04311-26031iLY60,YY52,6#198704-198708

sub04311-26033

31388SUPPORT, CLUTCH MASTER CYLINDER

main55165-95401iLY60,YY51,6#198508-198708

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26140iLY60,YY5#,6#198508-198704

sub31420-26141

main31420-26141iLY60,YY52,6#198704-198708

sub31420-26142

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iLY60,YY5#,6#198508-198708

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-16078iLY60,YY5#,6#198508-198708

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10125iLY60,YY5#,6#198508-198708

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-16242iLY60,YY5#,6#198508-198708

31434TUBE, CLUTCH RESERVOIR

main31434-36090iLY60,YY6#..RHD198508-198708

main31434-36100iLY60,YY5#,6#..LHD198508-198708

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLY60,YY5#,6#198508-198708

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iLY60,YY52,6#198611-198708

main31451-30060iLY60,YY5#,6#198508-198611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLY60,YY5#,6#198508-198708

sub31404-28012

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLY60,YY5#,6#198508-198708

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
