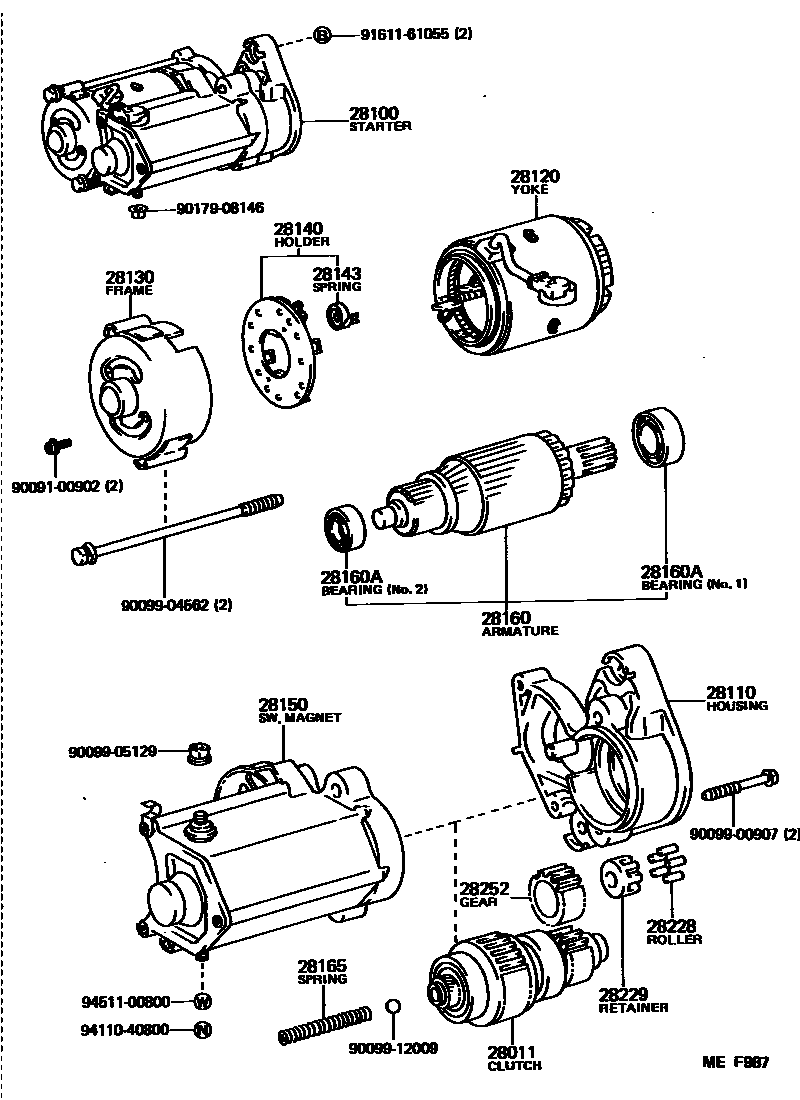

STARTER

0001 1 0002 1 0003 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main28011-54010i2L..LY60..EUR198508-198708

12V 2.5KW

main28011-54070i2L..LY60198508-198708

12V 2.0KW

28100STARTER ASSY

main28100-54061i2L..LY60..EUR198508-198708

12V 2.5KW,12V 2.5KW

sub28100-54220

main28100-54070i2L..LY60198508-198708

12V 2.0KW,12V 2.0KW

sub28100-54180

main28100-72010i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW,12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-72010i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main28115-54011i2L..LY60..EUR198508-198708

12V 2.5KW

main28115-54070i2L..LY60198508-198708

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-26071i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main28120-54070i2L..LY60198508-198708

12V 2.0KW

main28120-56081i2L..LY60..EUR198508-198708

12V 2.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-54060i2L..LY60..EUR198508-198708

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

main28130-72010i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main28140-54070i2L..LY60198508-198708

12V 2.0KW

main28140-77090i2L..LY60..EUR198508-198708

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112×4i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main90099-17115×4i2L..LY60198508-198708

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34080i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main28150-54011i2L..LY60..EUR198508-198708

12V 2.5KW

sub28150-54190

main28150-54070i2L..LY60198508-198708

12V 2.0KW

sub28150-54110

28160ARMATURE ASSY, STARTER

main28160-26070i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

sub28160-26071

main28160-47040i2L..LY60..EUR198508-198708

12V 2.5KW

sub28160-54140

main28160-54070i2L..LY60198508-198708

12V 2.0KW

sub28160-54071

28160ABEARING, STARTER ARMATURE

main28253-45020i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW,NO.2

main28253-54070i2L..LY60198508-198708

12V 2.0KW,NO.2

main90099-10107i2L..LY60..EUR198508-198708

12V 2.5KW,NO.1

main90099-10113i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW,NO.1

main90099-10119i2L..LY60..EUR198508-198708

12V 2.5KW,NO.2

main90099-10131i2L..LY60198508-198708

12V 2.0KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L,2Y,3Y..LY60,YY5#,6#198508-198708

12V 1.0KW,2.0KW

main28165-77090i2L..LY60..EUR198508-198708

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i2L,2Y,3Y..LY60,YY5#,6#198508-198708

12V 1.0KW,2.0KW

main28228-56080×5i2L..LY60..EUR198508-198708

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2L,2Y,3Y..LY60,YY5#,6#198508-198708

12V 1.0KW,2.0KW

main28229-56080i2L..LY60..EUR198508-198708

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i2Y,3Y..YY5#,6#198508-198708

12V 1.0KW

main28254-54070i2L..LY60198508-198708

12V 2.0KW

main28254-77090i2L..LY60..EUR198508-198708

12V 2.5KW

9009100902

main90091-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 3 diagrams in section
