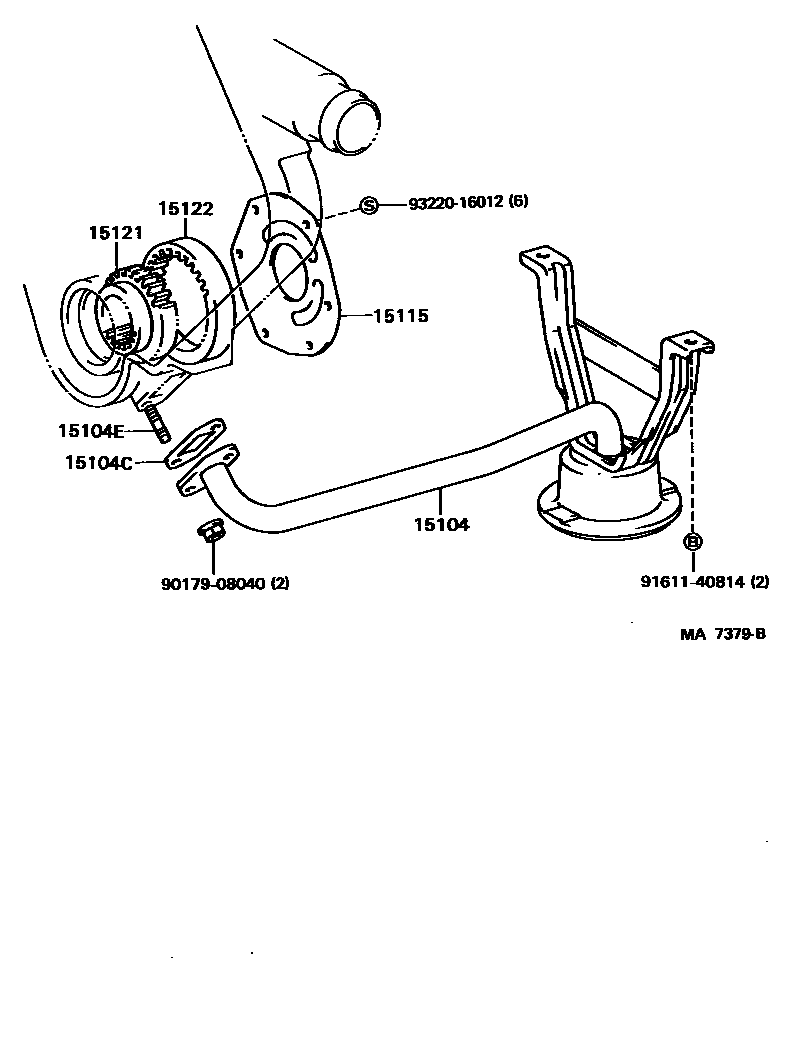

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-54022i2L..LY60198508-198510

main15104-54023i2L..LY60198510-198708

sub15104-54140

main15104-71010i2Y,3Y..YY5#,6#198508-198708

15104CGASKET(FOR OIL STRAINER)

main15149-54011i2L..LY60198508-198708

sub15149-54012

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816i2L..LY60198508-198708

15115COVER, OIL PUMP

main15115-54012i2L..LY60198508-198708

main15115-71015i2Y,3Y..YY5#,6#198508-198708

15121GEAR, OIL PUMP DRIVE

main15121-54010i2L..LY60198508-198708

15122GEAR, OIL PUMP DRIVEN

main15122-54010i2L..LY60198508-198708

9017908040

main90179-08040

9161140814

main91611-40814

9322016012

main93220-16012

9 parts on this diagram · 2 diagrams in section
