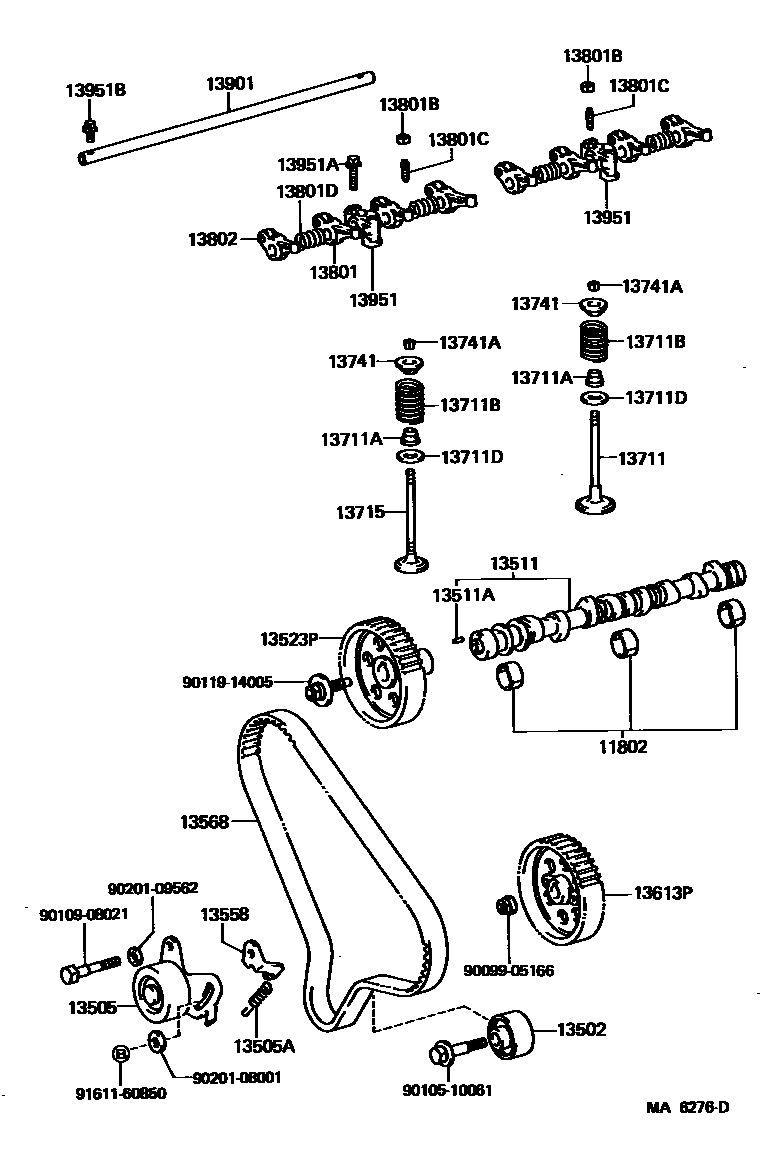

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-54010i2L..LY60198508-198708

STD,STD

main11802-71010i2Y,3Y..YY5#,6#198508-198708

STD

sub11802-73010

main11803-54010i2L..LY60198508-198708

U/S 0.125,U/S 0.125

main11804-54010i2L..LY60198508-198708

U/S 0.25,U/S 0.25

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54020i2L..LY60198508-198708

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010i2L..LY60198508-198708

13505ASPRING, TENSION(FOR IDLER)

main90506-14038i2L..LY60198508-198708

13511CAMSHAFT

main13501-54020i2L..LY60198508-198708

main13511-73900i2Y,3Y..YY5#,6#198508-198707

sub13511-73902

main13511-73902i2Y,3Y..YY52,6#198707-198708

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i2L..LY60198508-198708

L=15,OD=5

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i2Y,3Y..YY5#,6#198508-198708

13523PPULLEY, CAMSHAFT TIMING

main13523-54020i2L..LY60198508-198708

13558BRACKET, SPRING(FOR IDLER)

main13558-54010i2L..LY60198508-198708

13568BELT, TIMING

main13568-59025i2L..LY60198508-198708

sub13568-59026

13613PPULLEY, INJECTION PUMP DRIVE

main13603-54020i2L..LY60198508-198708

13711VALVE, INTAKE

main13711-54010i2L..LY60198508-198708

main13711-71010i2Y,3Y..YY5#,6#198508-198708

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02060i2L..LY60198508-198708

sub90913-02059

main90913-02065i2Y,3Y..YY5#,6#198508-198704

sub90913-02073

main90913-02073i2Y,3Y..YY52,6#198704-198708

sub90913-02080

13711BSPRING, COMPRESSION(FOR INNER)

main90501-44002i2L..LY60198508-198708

WD=4.35,CW=6.25

main90501-47005i2Y,3Y..YY5#,6#198508-198708

sub90501-46001

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-20579i2L..LY60198508-198708

main90201-21002i2Y,3Y..YY5#,6#198508-198708

13715VALVE, EXHAUST

main13715-54010i2L..LY60198508-198708

main13715-71010i2Y,3Y..YY5#,6#198508-198708

13741RETAINER, VALVE SPRING

main13740-43010i2Y,3Y..YY5#,6#198508-198708

EXHAUST

main13741-54010i2L..LY60198508-198708

main13741-63010i2Y,3Y..YY5#,6#198508-198708

INTAKE

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i2Y,3Y..YY5#,6#198508-198708

main90913-03016i2L..LY60198508-198708

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-54020i2L..LY60198508-198708

sub13801-54021

main13811-71010i2Y,3Y..YY5#,6#198508-198708

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08005i2L..LY60198508-198708

13801CSCREW, VALVE ADJUSTING

main90913-05019i2L..LY60198508-198708

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16068i2Y,3Y..YY5#,6#198508-198708

main90501-16163i2L..LY60198508-198708

WD=1.6,CW=7.5

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-54020i2L..LY60198508-198708

sub13802-54021

main13812-71010i2Y,3Y..YY5#,6#198508-198708

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-54010i2L..LY60198508-198708

main13901-71010i2Y,3Y..YY5#,6#198508-198708

13951SUPPORT, VALVE ROCKER, NO.1

main13951-54020i2L..LY60198508-198708

13951ABOLT(FOR ROCKER SUPPORT SET)

main90119-08191i2L..LY60198508-198708

*8-1.25PX55-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main91611-60620i2L..LY60198508-198708

9009905166

main90099-05166

9010510061

main90105-10061

9010908021

main90109-08021

9011914005

main90119-14005

9020108001

main90201-08001

9020109562

main90201-09562

9161160850

main91611-60850
