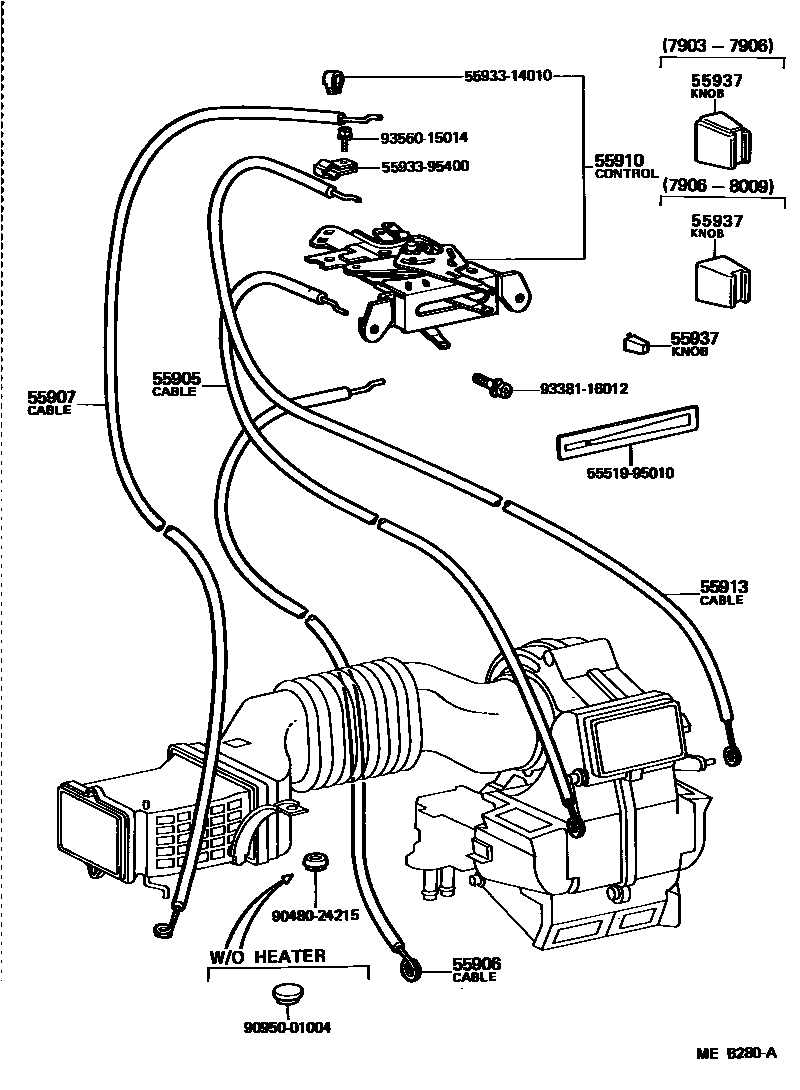

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-95012iJY30,LY20,3#,RY20,3#..RHD197903-198507

main55906-95013iJY30,RY20,3#..LHD197903-198507

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-95010iJY30,LY20,3#,RY20,3#197903-198507

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-95010iJY30,LY20,3#,RY20,3#197903-198507

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95011iJY30,LY20,30,RY20,3#..RHD197903-197906

main55910-95012iJY30,RY20,3#..LHD197903-197906

main55910-95013iJY30,LY20,3#,RY20,3#..RHD197906-198507

main55910-95014iJY30,RY20,3#..LHD197906-198507

55913CABLE SUB-ASSY, BOOST VENT CONTROL

main55909-95011iJY30,LY20,3#,RY20,3#197903-198507

sub55909-95400

55937KNOB, HEATER CONTROL LEVER

main55905-12070iJY30,LY20,3#,RY20,3#198009-198507

main55905-20120iJY30,LY20,30,RY20,3#197903-197906

main55905-20140iJY30,LY20,30,RY20,3#197906-198009

sub55905-12070

5551995010PLATE, HEATER CONTROL NAME

main55519-95010

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593395400GUIDE, LEVER, NO.2

main55933-95400

9048024215

main90480-24215

9095001004

main90950-01004

9338116012

main93381-16012

9356015014

main93560-15014

13 parts on this diagram · 2 diagrams in section
