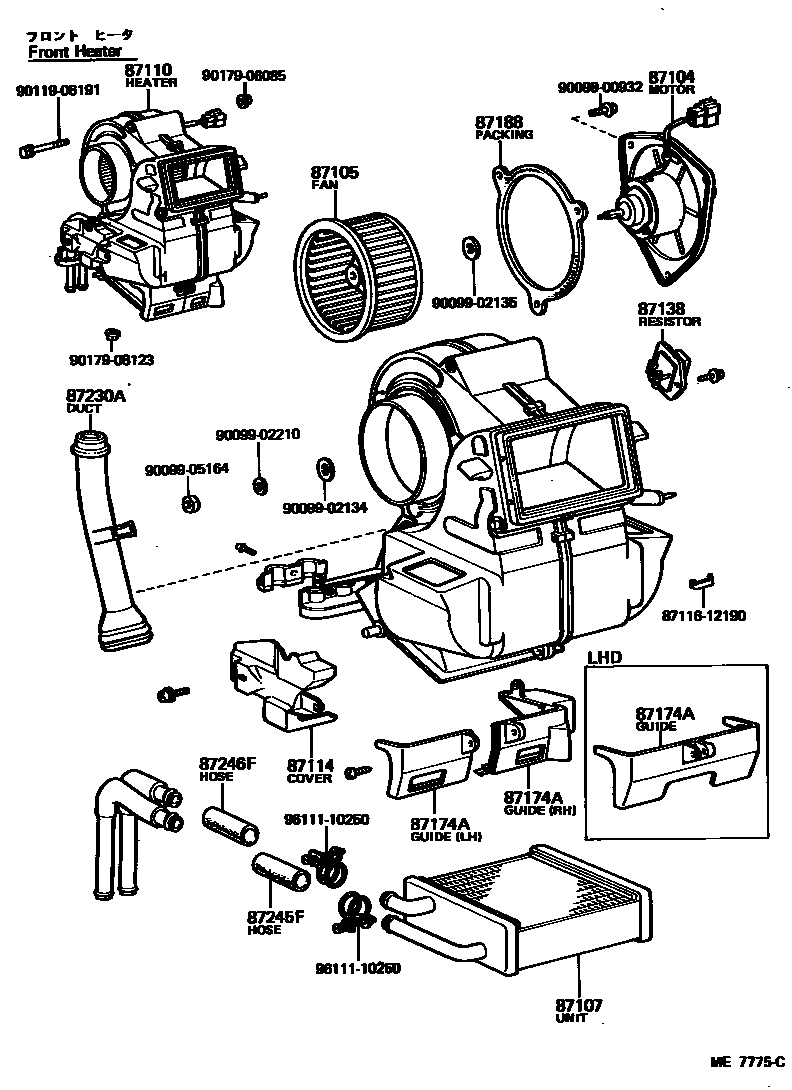

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95401iJY30,LY20,3#,RY20,3#..GEN197903-198507

sub87104-95A00

main87104-95403iLY3#,RY31..ARL198005-198507

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12030iJY30,LY20,3#,RY20,3#..RHD197903-198507

main87105-12040iJY30,RY20,3#..LHD197903-198507

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95400iJY30,LY20,3#,RY20,3#197903-198507

sub87107-95401

87110HEATER ASSY

main87110-95010iJY30,LY20,3#,RY20,3#..RHD..GEN197903-198507

main87110-95014iJY30,RY20,3#..LHD197903-198507

main87110-95022iRY31..ARL198005-198201

main87110-95024iLY3#,RY31..ARL198201-198507

87114COVER, HEATER

main87173-12030iJY30,LY20,3#,RY20,3#197903-198507

87138RESISTOR, HEATER BLOWER

main87138-87003iJY30,LY20,3#,RY20,3#..GEN197903-198507

main87138-87004iLY3#,RY31..ARL198005-198507

87174AGUIDE, AIR HEATER

main87174-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

RH

main87174-95400iJY30,RY20,3#..LHD197903-198507

main87175-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

LH

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iJY30,LY20,3#,RY20,3#197903-198507

87230ADUCT ASSY, HEATER AIR

main87212-95010iLY3#,RY31..ARL198201-198507

87245FHOSE, HEATER WATER, INLET F

main99552-30100iJY30,LY20,3#,RY20,3#197903-198507

*H,L=45

sub99556-30100

87246FHOSE, HEATER WATER, OUTLET F

main99552-30100iJY30,LY20,3#,RY20,3#197903-198507

*H,L=45

sub99556-30100

8711612190SPRING, HEATER CASE FASTENING

main87116-12190

9009900932

main90099-00932

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9009905164

main90099-05164

9011906191

main90119-06191

9017906085

main90179-06085

9017908123

main90179-08123

9611110250

main96111-10250

21 parts on this diagram · 1 diagram in section
