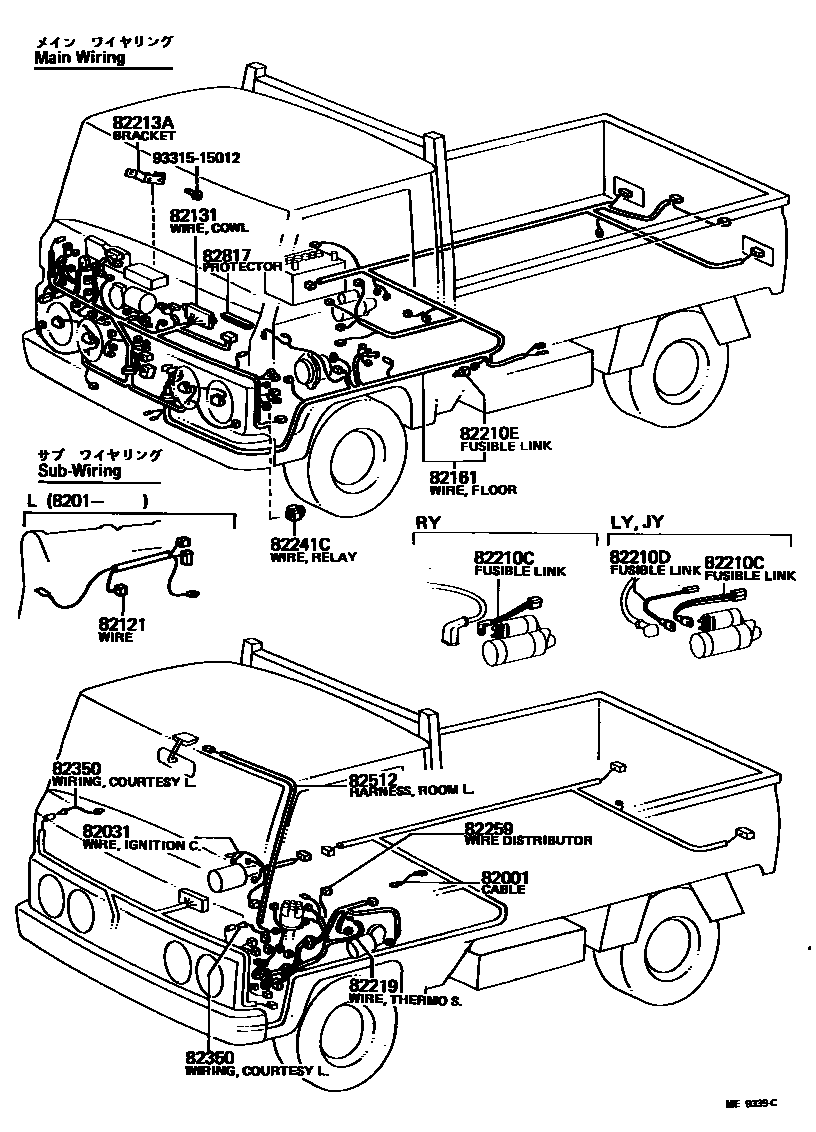

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07021iRY31198201-198507

CARBURETOR-CANISTER

main90980-07143iJY30,RY20,3#197903-198507

82031WIRE SUB-ASSY, IGNITION COIL

main82505-95011iRY20,30..RHD197903-198202

HONG KONG SPEC

main82505-95012iRY20,3#..LHD197903-198507

main82505-95014iRY20,30..RHD197903-198507

main82505-95015iRY31..RHD197903-198201

82121WIRE, ENGINE

main82121-95013iLY3#198201-198507

82131WIRE, COWL

main82131-95019iRY20,30..RHD198201-198308

main82131-95020iRY20,3#..LHD198201-198308

main82131-95021iRY31..ARL198201-198308

main82131-95022iLY30..GEN198201-198308

main82131-95023iJY30..T1198201-198308

main82131-95024iJY30..T3198201-198308

main82131-95026iLY30..ARL198201-198308

main82131-95032iRY20,30..RHD198308-198507

main82131-95033iRY31198308-198507

main82131-95034iLY31..GEN198308-198507

main82131-95035iLY31..ARL198308-198507

main82131-95037iRY20,30..LHD198308-198507

main82210-95072iRY20,3#..LHD197903-198201

main82210-95073iLY20,30197903-198201

main82210-95074iJY30..LHD197903-198004

main82210-95075iRY20,3#..RHD197903-198201

main82210-95079iJY30..RHD197903-198004

main82210-95086iRY31..ARL198005-198201

main82210-95089iJY30..LHD198004-198201

main82270-95012iJY30..RHD198004-198201

82161WIRE, FLOOR

main82161-95010iRY20..RHD198201-198507

main82161-95024iRY30..RHD198201-198308

main82161-95025iRY20..LHD198201-198507

main82161-95026iRY30..LHD198201-198507

main82161-95027iRY31..ARL198201-198507

main82161-95028iRY31..GEN198201-198308

main82161-95029iJY30..T3198201-198308

main82161-95030iLY30198201-198308

main82161-95032iJY30..T1198201-198308

main82161-95037iLY31198308-198507

main82161-95062iRY30..WT198409-198507

main82410-95026iRY20..RHD197903-197912

main82410-95027iRY30..RHD197903-197912

main82410-95028iLY20197903-198201

main82410-95029iLY30197903-198201

main82410-95030iJY30..RHD197903-198004

main82410-95031iRY31..LHD197903-198201

main82410-95032iRY30..LHD197903-197912

main82410-95033iRY20..LHD197903-197912

main82410-95034iJY30..LHD197903-198004

main82410-95038iRY30..RHD197903-197912

HONG KONG SPEC

main82410-95039iRY31..RHD..GEN197903-198201

main82410-95041iRY20..RHD197912-198201

main82410-95042iRY30..RHD197912-198201

main82410-95044iRY30..RHD197912-198201

HONG KONG SPEC

main82410-95045iRY30..LHD197912-198201

main82410-95046iRY20..LHD197912-198201

main82410-95047iRY31..ARL198005-198201

main82410-95050iJY30..RHD198004-198010

main82410-95051iJY30..LHD198004-198010

main82410-95052iJY30..RHD198010-198201

main82410-95053iJY30..LHD198010-198201

82210CFUSIBLE LINK

main90982-08058iRY20,3#197903-198507

L=110,0.85R,0.5G

main90982-08058iLY20,3#198008-198507

L=110,0.85R,0.5G,12V 2.0KW STARTER

main90982-08098iJY30,LY20,30197903-198308

12V 2.5KW STARTER

82210DFUSIBLE LINK

main90982-08153iLY20,3#198008-198507

12V 2.0KW STARTER

82210EFUSIBLE LINK

main90982-08121iJY30198004-198507

82213ABRACKET, HARNESS CONNECTOR

main82213-95010iJY30,LY3#,RY20,3#..RHD198201-198507

82219WIRE, THERMO SENSOR

main82402-95010iLY20,30197903-198201

82241CWIRE, RELAY

main82241-22060iJY30,LY20,30,RY20,3#..GEN197903-198007

82259WIRE, DISTRIBUTOR

main82437-95010iRY20,30..RHD197903-197912

HONG KONG SPEC

82350WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)

main82432-95400iJY30,LY20,30,RY20,3#197903-198201

82512HARNESS ASSY, ROOM LAMP SUB WIRE

main82171-95010iLY30,RY30..125198201-198308

main82171-95012iLY31,RY30..125198308-198507

main82510-95011iRY30..125197903-198201

main82510-95403iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

82817PROTECTOR, WIRING HARNESS, NO.1

main83712-95010iJY30,LY20,3#,RY20,3#197903-198507

sub74671-95405

9331515012

main93315-15012

16 parts on this diagram · 5 diagrams in section
