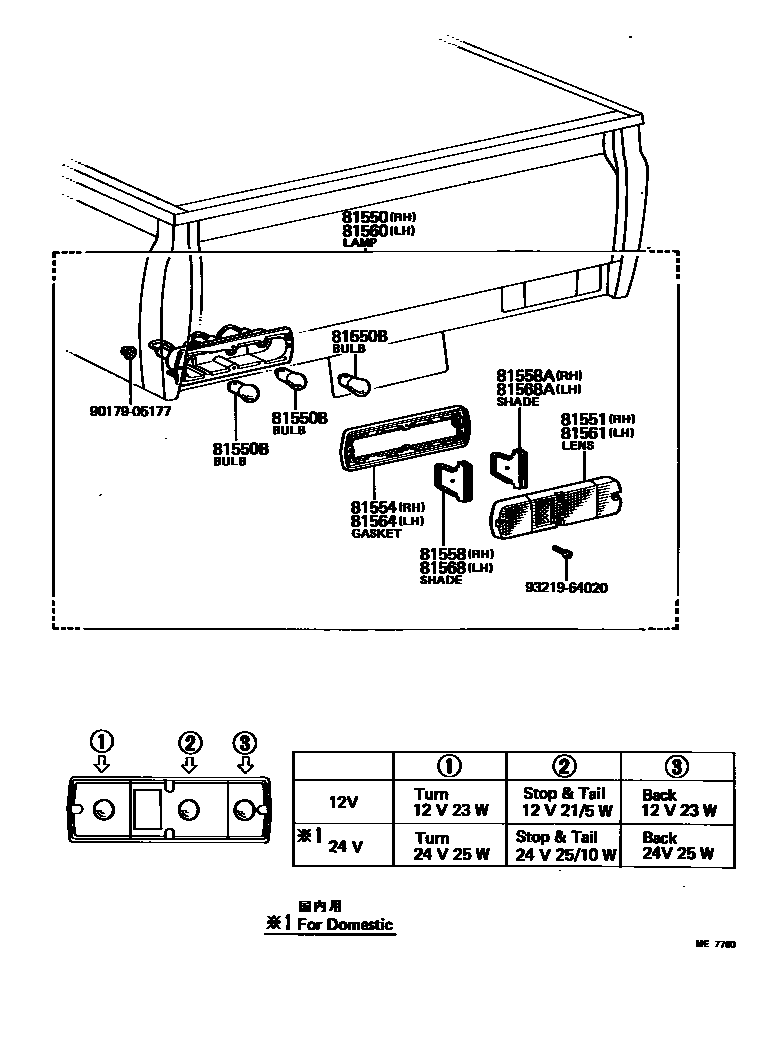

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29925iJY30,LY20,3#,RY20,3#197903-198507

sub81550-95010

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230iJY30,LY20,3#,RY20,3#197903-198507

12V 23W,12V 23W

main99132-21210iJY30,LY20,3#,RY20,3#197903-198507

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iJY30,LY20,3#,RY20,3#197903-198507

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iJY30,LY20,3#,RY20,3#197903-198507

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iJY30,LY20,3#,RY20,3#197903-198507

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iJY30,LY20,3#,RY20,3#197903-198507

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80019iJY30,LY20,3#,RY20,3#197903-198507

sub81560-95010

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iJY30,LY20,3#,RY20,3#197903-198507

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iJY30,LY20,3#,RY20,3#197903-198507

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iJY30,LY20,3#,RY20,3#197903-198507

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iJY30,LY20,3#,RY20,3#197903-198507

9017905177

main90179-05177

9321964020

main93219-64020

13 parts on this diagram · 1 diagram in section
