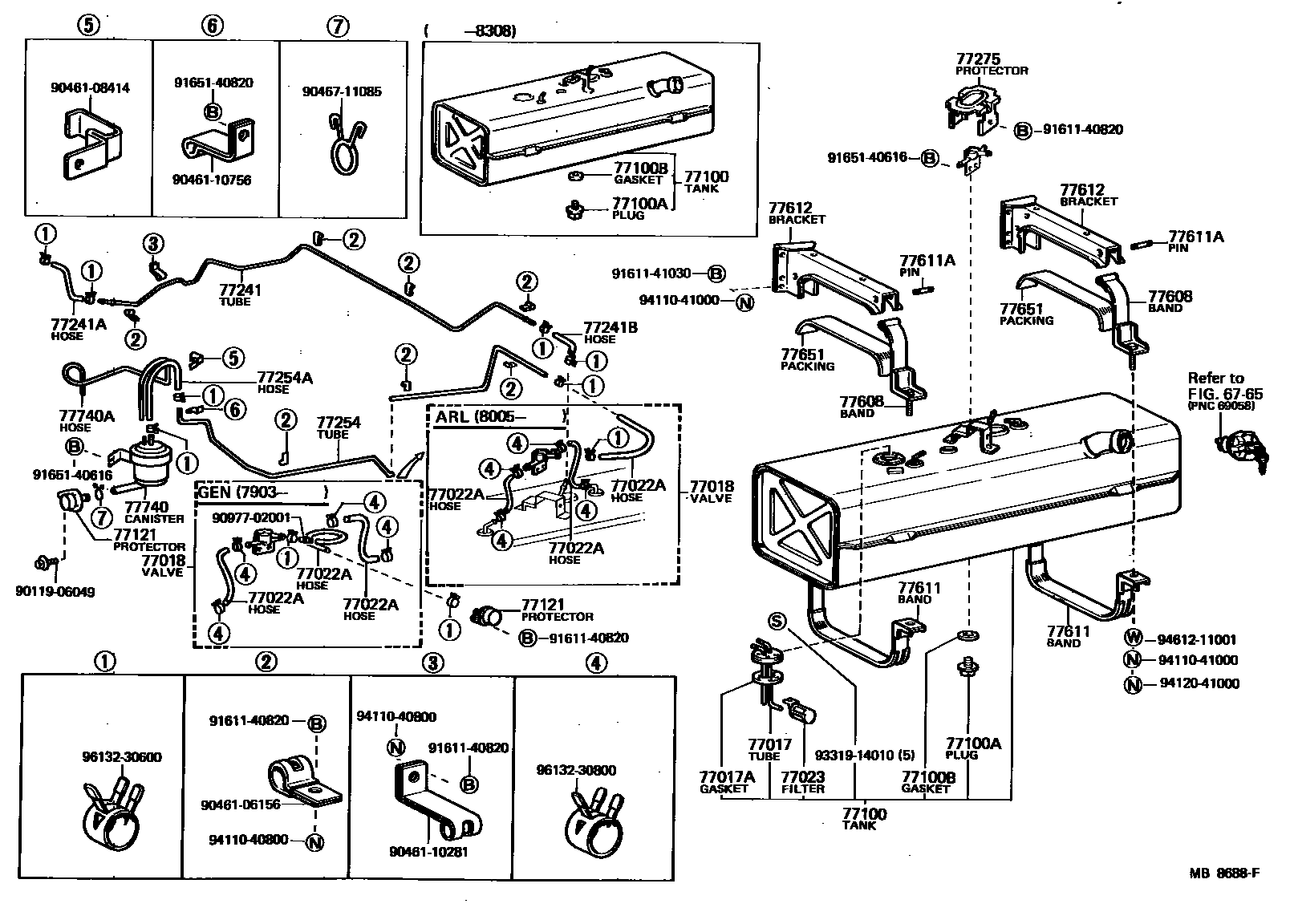

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

6765

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-25010iRY20,30198308-198507

main77017-25020iLY31198308-198507

77017AGASKET, FUEL TANK VENT

main77169-14020iLY31,RY20,30198308-198507

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25080iLY20,30,RY20,3#..(125,15T)..GEN197903-198507

sub77018-60010

main77018-36051iRY31..ARL198005-198507

sub77018-60012

main77018-36061iJY30,RY31..20T..GEN197903-198308

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06030iLY20,30,RY20,3#..125,15T197903-198507

L=300(*H,L=260)

sub95333-06030

main95332-06040iJY30,RY31..20T197903-198507

L=400(*H,L=340)

sub95333-06040

main95332-08020iJY30,LY20,3#,RY20,3#197903-198507

L=200(*H,L=170)

sub95333-08020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iLY31198308-198507

77100TANK ASSY, FUEL

main77001-25130iRY20,3#..125,15T197903-198308

sub77001-25210

main77001-25140iLY20,30197903-197909

sub77001-25141

main77001-25141iLY20,30197909-198308

sub77001-25190

main77001-25150iJY30197903-198308

main77001-25160iRY31..20T197903-198507

main77001-25190iLY31198308-198507

main77001-25210iRY20,30198308-198507

77100APLUG(FOR FUEL TANK)

main90105-12018iJY30,LY20,3#,RY20,3#197903-198507

77100BGASKET(FOR FUEL TANK)

main90430-12245iJY30,LY20,3#,RY20,3#197903-198507

77121PROTECTOR, FUEL TUBE

main77243-36010iLY30..ARL197903-198507

main77258-36010iRY31..ARL198005-198507

77241TUBE, FUEL MAIN, NO.1

main77251-25100iRY20;RY30..125197903-198507

main77251-25110iRY3#..15T197903-198507

main77251-25120iLY3#..15T197903-198507

main77251-25130iJY30197903-198002

main77251-25131iJY30198002-198308

main77251-25140iRY31..20T197903-198002

main77251-25141iRY31..20T198002-198005

main77251-25142iRY31..20T198005-198507

main77251-25150iLY20197903-198507

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iRY20,3#..125,15T198001-198507

L=200(*H,L=190)

sub95333-06020

main95332-06020iRY20,3#..125,15T197903-198001

L=200(*H,L=180)

sub95333-06020

main95332-06020iRY31..20T197903-198507

L=200(*H,L=170)

sub95333-06020

main95332-08040iLY20,30197903-198308

L=400(*H,L=340)

sub95333-08040

main95332-08060iLY31198308-198507

L=600(*H,L=420)

sub95333-08060

main95332-10017iJY30197903-198308

L=200(*H,L=170)

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iRY31..20T197903-198507

L=200(*H,L=120)

sub95333-06020

main95332-06020iRY31..20T197903-198507

L=200(*H,L=180)

sub95333-06020

main95332-08020iLY20,3#197903-198507

L=200(*H,L=120)

sub95333-08020

main95332-10020iJY30197903-198308

L=200

77254TUBE, FUEL EMISSION, NO.1

main77263-25021iRY31..15T..ARL198005-198201

main77263-25030iRY31..20T..ARL198005-198507

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06040iRY31..ARL198005-198507

L=400(*H,L=360)

sub95333-06040

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-36010iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T3197903-198507

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77603-25010iJY30,LY3#,RY20,3#198201-198507

main77603-26011iJY30,LY20,30,RY20,3#197903-198201

sub77603-25010

77611BAND, FUEL TANK

main77601-25090iJY30,LY20,3#,RY20,3#197903-198507

77611APIN (FOR FUEL TANK BAND)

main77629-25010iJY30,LY20,3#,RY20,3#197903-198507

77612BRACKET SUB-ASSY, FUEL TANK

main77501-25010iLY20,RY20197903-198507

FR

main77501-25020iLY3#,RY30..125197903-198507

FR

main77501-25030iJY30,RY31..20T197903-198507

FR

main77502-25010iJY30,LY20,3#,RY20,3#197903-198507

FR

main77502-25010iJY30,LY20,3#,RY20,3#197903-198507

RR

77651PACKING, FUEL TANK BRACKET

main77651-25040iJY30,LY20,30,RY20,3#197903-198201

main77651-25050iJY30,LY3#,RY20,3#198201-198507

sub77651-26040

77740CANISTER ASSY, CHARCOAL

main77740-25030iRY31..ARL198005-198507

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19995iRY31..ARL198005-198507

*H,L=700,MARK=#*

sub90999-92004

9011906049

main90119-06049

9046106156

main90461-06156

9046108414

main90461-08414

9046110281

main90461-10281

9046110756

main90461-10756

9046711085

main90467-11085

9097702001

main90977-02001

9161140820

main91611-40820

9161141030

main91611-41030

9165140616

main91651-40616

9165140820

main91651-40820

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800

41 parts on this diagram · 4 diagrams in section
