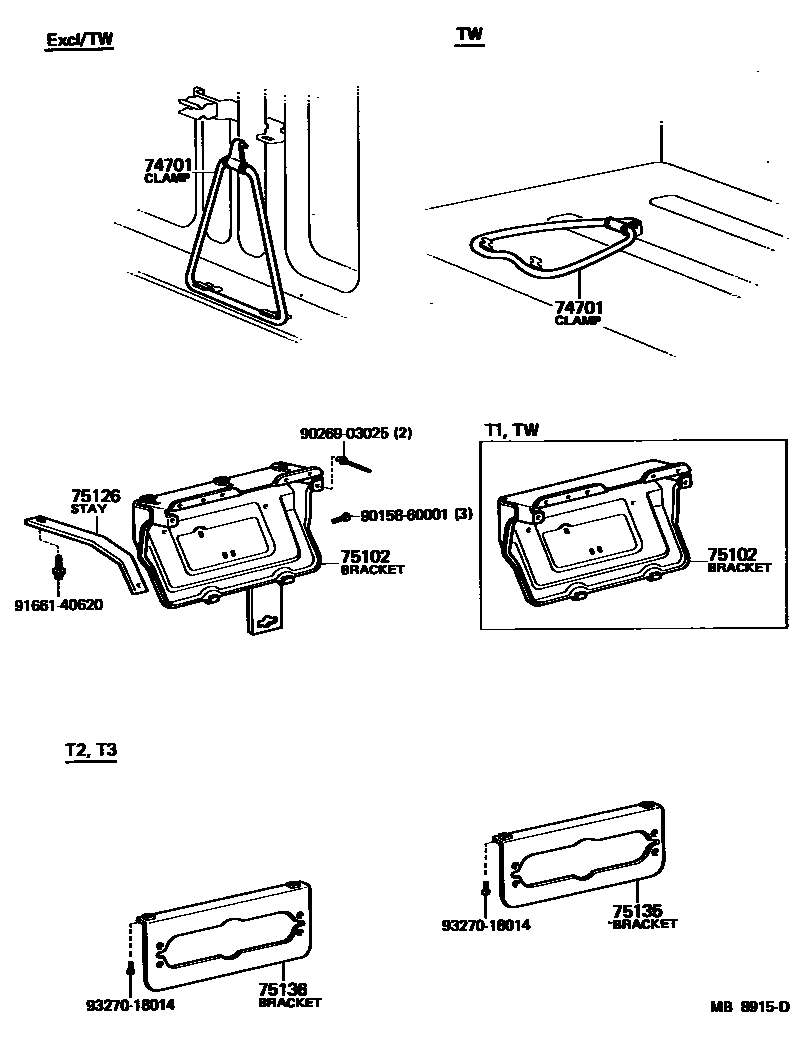

TOOL BOX & LICENSE PLATE BRACKET

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iJY30,LY20,3#,RY20,3#197903-198507

sub58705-95701

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95019iLY20..CBU;RY20,3#..T1,T2,TW;JY30,LY30..(T1,TW)..(125,20T)197903-198507

sub66490-25030

main66490-95020iJY30,RY31..T3..20T197903-198507

main66490-95021iLY20..IV;LY3#..15T;RY20,3#..T3..15T197903-198507

main66490-95022iLY31..CBU..ARL198308-198507

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95017iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

sub66407-25050

main66407-95019iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T3197903-198507

main66407-95020iRY30..WT198409-198507

75135BRACKET, COMBINATION REAR LAMP, RH

main75135-95012iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3197903-198507

75136BRACKET, COMBINATION REAR LAMP, LH

main75135-95012iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3197903-198507

9015860001

main90158-60001

9026903025

main90269-03025

9166140620

main91661-40620

9327018014

main93270-18014

9 parts on this diagram · 1 diagram in section
