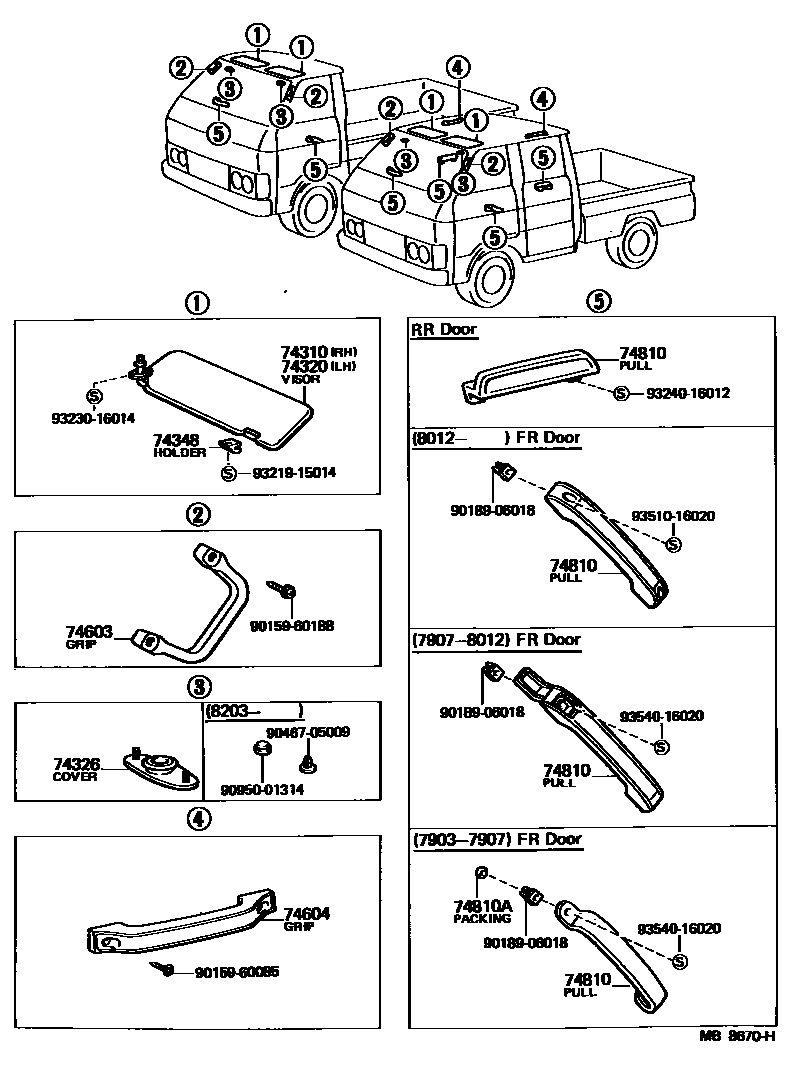

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-95019iJY30,LY20,30,RY20,3#..GEN197903-198201

main74310-95020iRY31..ARL198005-198201

main74310-95022iJY30,LY3#,RY20,3#..GEN198201-198507

main74310-95023iJY30,LY30,RY20,30..RHD..GEN198201-198308

W/HOLDER

main74310-95024iLY3#,RY31..ARL198201-198507

74320VISOR ASSY, LH

main74310-95019iJY30,LY20,30,RY20,3#..GEN197903-198201

main74310-95020iRY31..ARL198005-198201

main74310-95022iJY30,LY3#,RY20,3#..GEN198201-198507

main74310-95023iJY30,RY20,3#..LHD198201-198507

W/HOLDER

main74310-95024iLY3#,RY31..ARL198201-198507

74326COVER, VISOR HOLE

main74325-95010iJY30,LY20,3#,RY20,3#..GEN197903-198507

74348HOLDER, VISOR

main74348-95010×2iJY30,LY20,30,RY20,3#197903-198201

main74348-95700×2iJY30,LY3#,RY20,3#198201-198507

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-95400×2iJY30,LY20,30,RY20,3#197903-198212

main74610-95401×2iJY30,LY3#,RY20,3#198212-198507

74604GRIP SUB-ASSY, ASSIST, REAR

main74611-95A00×2iRY30..125198201-198308

sub74603-95701

sub74617-16010

74810PULL ASSY, DOOR, INSIDE

main69151-95700×2iJY30,LY20,30,RY20,3#197907-198012

FR DOOR

main69151-95A00×2iLY3#,RY30..125197903-198507

RR DOOR

sub69151-95600

main69285-95403-06×2iJY30,LY20,3#,RY20,3#198012-198507

FR DOOR,BROWN,BROWN

sub69285-95404

main74810-95010×2iJY30,LY20,30,RY20,3#197903-197907

FR DOOR

74810APACKING, DOOR INSIDE PULL HANDLE

main58644-95A00×4iJY30,LY20,30,RY20,3#197903-197904

9015960085

main90159-60085

9015960188

main90159-60188

9018906018

main90189-06018

9046705009

main90467-05009

9095001314

main90950-01314

9321915014

main93219-15014

9323016014

main93230-16014

9324016012

main93240-16012

9351016020

main93510-16020

9354016020

main93540-16020

18 parts on this diagram · 1 diagram in section
