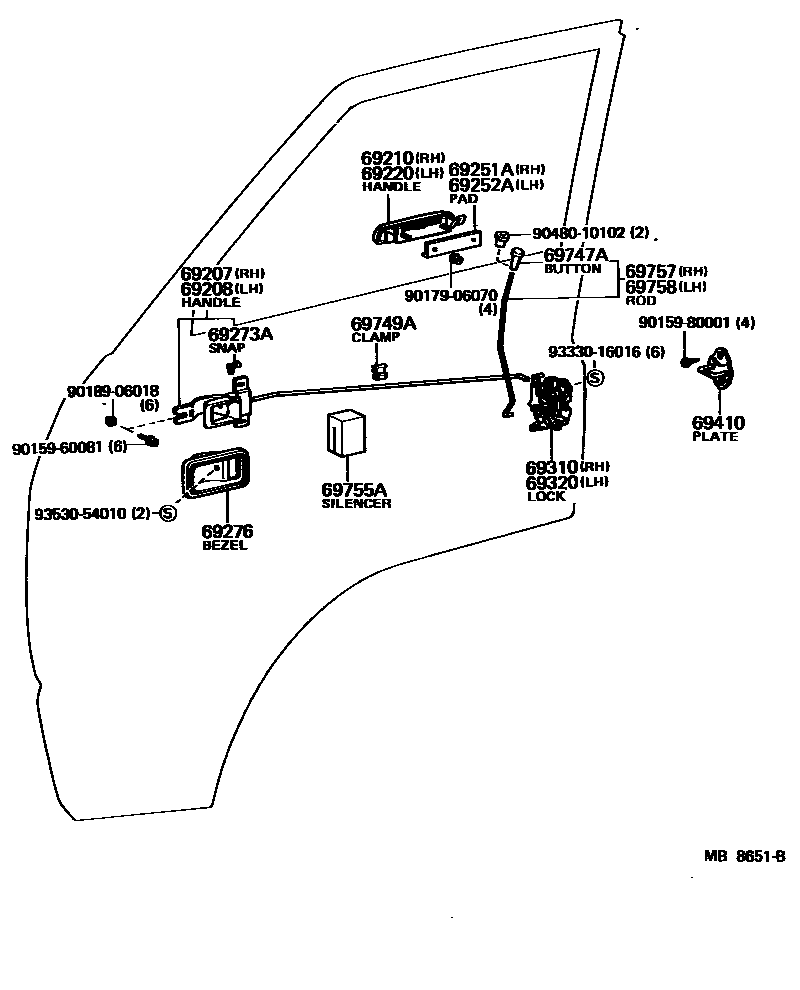

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69710-95014iJY30,LY20,3#,RY20,3#197903-198507

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69720-95014iJY30,LY20,3#,RY20,3#197903-198507

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95011iJY30,LY20,3#,RY20,3#197903-198507

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95011iJY30,LY20,3#,RY20,3#197903-198507

69251APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH

main69241-95010iJY30,LY20,3#,RY20,3#197903-198507

69252APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH

main69241-95010iJY30,LY20,3#,RY20,3#197903-198507

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69279-12010×2iJY30,LY20,3#,RY20,3#197903-198507

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-95A00×2iJY30,LY20,3#,RY20,3#197903-198507

sub69276-10012

69310LOCK ASSY, FRONT DOOR, RH

main69310-95013iJY30,LY20,3#,RY20,3#197903-198507

69320LOCK ASSY, FRONT DOOR, LH

main69320-95015iJY30,LY20,3#,RY20,3#197903-198507

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020×2iJY30,LY20,3#,RY20,3#197903-198507

sub69410-89103

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69747-20020-16×2iJY30,LY20,3#,RY20,3#197903-198507

BROWN,BROWN

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010×2iJY30,LY20,30,RY20,3#197903-198208

main69749-30020×2iJY30,LY3#,RY20,3#198208-198507

69755ASILENCER, FRONT DOOR LOCK LINK

main69759-95500×2iJY30,LY20,3#,RY20,3#197903-198507

69757ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH

main69705-95011iJY30,LY20,3#,RY20,3#197903-198507

69758ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH

main69706-95010iJY30,LY20,3#,RY20,3#197903-198507

9015960081

main90159-60081

9015980001

main90159-80001

9017906070

main90179-06070

9018906018

main90189-06018

9048010102

main90480-10102

9333016016

main93330-16016

9353054010

main93530-54010

23 parts on this diagram · 1 diagram in section
