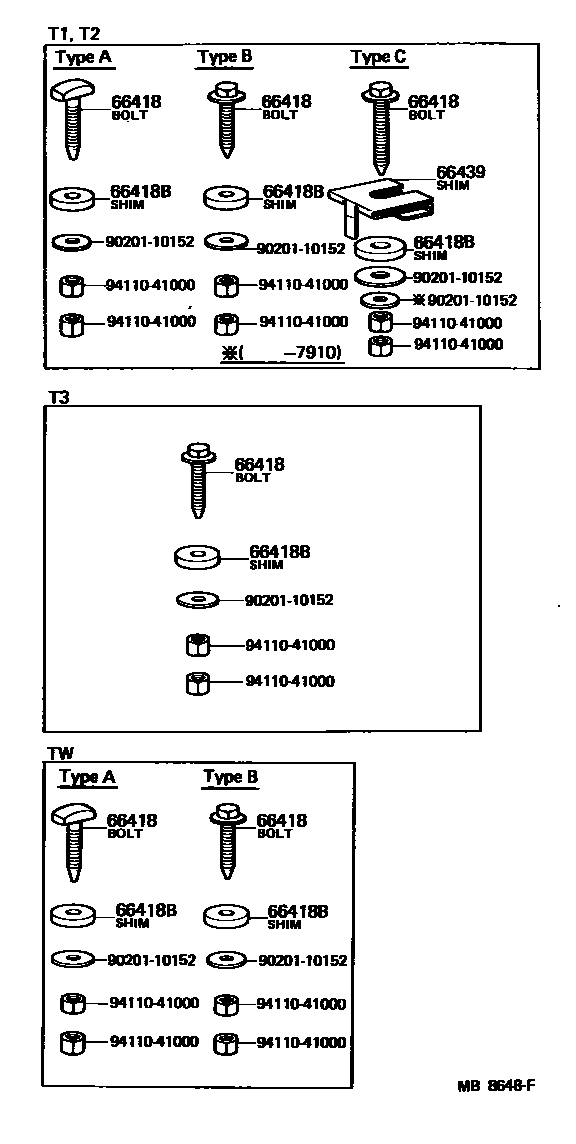

REAR BODY MOUNTING

66418BOLT, MOUNTING

main66418-95400iLY20..CBU;RY20,3#..T1,T2,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

TYPE A

main90119-10004iRY20..T1;LY20..CBU197903-198507

TYPE B

sub90119-10091

main90119-10004iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T3197903-198507

sub90119-10091

main90119-10091iLY20..CBU;JY30,RY20,3#..T1,T2197903-198507

TYPE C

66418BSHIM, MOUNTING

main66442-95017iLY20..CBU;JY30,RY20,3#..T1197903-197912

TYPE C

main90564-12001iLY20..CBU;JY30,RY20,3#..T1,TW197903-198410

TYPE A & B

sub90564-12013

main90564-12013iLY31,RY30..125198410-198507

TYPE A & B

66439SHIM, SUPPORT

main66439-95400iLY20..CBU;JY30,RY20,3#..T1197903-198507

TYPE C

9020110152

main90201-10152

9411041000

main94110-41000

5 parts on this diagram · 1 diagram in section
