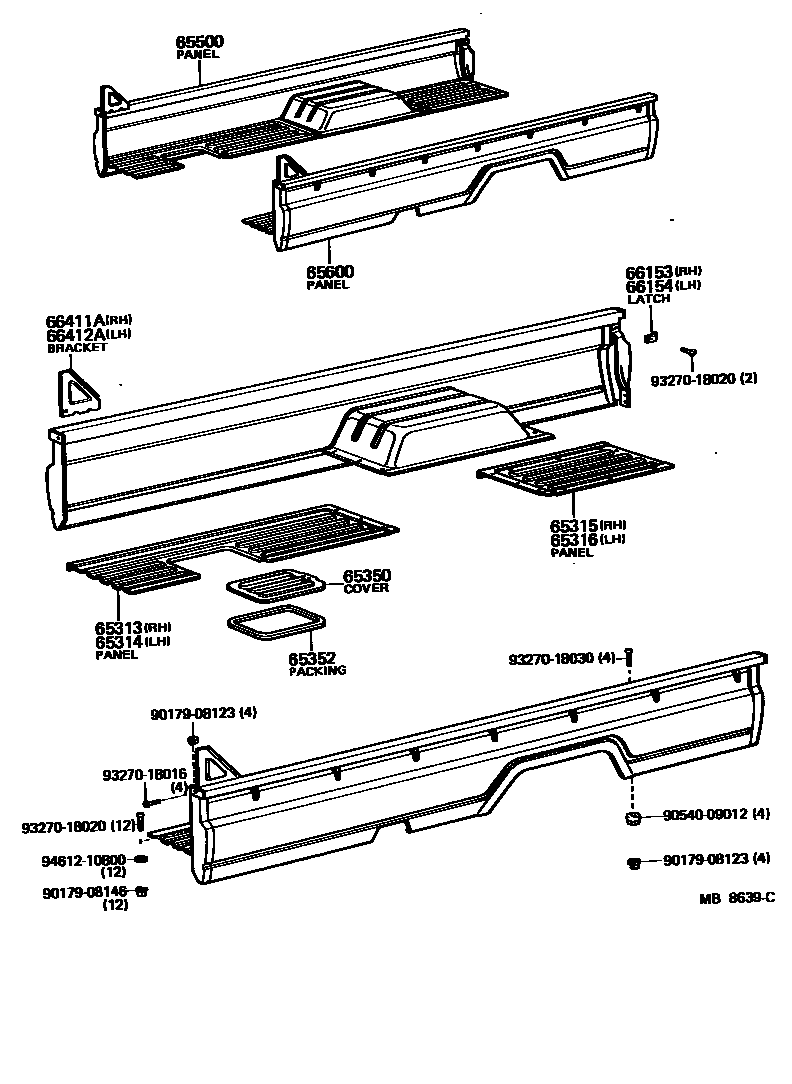

REAR BODY SIDE PANEL

0001 1 0002 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95021iJY30,RY3#..T1197903-198507

main65313-95022iRY20..T1;LY20..CBU197903-198308

main65313-95405iLY3#,RY30..125197903-198507

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95021iJY30,RY3#..T1197903-198507

main65314-95022iRY20..T1;LY20..CBU197903-198308

sub65314-25020

main65314-95404iLY3#,RY30..125197903-198507

65315PANEL, FLOOR REAR CORNER, RH

main65315-95405iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-95405iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

sub65316-25010

65350COVER ASSY, BATTERY SERVICE HOLE

main65305-95402iLY20..CBU;RY20,3#..T1,TW;JY30,LY30..(T1,TW)..(125,20T)197903-198507

65352PACKING, BATTERY SERVICE HOLE COVER

main65307-95A01iLY20..CBU;RY20,3#..T1,TW;JY30,LY30..(T1,TW)..(125,20T)198005-198209

main65352-95400iLY20..CBU;JY30,RY20,3#..T1,TW197903-198005

sub65307-95A01

main65352-95A01iJY30,LY30,RY20,3#..T1,TW198209-198507

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-95038iLY20..IV;RY20..T3197903-198201

main65500-95039iLY30;JY30,RY3#..T3197903-198201

main65500-95040iRY20..T1;LY20..CBU197903-198201

sub65500-95059

main65500-95042iJY30,RY3#..T1197903-198201

sub65500-95060

main65500-95043iRY30..125197903-198201

sub65500-95062

main65500-95055iRY20..T3198201-198507

sub65500-95068

main65500-95057iJY30,LY3#,RY3#..T2,T3198201-198507

sub65500-95069

main65500-95059iRY20..T1198201-198308

main65500-95060iRY3#..T1198201-198507

main65500-95062iLY3#,RY30..125198201-198507

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-95038iJY30,RY31..T1..20T197903-198201

sub65600-95062

main65600-95039iLY20..IV;RY20..T3197903-198201

main65600-95040iLY30;JY30,RY3#..T3197903-198201

main65600-95041iRY20..T1;LY20..CBU197903-198201

sub65600-95060

main65600-95043iRY3#..T1..15T197903-198201

sub65600-95061

main65600-95044iRY30..125197903-198201

sub65600-95064

main65600-95056iRY20..T3198201-198507

sub65600-95070

main65600-95058iJY30,LY3#,RY3#..T2,T3198201-198507

sub65600-95071

main65600-95060iRY20..T1198201-198308

main65600-95061iRY30..T1198201-198507

main65600-95062iJY30,RY31..T1198201-198308

main65600-95064iLY3#,RY30..125198201-198507

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

66411ABRACKET,GUARD FRAME, RH

main66411-95018iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198408

66412ABRACKET,GUARD FRAME, LH

main66412-95017iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198408

9017908123

main90179-08123

9017908146

main90179-08146

9054009012

main90540-09012

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

19 parts on this diagram · 2 diagrams in section
