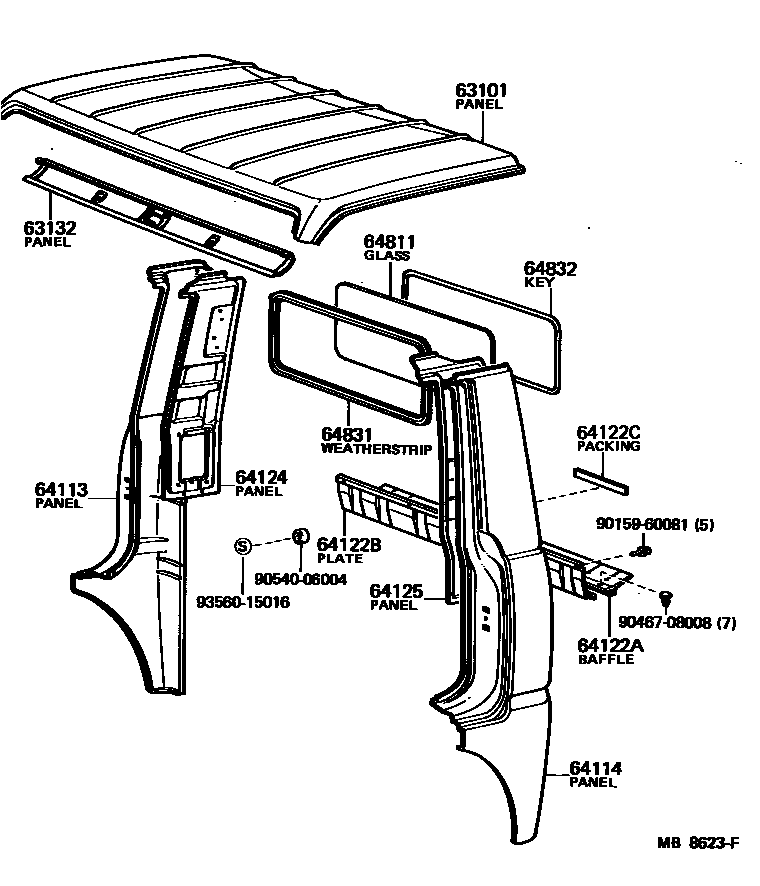

ROOF PANEL & BACK PANEL

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63111-95014iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main63111-95015iLY3#,RY30..125197903-198507

63132PANEL, WINDSHIELD HEADER, INNER

main63103-95011iJY30,LY20,30,RY20,3#197903-198201

sub63103-95014

sub74348-95700

main63103-95012iJY30,LY20,30,RY20,3#..RHD197903-198201

W/(VISOR=DRIVER SIDE ONLY)

sub63103-95015

sub74348-95700

main63103-95013iJY30,RY20,3#..LHD197903-198201

W/(VISOR=DRIVER SIDE ONLY)

sub63103-95016

sub74348-95700

main63103-95014iJY30,LY3#,RY20,3#198201-198507

main63103-95015iJY30,LY30,RY20,30..RHD..GEN198201-198507

W/(VISOR=DRIVER SIDE ONLY)

sub63103-95014

sub90467-05009

sub90950-01314

main63103-95016iJY30,RY20,3#..LHD198201-198203

W/(VISOR=DRIVER SIDE ONLY)

sub63103-95014

sub90467-05009

sub90950-01314

64113PANEL, BACK CORNER, OUTER RH

main64103-95012iJY30,LY20,3#,RY20,3#..(15T,20T)..GEN197903-198507

main64103-95013iLY3#,RY30..125197903-198507

main64103-95014iLY31,RY31..IV..ARL198005-198507

64114PANEL, BACK CORNER, OUTER LH

main64104-95012iJY30,LY20,3#,RY20,3#..(15T,20T)..GEN197903-198507

main64104-95013iLY3#,RY30..125197903-198507

main64104-95014iLY31,RY31..IV..ARL198005-198507

64122ABAFFLE, DUST REAR BODY

main64122-95015iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main64122-95017iRY30..125197903-198201

main64122-95018iLY3#,RY30..125198201-198507

64122BPLATE, BAFFLE DUST REAR BODY

main64127-95011iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

64122CPACKING, FRAME BACK

main53781-95011iJY30197909-198308

sub53879-95010

64124PANEL, BACK CORNER, INSIDE, RH

main64107-95013iJY30,LY20,3#,RY20,3#..(15T,20T)..GEN197903-198507

main64107-95015iLY31,RY31..IV..ARL197903-198507

main64107-95016iRY31..ARL198005-198507

main64107-95018iLY3#..CBU..ARL198201-198507

64125PANEL, BACK CORNER, INSIDE, LH

main64108-95014iJY30,LY20,3#,RY20,3#..(15T,20T)..GEN197903-198507

main64108-95016iRY30..125197903-198507

main64108-95020iLY31,RY31..IV..ARL198005-198507

main64108-95022iLY3#..CBU..ARL198201-198507

64811GLASS, BACK WINDOW

main64811-95015iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

*TEM,T=4.0

main64811-95016iLY3#,RY30..125197903-198507

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main64831-95016iLY3#,RY30..125197903-198507

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

sub64832-95013

main64832-95013iLY3#,RY30..125197903-198507

sub64832-37040

9015960081

main90159-60081

9046708008

main90467-08008

9054006004

main90540-06004

9356015016

main93560-15016

16 parts on this diagram · 2 diagrams in section
