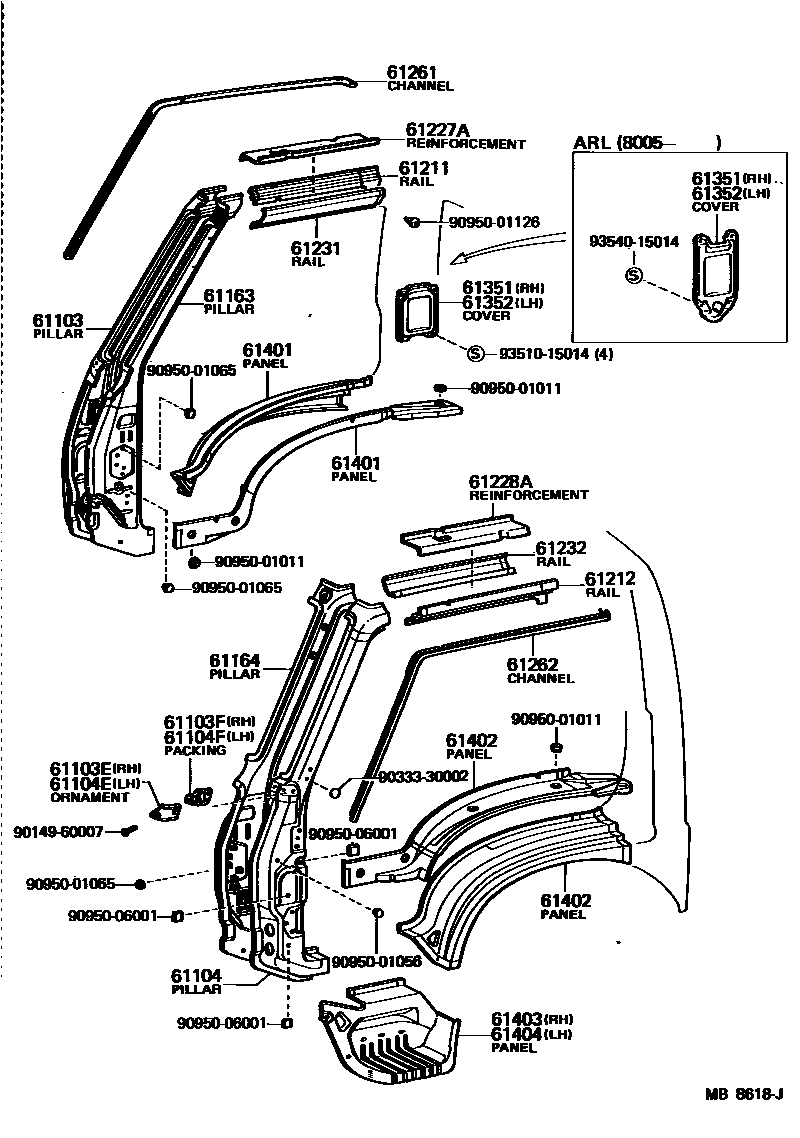

SIDE MEMBER

0001 1 0002 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61103-95012iJY30,LY20,30,RY20,3#..RHD197903-198201

W/RADIO

sub61103-95018

sub82301-95A10

sub84230-22050

sub90201-10041

main61103-95013iJY30,RY20,3#..LHD197903-198201

sub61103-95020

sub82301-95A10

sub84230-22050

sub90201-10041

main61103-95014iJY30,LY20,30,RY20,3#..RHD197903-198201

W/O RADIO

sub61103-95019

sub82301-95A10

sub84230-22050

sub90201-10041

main61103-95018iJY30,LY3#,RY20,3#..RHD198201-198507

W/RADIO

sub61103-95021

main61103-95019iJY30,LY3#,RY20,3#..RHD198201-198507

W/O RADIO

sub61103-95022

main61103-95020iJY30,RY20,3#..LHD198201-198507

61103EORNAMENT, FRONT PILLAR, RH

main87921-95020iJY30,LY20,3#,RY20,3#..RHD197903-198507

61103FPACKING, FRONT PILLAR ORNAMENT, RH

main87926-95014iJY30,LY20,3#,RY20,3#..RHD197903-198507

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61104-95013iJY30,LY20,30,RY20,3#..RHD197903-198201

sub61104-95019

sub82301-95A10

sub84230-22050

sub90201-10041

main61104-95014iJY30,RY20,3#..LHD197903-198201

W/RADIO

sub61104-95022

sub82301-95A10

sub84230-22050

sub90201-10041

main61104-95016iJY30,RY20,3#..LHD197903-198201

W/O RADIO

sub61104-95019

sub82301-95A10

sub84230-22050

sub90201-10041

main61104-95019iJY30,LY30,RY20,3#198201-198308

sub61104-95028

main61104-95019iRY20,30..LHD198308-198507

W/O RADIO

sub61104-95028

main61104-95022iJY30,RY20,3#..LHD198201-198507

W/RADIO

main61104-95028iLY31,RY20,31..RHD198308-198507

61104EORNAMENT, FRONT PILLAR, LH

main87922-95020iLY31,RY31..IV197903-198507

61104FPACKING, FRONT PILLAR ORNAMENT, LH

main87926-95013iJY30,RY20,3#..LHD197903-198507

61163PILLAR, FRONT BODY, INNER RH

main61105-95015iJY30,RY20,3#..LHD197903-198201

sub61105-95028

main61105-95016iRY20,3#..RHD..GEN197903-198201

sub61105-95023

sub90950-01065

main61105-95019iLY20,30197903-198201

sub61105-95026

sub91661-40612

main61105-95020iJY30..RHD197903-198201

sub61105-95025

sub90950-01065

sub91661-40612

main61105-95022iRY31..ARL198005-198201

sub61105-95029

main61105-95023iRY20,30..RHD198201-198507

main61105-95025iJY30..T1198201-198308

sub61105-95030

main61105-95026iLY3#198201-198507

main61105-95028iJY30,RY20,3#..LHD198201-198507

main61105-95029iRY31..ARL198201-198308

sub61105-95031

main61105-95031iRY31198308-198507

61164PILLAR, FRONT BODY, INNER LH

main61106-95016iJY30,LY20,30,RY20,3#..RHD197903-198201

sub61106-95028

main61106-95017iRY20,3#..LHD197903-198201

sub61106-95025

main61106-95022iJY30..LHD197903-198201

sub61106-95027

main61106-95024iJY30,LY3#,RY20,30..RHD..GEN198201-198507

main61106-95025iRY20,3#..LHD198201-198308

sub61106-95030

main61106-95026iLY3#,RY31..ARL198201-198507

main61106-95027iJY30..T3198201-198308

main61106-95030iRY20,30..LHD198308-198507

61211RAIL, ROOF SIDE, OUTER RH

main61211-95015iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main61211-95016iLY3#,RY30..125197903-198507

FR

main61215-95011iLY3#,RY30..125197903-198507

RR

61212RAIL, ROOF SIDE, OUTER LH

main61212-95016iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main61212-95017iLY3#,RY30..125197903-198507

FR

main61216-95011iLY3#,RY30..125197903-198507

RR

61227AREINFORCEMENT, RAIL ROOF SIDE, RH

main61227-95010iLY31,RY31..IV..ARL198005-198507

61228AREINFORCEMENT, RAIL ROOF SIDE, LH

main61228-95010iLY31,RY31..IV..ARL198005-198507

61231RAIL, ROOF SIDE, INNER RH

main61231-95010iJY30,LY20,3#,RY20,3#197903-198507

61232RAIL, ROOF SIDE, INNER LH

main61232-95010iJY30,LY20,3#,RY20,3#197903-198507

61261CHANNEL, ROOF DRIP, RH

main61261-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main61261-95011iLY3#,RY30..125197903-198507

61262CHANNEL, ROOF DRIP, LH

main61262-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main61262-95011iLY3#,RY30..125197903-198507

61351COVER, CENTER BODY, INNER RH

main61351-95010iJY30,LY20,3#,RY20,3#..(15T,20T)..GEN197903-198507

main61351-95014iLY3#,RY31..IV..ARL198005-198507

main61351-95015iRY30..125198201-198507

main61351-95400iRY30..125197903-198201

main61359-95010iLY3#..CBU..ARL198201-198507

61352COVER, CENTER BODY, INNER, LH

main61351-95010iJY30,LY20,3#,RY20,3#..(15T,20T)..GEN197903-198507

main61351-95014iLY3#,RY31..IV..ARL198005-198507

main61351-95015iRY30..125198201-198507

main61351-95400iRY30..125197903-198201

main61359-95010iLY3#..CBU..ARL198201-198507

61401PANEL SUB-ASSY, FENDER, RH

main61023-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

INNER

main61023-95011iLY3#,RY30..125197903-198507

INNER

main61411-95010iJY30,LY20,3#,RY20,3#197903-198507

OUTER

61402PANEL SUB-ASSY, FENDER, LH

main61024-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

INNER

main61024-95011iLY3#,RY30..125197903-198507

INNER

main61412-95010iJY30,LY20,3#,RY20,3#197903-198507

OUTER

61403PANEL SUB-ASSY, FRONT STEP, RH

main61403-95010iJY30,LY20,3#,RY20,3#197903-198507

61404PANEL SUB-ASSY, FRONT STEP, LH

main61404-95010iJY30,LY20,3#,RY20,3#197903-198507

9014960007

main90149-60007

9033330002

main90333-30002

9095001011

main90950-01011

9095001056

main90950-01056

9095001065

main90950-01065

9095001126

main90950-01126

9095006001

main90950-06001

9351015014

main93510-15014

9354015014

main93540-15014

31 parts on this diagram · 2 diagrams in section
